HN4 Series Two Door Floormount Enclosures - NEMA 4
Continuous Hinge, 3pt Handle |
| << Product Information << Industrial Enclosures << |
|
| Application |
|
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
|
| Construction |
|
- Formed 12 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Lifting eyes provide for easy enclosure handling.
- Doors are supported with heavy gauge continuous hinges.
- New 3-pt padlocking door handle.
- Seamless poured-in place gasket.
- Provision for light kit mounting.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- Center post is removable for easy installation of the inner panel.
- 12” floor stands are welded to the enclosure.
- Body stiffeners are provided in the larger enclosures for extra rigidity.
- Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
- A removable 10 gauge inner panel is included.
- Panel supports are provided for easy panel installation.
- Collar studs are provided for mounting inner panels.
- A literature pocket is provided for the inside of the door.
|
| Standards |
|
- UL 508 Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- Complies with:
- NEMA Type 3R, 4, 12 and 3
- IEC 60529, IP66
|
| Finish |
|
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- Removable white inner panel is finished in white powder coating.
|
| Accessories |
|
|
| |
|
| Back to Top |
|
 |
| |

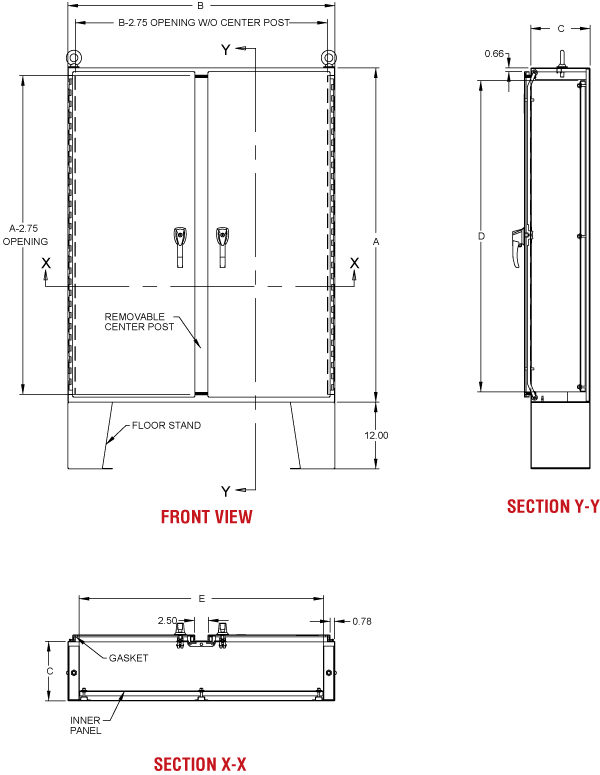

| Part No. |
Overall |
Inner Panel
(Included) |
| A |
B |
C |
D |
E |
| HN4FM604810 |
60.13 |
48.06 |
10.69 |
56 |
44 |
| HN4FM606012 |
60.13 |
60.06 |
12.69 |
56 |
56 |
| HN4FM726012 |
72.13 |
60.06 |
12.69 |
68 |
56 |
| HN4FM727212 |
72.13 |
72.06 |
12.69 |
68 |
68 |
| HN4FM727224 |
72.13 |
72.06 |
24.69 |
68 |
68 |
|
| |
|
