Eclipse Junior Series — NEMA 12, 13, 4
Single Door Enclosures |
| << Product Information << Industrial Enclosures << |
|
| Application |
|
- Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Impressive styling features make the Eclipse Junior a suitable addition to any high—tech equipment installation.
- For high temperature applications, a gasket retainer may be required, please refer to factory.
|
| |
| Standards |
- UL 508 Type 3R, 4, 12 and 13
- CSA Type 3R, 4, 12 and 13
- Complies with
- NEMA Type 3R, 4, 12 and 13
|
| |
| Construction |
- Body and cover are formed from 16 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts, or holes.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- 14 gauge welded brackets provide for enclosure mounting.
- Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- Quarter turn latches formed from black zinc diecast.
- Oil resistant gaskets are permanently secured.
- Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- Includes grounding kit and a hardware kit with panel mounting screws.
|
| |
| Finish |
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- Inner panels are unpainted galvanized steel.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
Click on a Part Number to download the Zipped DXF

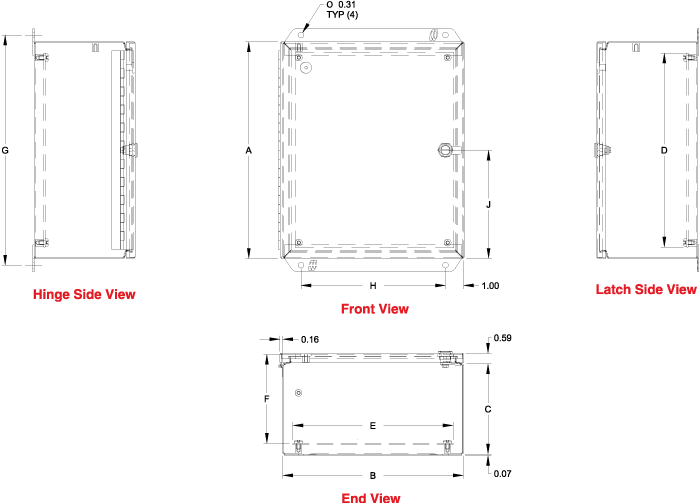

| Part No. |
Overall Dimensions |
|
Panel Size |
|
Ship Wt.
(lbs) |
| A |
B |
C |
H |
G |
D |
E |
J |
F |
| EJ443 |
4.0 |
4.0 |
3.0 |
2.00 |
4.75 |
— |
— |
2.00 |
— |
2 |
| EJ643 |
6.0 |
4.0 |
3.0 |
2.00 |
6.75 |
4.88 |
2.88 |
3.00 |
2.92 |
2 |
| EJ683 |
6.0 |
8.0 |
3.5 |
6.00 |
6.75 |
4.88 |
6.75 |
3.00 |
3.42 |
5 |
| EJ863 |
8.0 |
6.0 |
3.5 |
4.00 |
8.75 |
6.75 |
4.88 |
4.00 |
3.42 |
5 |
| EJ444 |
4.0 |
4.0 |
4.0 |
2.00 |
4.75 |
— |
— |
2.00 |
— |
3 |
| EJ644 |
6.0 |
4.0 |
4.0 |
2.00 |
6.75 |
4.88 |
2.88 |
3.00 |
3.92 |
3 |
| EJ664 |
6.0 |
6.0 |
4.0 |
4.00 |
6.75 |
4.88 |
4.88 |
3.00 |
3.92 |
4 |
| EJ884 |
8.0 |
8.0 |
4.0 |
6.00 |
8.75 |
6.75 |
6.88 |
4.00 |
3.92 |
7 |
| EJ8104 |
8.0 |
10.0 |
4.0 |
8.00 |
8.75 |
6.88 |
8.75 |
4.00 |
3.92 |
8 |
| EJ1084 |
10.0 |
8.0 |
4.0 |
6.00 |
10.75 |
8.75 |
6.88 |
5.00 |
3.92 |
8 |
| EJ1264 |
12.0 |
6.0 |
4.0 |
4.00 |
12.75 |
10.75 |
4.88 |
6.00 |
3.92 |
8 |
| EJ10125 |
10.0 |
12.0 |
5.0 |
10.00 |
10.75 |
8.88 |
10.75 |
5.00 |
4.92 |
10 |
| EJ12105 |
12.0 |
10.0 |
5.0 |
8.00 |
12.75 |
10.75 |
8.88 |
6.00 |
4.92 |
12 |
| EJ866 |
8.0 |
6.0 |
6.0 |
4.00 |
8.75 |
6.75 |
4.88 |
4.00 |
5.92 |
7 |
| EJ1086 |
10.0 |
8.0 |
6.0 |
6.00 |
10.75 |
8.75 |
6.88 |
5.00 |
5.92 |
10 |
| EJ10106 |
10.0 |
10.0 |
6.0 |
8.00 |
10.75 |
8.75 |
8.88 |
5.00 |
5.92 |
12 |
| EJ12126 |
12.0 |
12.0 |
6.0 |
10.00 |
12.75 |
10.75 |
10.88 |
6.00 |
5.92 |
15 |
| EJ12146 |
12.0 |
14.0 |
6.0 |
12.00 |
12.75 |
10.88 |
12.75 |
6.00 |
5.92 |
17 |
| EJ1486 |
14.0 |
8.0 |
6.0 |
6.00 |
14.75 |
12.75 |
6.88 |
7.00 |
5.92 |
10 |
| EJ14126 |
14.0 |
12.0 |
6.0 |
10.00 |
14.75 |
12.75 |
10.88 |
7.00 |
5.92 |
17 |
| EJ14166 |
14.0 |
16.0 |
6.0 |
14.00 |
14.75 |
12.88 |
14.75 |
7.00 |
5.92 |
21 |
| EJ16106 |
16.0 |
10.0 |
6.0 |
8.00 |
16.75 |
14.75 |
8.88 |
8.00 |
5.92 |
15 |
| EJ16146 |
16.0 |
14.0 |
6.0 |
12.00 |
16.75 |
14.75 |
12.88 |
8.00 |
5.92 |
21 |
| EJ12108 |
12.0 |
10.0 |
8.0 |
8.00 |
12.75 |
10.75 |
8.88 |
6.00 |
7.92 |
15 |
| EJ14128 |
14.0 |
12.0 |
8.0 |
10.00 |
14.75 |
12.75 |
10.88 |
7.00 |
7.92 |
18 |
| EJ16148 |
16.0 |
14.0 |
8.0 |
12.00 |
16.75 |
14.75 |
12.88 |
8.00 |
7.92 |
22 |
| EJ161410 |
16.0 |
14.0 |
10.0 |
12.00 |
16.75 |
14.75 |
12.88 |
8.00 |
9.92 |
23 |
|
| |
|
