1414 N4 Series Enclosures - NEMA 12, 13, 4
Clamped, Lift Off Cover |
| << Product Information << Industrial Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
|
| |
| Standards |
- UL 508 Type 3R, 4, 12 and 13
- CSA Type 3R, 4, 12 and 13
- Complies with
- NEMA Type 3R, 4, and 12
- JIC EGP-1-1967
- IEC 60529, IP66
|
| |
| Construction |
- Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for
enclosure mounting.
- Lift off cover is secured with stainless steel clamps and screws.
- Seamless poured-in place gasket.
- All models larger than 4" x 4" include a removable 14 gauge inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
|
| |
| Finish |
- Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.
- Removable inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
| Part No. |

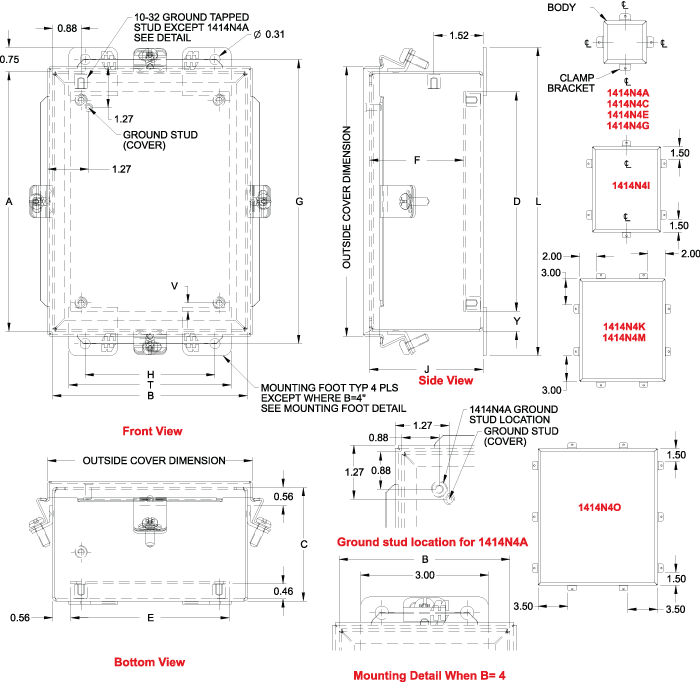

Panel Dimensions |
Centers |
|
Cover
Dimensions |
|
Ship
Wt.
(lbs) |
| A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
T |
V |
Y |
| 1414N4A¹ |
4.00 |
4.00 |
3.00 |
— |
— |
— |
4.75 |
2.00 |
2.60 |
5.50 |
4.31 |
4.31 |
3.00 |
— |
— |
2 |
| 1414N4C |
6.00 |
4.00 |
3.00 |
4.88 |
2.88 |
2.50 |
6.75 |
2.00 |
2.60 |
7.50 |
6.31 |
4.31 |
3.00 |
0.31 |
0.56 |
3 |
| 1414N4G |
8.00 |
6.00 |
3.50 |
6.75 |
4.88 |
3.00 |
8.75 |
4.00 |
3.10 |
9.50 |
8.31 |
6.31 |
5.00 |
0.25 |
0.63 |
6 |
| 1414N4E |
6.00 |
6.00 |
4.00 |
4.88 |
4.88 |
3.50 |
6.75 |
4.00 |
3.60 |
7.50 |
6.31 |
6.31 |
5.00 |
0.31 |
0.56 |
6 |
| 1414N4I |
10.00 |
8.00 |
4.00 |
8.75 |
6.88 |
3.50 |
10.75 |
6.00 |
3.60 |
11.50 |
10.31 |
8.31 |
7.00 |
0.25 |
0.63 |
10 |
| 1414N4K |
12.00 |
10.00 |
5.00 |
10.75 |
8.88 |
4.50 |
12.75 |
8.00 |
4.60 |
13.50 |
12.31 |
10.31 |
9.00 |
0.25 |
0.63 |
15 |
| 1414N4M6 |
14.00 |
12.00 |
6.00 |
12.75 |
10.88 |
5.50 |
14.75 |
10.00 |
5.60 |
15.50 |
14.31 |
12.31 |
11.00 |
0.25 |
0.63 |
20 |
| 1414N4O6 |
16.00 |
14.00 |
6.00 |
14.75 |
12.88 |
5.50 |
16.75 |
12.00 |
5.60 |
17.50 |
16.31 |
14.31 |
13.00 |
0.25 |
0.63 |
26 |
| 1414N4M8 |
14.00 |
12.00 |
8.00 |
12.75 |
10.88 |
7.50 |
14.75 |
10.00 |
7.60 |
15.50 |
14.31 |
12.31 |
11.00 |
0.25 |
0.63 |
22 |
| 1414N4O10 |
16.00 |
14.00 |
10.00 |
14.75 |
12.88 |
9.50 |
16.75 |
12.00 |
9.60 |
17.50 |
16.31 |
14.31 |
13.00 |
0.25 |
0.63 |
30 |
¹ Panel not included |
| |
|
