1414 PH Series Enclosures - NEMA 12, 13
Continuous Hinge, Clamped Cover
<< Product Information << Industrial Enclosures <<

Download PDF




Application
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards
  • UL 508 Type 12, 13
  • CSA Type 12, 13
  • Complies with
    • NEMA Type 12 and 13
    • JIC EGP-1-1967 unless marked¹
    • IEC 60529, IP54

Construction
  • Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Welded brackets provide for enclosure mounting.
  • Continuously hinged cover is secured with stainless steel clamps and plated steel screws.
  • Oil resistant gaskets are permanently secured.
  • Models larger than 4" x 4" include a removable 14 gauge inner panel.
  • Internal threaded weld studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish
  • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
  • Removable inner panel is finished in white powder coating.

Accessories

Back to Top

Part No.
With
Inner
Panel		 Part No.
Without
Inner
Panel		   Panel Size   Cover

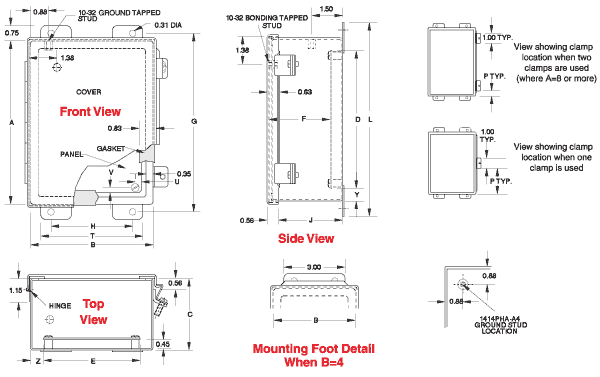

Dimensions
   Ship
wt.
with
pnl		 Ship
wt.
w/out
pnl
A B C D E F G H J L P T U V Y Z
— 1414PHA¹ 4 4 3 — — — 4.75 2 2.64 5.5 4.31 4.31 1.5 3 — — — — — 2
1414PHC¹ 1414PHCLP¹ 6 4 3 4.88 2.88 2.51 6.75 2 2.64 7.5 6.31 4.31 2.5 3 .31 .31 .56 .56 3 2
1414PHG 1414PHGLP 8 6 3.5 6.75 4.88 31 8.75 4 3.14 9.5 8.31 6.31 1 5 .31 .25 .63 .56 6 5
1414PHRG 1414PHRGLP 6 8 3.5 4.88 6.75 31 6.75 6 3.14 7.5 6.31 8.31 2.5 7 .25 .31 .56 .63 6 5
— 1414PHA4¹ 4 4 4 — — — 4.75 2 3.64 5.5 4.31 4.31 1.5 3 — — — — — 3
1414PHC4¹ 1414PHC4LP¹ 6 4 4 4.88 2.88 3.51 6.75 2 3.64 7.5 6.31 4.31 2.5 3 .31 .31 .56 .56 4 3
1414PHE 1414PHELP 6 6 4 4.88 4.88 3.51 6.75 4 3.64 7.5 6.31 6.31 2.5 5 .31 .31 .56 .56 5 4
1414PHH4 1414PHH4LP 8 8 4 6.75 6.88 3.51 8.75 6 3.64 9.5 8.31 8.31 1 7 .31 .25 .63 .56 8 7
1414PHI 1414PHILP 10 8 4 8.75 6.88 3.51 1.75 6 3.64 11.5 1.31 8.31 1 7 .31 .25 .63 .56 1 8
1414PHRI 1414PHRILP 8 10 4 6.88 8.75 3.51 8.75 8 3.64 9.5 8.31 1.31 1 9 .25 .31 .56 .63 1 8
1414PHKC4 1414PHKC4LP 12 6 4 1.75 4.88 3.51 12.75 4 3.64 13.5 12.31 6.31 1 5 .31 .25 .63 .56 10 8
1414PHK 1414PHKLP 12 10 5 1.75 8.88 4.51 12.75 8 4.64 13.5 12.31 1.31 1 9 .31 .25 .63 .56 13 10
1414PHRK 1414PHRKLP 10 12 5 8.88 1.75 4.51 1.75 10 4.64 11.5 1.31 12.31 1 11 .25 .31 .56 .63 13 12
1414PHG6 1414PHG6LP 8 6 6 6.75 4.88 5.51 8.75 4 5.64 9.5 8.31 6.31 1 5 .31 .25 .63 .56 8 7
1414PHI6 1414PHI6LP 10 8 6 8.75 6.88 5.51 1.75 6 5.64 11.5 1.31 8.31 1 7 .31 .25 .63 .56 12 10
1414PHJ6 1414PHJ6LP 10 10 6 8.75 8.88 5.51 1.75 8 5.64 11.5 1.31 1.31 1 9 .31 .25 .63 .56 14 12
1414PHL6 1414PHL6LP 12 12 6 1.75 1.88 5.51 12.75 10 5.64 13.5 12.31 12.31 1 11 .31 .25 .63 .56 17 15
1414PHMH6 1414PHMH6LP 14 8 6 12.75 6.88 5.51 14.75 6 5.64 15.5 14.31 8.31 1 7 .31 .25 .63 .56 12 10
1414PHM6 1414PHM6LP 14 12 6 12.75 1.88 5.51 14.75 10 5.64 15.5 14.31 12.31 1 11 .31 .25 .63 .56 19 17
1414PHRM6 1414PHRM6LP 12 14 6 1.88 12.75 5.51 12.75 12 5.64 13.5 12.31 14.31 1 13 .25 .31 .56 .63 19 17
1414PHN6 1414PHN6LP 16 10 6 14.75 8.88 5.51 16.75 8 5.64 17.5 16.31 1.31 1 9 .31 .25 .63 .56 18 15
1414PHO6 1414PHO6LP 16 14 6 14.75 12.88 5.51 16.75 12 5.64 17.5 16.31 14.31 1 13 .31 .25 .63 .56 23 21
1414PHRO6 1414PHRO6LP 14 16 6 12.88 14.75 5.51 14.75 14 5.64 15.5 14.31 16.31 1 15 .25 .31 .56 .63 23 21
1414PHK8 1414PHK8LP 12 10 8 1.75 8.88 7.51 12.75 8 7.64 13.5 12.31 1.31 1 9 .31 .25 .63 .56 18 15
1414PHM8 1414PHM8LP 14 12 8 12.75 1.88 7.51 14.75 10 7.64 15.5 14.31 12.31 1 11 .31 .25 .63 .56 20 18
1414PHO8 1414PHO8LP 16 14 8 14.75 12.88 7.51 16.75 12 7.64 17.5 16.31 14.31 1 13 .31 .25 .63 .56 25 22
1414PHO10 1414PHO10LP 16 14 10 14.75 12.88 9.51 16.75 12 9.64 17.5 16.31 14.31 1 13 .31 .25 .63 .56 26 23
