1414 SC Series Enclosures - NEMA 12, 13
Lift Off, Screw Cover |
| << Product Information << Industrial Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings,
electrical junction boxes or terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
|
| |
| Standards |
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- Complies with
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP54
|
| |
| Construction |
- Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
Welded brackets provide for enclosure mounting.
- Cover is secured with captive, plated steel screws, threaded into sealed wells.
- Oil resistant gaskets are permanently secured.
- Models larger than 4" x 4" include a removable 14 gauge inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A grounding stud is provided in the enclosure.
|
| |
| Finish |
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- Removable inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |

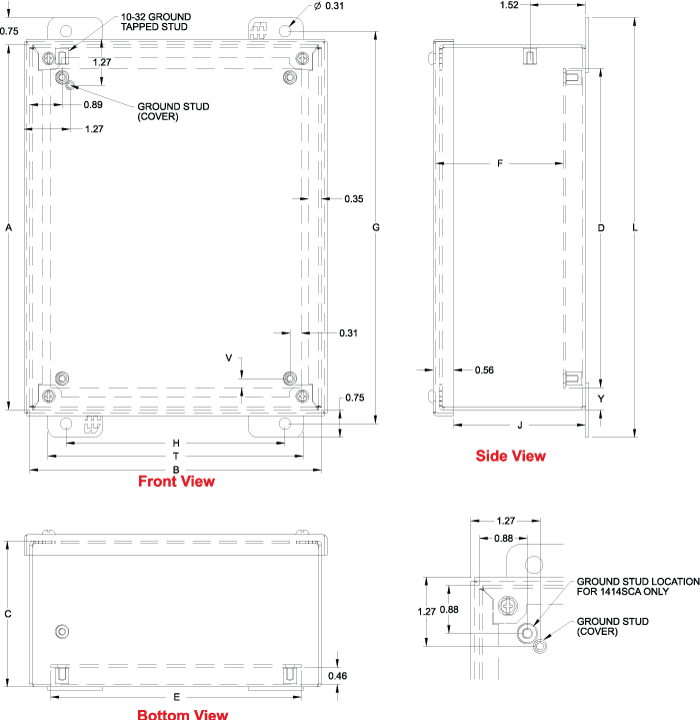

| Part No. |
|
Panel Size |
|
Centers |
|
Cover
Dimensions |
|
Ship Wt.
(lbs) |
| A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
T |
V |
Y |
| 1414SCA¹ |
4.0 |
4.0 |
3.0 |
— |
— |
— |
4.75 |
2.00 |
2.64 |
5.50 |
3.00 |
4.31 |
4.31 |
— |
— |
2 |
| 1414SCC¹ |
6.0 |
4.0 |
3.0 |
4.87 |
2.87 |
2.51 |
6.75 |
2.00 |
2.64 |
7.50 |
3.00 |
6.31 |
4.31 |
0.31 |
0.56 |
3 |
| 1414SCG |
8.0 |
6.0 |
3.5 |
6.75 |
4.87 |
3.01 |
8.75 |
4.00 |
3.14 |
9.50 |
5.00 |
8.31 |
6.31 |
0.25 |
0.63 |
6 |
| 1414SCE |
6.0 |
6.0 |
4.0 |
4.87 |
4.87 |
3.51 |
6.75 |
4.00 |
3.64 |
7.50 |
5.00 |
6.31 |
6.31 |
0.31 |
0.56 |
5 |
| 1414SCI |
10.0 |
8.0 |
4.0 |
8.75 |
6.87 |
3.51 |
10.75 |
6.00 |
3.64 |
11.50 |
7.00 |
10.31 |
8.31 |
0.25 |
0.63 |
10 |
| 1414SCK |
12.0 |
10.0 |
5.0 |
10.75 |
8.87 |
4.51 |
12.75 |
8.00 |
4.64 |
13.50 |
9.00 |
12.31 |
10.31 |
0.25 |
0.63 |
14 |
| 1414SCM6 |
14.0 |
12.0 |
6.0 |
12.75 |
10.87 |
5.51 |
14.75 |
10.00 |
5.64 |
15.50 |
11.00 |
14.31 |
12.31 |
0.25 |
0.63 |
19 |
| 1414SCO6 |
16.0 |
14.0 |
6.0 |
14.75 |
12.87 |
5.51 |
16.75 |
12.00 |
5.64 |
17.50 |
13.00 |
16.31 |
14.31 |
0.25 |
0.63 |
24 |
| 1414SCM8 |
14.0 |
12.0 |
8.0 |
12.75 |
10.87 |
7.51 |
14.75 |
10.00 |
7.64 |
15.50 |
11.00 |
14.31 |
12.31 |
0.25 |
0.63 |
22 |
| 1414SCO10 |
16.0 |
14.0 |
10.0 |
14.75 |
12.87 |
9.51 |
16.75 |
12.00 |
9.64 |
17.50 |
13.00 |
16.31 |
14.31 |
0.25 |
0.63 |
29 |
¹ Does not meet JIC requirements |
| |
|
