1436/1438 Series Junction Boxes - NEMA 12, 13
Lift Off, Screw Cover |
| << Product Information << Industrial Enclosures << |
|
| Application |
|
- Designed for use as instrument
enclosures, electrical junction boxes or terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
|
| |
| Standards |
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- Complies with
|
| |
| Construction |
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for
enclosure mounting.
- Lift off cover is secured with captive, plated steel screws, and supported on internal hinges except as noted on charts at bottom and right.
- Cover screws fasten into threaded, sealed wells.
- Oil resistant gaskets are permanently secured.
- A grounding stud is provided in the enclosure.
|
| |
| Finish |
- Cover and enclosure are
phosphatized and finished in ANSI 61 gray recoatable powder
coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |

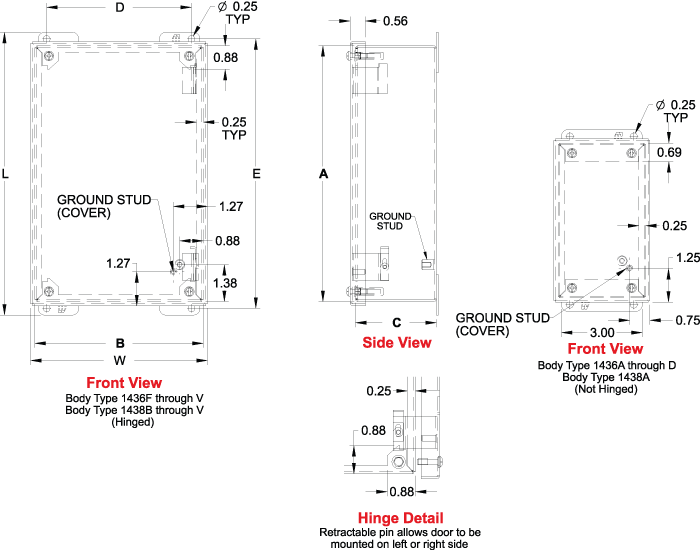

Standard Depth Series (1436)
|
Centers |
Overall Dimensions |
Ship Wt.
lbs |
| Part No. |
A |
B |
C |
D |
E |
L |
W |
| 1436A¹ |
3.50 |
3.25 |
2.75 |
2.38 |
4.00 |
4.50 |
3.56 |
2 |
| 1436B¹ |
5.75 |
3.25 |
2.75 |
2.38 |
6.25 |
6.75 |
3.56 |
2 |
| 1436C¹ |
8.00 |
3.25 |
2.75 |
2.38 |
8.50 |
9.00 |
3.56 |
3 |
| 1436D¹ |
10.25 |
3.25 |
2.75 |
2.38 |
10.75 |
11.25 |
3.56 |
4 |
| 1436F |
7.25 |
6.25 |
3.00 |
5.38 |
7.75 |
8.25 |
6.56 |
5 |
| 1436H |
9.50 |
6.25 |
3.00 |
5.38 |
10.00 |
10.50 |
6.56 |
5 |
| 1436K |
9.50 |
8.50 |
3.00 |
7.63 |
10.00 |
10.50 |
8.81 |
7 |
| 1436O |
11.75 |
8.50 |
3.00 |
7.63 |
12.25 |
12.75 |
8.81 |
8 |
| 1436S |
11.75 |
10.75 |
3.00 |
9.88 |
12.25 |
12.75 |
11.06 |
9 |
| 1436V |
14.00 |
10.75 |
3.00 |
9.88 |
14.50 |
15.00 |
11.06 |
11 |
| 1436X |
14.00 |
13.00 |
3.00 |
12.13 |
14.50 |
15.00 |
13.31 |
12 |
| 1436-30 |
16.25 |
13.00 |
3.00 |
12.13 |
16.75 |
17.25 |
13.31 |
14 |
| 1436-36 |
16.25 |
15.25 |
3.00 |
14.38 |
16.75 |
17.25 |
15.56 |
16 |
| 1436-42 |
18.50 |
15.25 |
3.00 |
14.38 |
19.00 |
19.50 |
15.56 |
18 |
¹ Not Hinged
Extra Deep Series (1438)
|
Centers |
Overall Dimensions |
Ship Wt.
lbs |
| Part No. |
A |
B |
C |
D |
E |
L |
W |
| 1438A¹ |
4.00 |
4.00 |
4.75 |
3.13 |
4.50 |
5.00 |
4.31 |
3.00 |
| 1438B |
6.00 |
4.00 |
4.75 |
3.13 |
6.50 |
7.00 |
4.31 |
4.00 |
| 1438C |
8.00 |
4.00 |
4.75 |
3.13 |
8.50 |
9.00 |
4.31 |
5.00 |
| 1438D |
10.00 |
4.00 |
4.75 |
3.13 |
10.50 |
11.00 |
4.31 |
5.00 |
| 1438F |
7.25 |
6.25 |
4.75 |
5.38 |
7.75 |
8.25 |
6.56 |
5.00 |
| 1438H |
9.50 |
6.25 |
4.75 |
5.38 |
10.00 |
10.50 |
6.56 |
5.00 |
| 1438K |
9.50 |
8.50 |
4.75 |
7.63 |
10.00 |
10.50 |
8.81 |
7.00 |
| 1438O |
11.75 |
8.50 |
4.75 |
7.63 |
12.25 |
12.75 |
8.81 |
8.00 |
| 1438S |
11.75 |
10.75 |
4.75 |
9.88 |
12.25 |
12.75 |
11.06 |
9.00 |
| 1438V |
14.00 |
10.75 |
4.75 |
9.88 |
14.50 |
15.00 |
11.06 |
11.00 |
| 1438X |
14.00 |
13.00 |
4.75 |
12.13 |
14.50 |
15.00 |
13.31 |
12.00 |
| 1438-30 |
16.25 |
13.00 |
4.75 |
12.13 |
16.75 |
17.25 |
13.31 |
14.00 |
| 1438-36 |
16.25 |
15.25 |
4.75 |
14.38 |
16.75 |
17.25 |
15.56 |
16.00 |
| 1438-42 |
18.50 |
15.25 |
4.75 |
14.38 |
19.00 |
19.50 |
15.56 |
18.00 |
¹ Not Hinged |
| |
|
