Eclipse Series - NEMA 4, 12
Single Window Door Enclosures

<< Product Information << Industrial Enclosures <<

Application

Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.

Standards
UL 508 Type 3R, 4 and 12 CSA Type 3R, 4 and 12 Complies with NEMA 3R, 4 and 12 IEC 60529, IP66

Construction
Formed 14 or 16 gauge steel. Full view UV resistant polycarbonate window allow maximum viewing area of inner panel. Smooth, continuously welded seams ground smooth. Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Formed lip on enclosure to exclude flowing liquids and contaminants. Door latches feature the added safety of quarter turn slot requiring use of tool for opening. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Collar studs provided for mounting inner panel. Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes. Bonding stud provided on door and grounding stud installed in enclosure. Hinges are constructed from 304 stainless steel. Hinge pins are stainless steel. Quarter turn latches are zinc diecast with black epoxy finish.

Finish
Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).

Accessories
Air conditioners Blowers Breather kits DIN Rails DIN rail mounting kit Door stop kit Filter fans Gland Plates Heaters Handles Inner panel Quarter turn inserts and keys	Literature pocket Mounting foot kit Swing frame Swing panel Replacement hinge pins Replacement quarter turn assemblies Thermostats Touch up paint UL/CSA approved hardware kit Padlock Adapter (EPA)

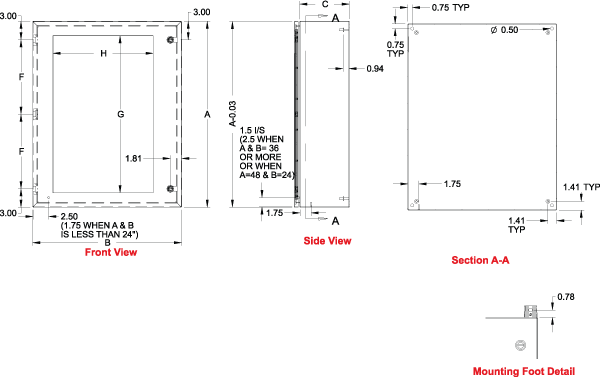

Part No. (ANSI 61 Gray)	Part No. (RAL7035 Light Gray)	Overall Dimensions			Door/ Body Gauge	Latch¹ qty	Hinge qty		Viewing Area		Optional Panel Part No.	Inner Panel Dimensions		Ship Wt. lbs
Part No. (ANSI 61 Gray)	Part No. (RAL7035 Light Gray)	A	B	C	Door/ Body Gauge	Latch¹ qty	Hinge qty	F	G	H	Optional Panel Part No.	D	E	Ship Wt. lbs
EN4SD16126WGY	EN4SD16126WLG	16	12	6	16	1	2	10	11.33	6.71	EP1612	14.2	10.2	16
EN4SD20166WGY	EN4SD20166WLG	20	16	6	16	1	2	14	15.33	10.71	EP2016	18.2	14.2	22
EN4SD20206WGY	EN4SD20206WLG	20	20	6	16	1	2	14	15.33	14.71	EP2020	18.2	18.2	26
EN4SD24206WGY	EN4SD24206WLG	24	20	6	16	1	2	18	19.33	14.71	EP2420	22.2	18.2	30
EN4SD24246WGY	EN4SD24246WLG	24	24	6	14	2	2	18	19.33	16.15	EP2424	22.2	22.2	37
EN4SD16128WGY	EN4SD16128WLG	16	12	8	16	1	2	10	11.33	6.71	EP1612	14.2	10.2	16
EN4SD20168WGY	EN4SD20168WLG	20	16	8	16	1	2	14	15.33	10.71	EP2016	18.2	14.2	25
EN4SD20208WGY	EN4SD20208WLG	20	20	8	16	1	2	14	15.33	14.71	EP2020	18.2	18.2	28
EN4SD24208WGY	EN4SD24208WLG	24	20	8	16	1	2	18	19.33	14.71	EP2420	22.2	18.2	32
EN4SD24248WGY	EN4SD24248WLG	24	24	8	14	2	2	18	19.33	16.15	EP2424	22.2	22.2	40
EN4SD30248WGY	EN4SD30248WLG	30	24	8	14	2	3	12	25.33	16.15	EP3024	28.2	22.2	46
EN4SD202012WGY	EN4SD202012WLG	20	20	12	16	1	2	18	15.33	14.71	EP2020	18.2	18.2	34
EN4SD242012WGY	EN4SD242012WLG	24	20	12	16	1	2	18	19.33	14.71	EP2420	22.2	18.2	38
EN4SD242412WGY	EN4SD242412WLG	24	24	12	14	2	2	18	19.33	16.15	EP2424	22.2	22.2	47
EN4SD302412WGY	EN4SD302412WLG	30	24	12	14	2	3	12	25.33	16.15	EP3024	28.2	22.2	57
EN4SD242416WGY	EN4SD242416WLG	24	24	16	14	2	2	18	19.33	16.15	EP2424	22.2	22.2	66
EN4SD242420WGY	EN4SD242420WLG	24	24	20	14	2	2	18	19.33	16.15	EP2424	22.2	22.2	70
EN4SD302420WGY	EN4SD302420WLG	30	24	20	14	2	3	12	25.33	16.15	EP3024	28.2	22.2	82

¹ All Window Door latch types are quarter turns.
