Eclipse Series- NEMA 4, 12
Two Door Enclosures
<< Product Information << Industrial Enclosures <<

Download PDF




Application
  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • A wide range of sizes and practical accessories make this product line a complete package.
  • For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards
  • UL 508 Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • Complies with
    • NEMA 3R, 4 and 12
    • IEC 60529, IP66

Construction
  • Formed 14 gauge steel.
  • Smooth, continuously welded seams ground smooth.
  • Door stiffeners are provided for increased strength and rigidity also designed to permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Doors may be easily removed for modifications and are interchangeable.
  • Oil resistant gaskets are permanently secured.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Doors are secured with a three point key lockable handle.
  • Hinges are constructed from 304 stainless steel.
  • Key lockable handle is zinc diecast with black epoxy finish.
  • Hinge pins are stainless steel.

Finish
  • Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
  • RAL7032 textured beige (CG) versions with gland plates are available as non-stock items.

Accessories

Back to Top

Part No.
(ANSI 61
Gray)		 Part No.
(RAL7035
Light Gray)		 Overall Dimensions   # of
Hinges		 Optional
Panel
Part No.		 Panel Size Ship
Wt. Lbs

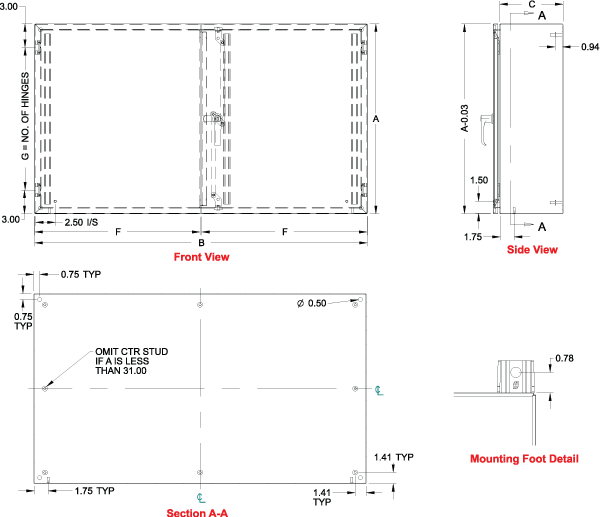

A B C F G D E
EN4TD24428GY EN4TD24428LG 24 42 8 20.88 2 EP2442 22.0 40.2 80
EN4TD24488GY EN4TD24488LG 24 48 8 23.88 2 EP4824 46.0 22.2 95
EN4TD30488GY EN4TD30488LG 30 48 8 23.88 3 EP3048 28.0 46.2 105
EN4TD244210GY EN4TD244210LG 24 42 10 20.88 2 EP2442 22.0 40.20 85
EN4TD304210GY EN4TD304210LG 30 42 10 20.88 3 EP3042 28.0 40.2 117
EN4TD304810GY EN4TD304810LG 30 48 10 23.88 3 EP3048 28.0 46.2 112
EN4TD306010GY EN4TD306010LG 30 60 10 29.88 3 EP3060 28.0 58.2 145
EN4TD306012GY EN4TD306012LG 30 60 12 29.88 3 EP3060 28.0 58.2 152
EN4TD364212GY EN4TD364212LG 36 42 12 20.88 3 EP4236 42.0 34.2 121
EN4TD364812GY EN4TD364812LG 36 48 12 23.88 3 EP3648 34.0 46.1 135
EN4TD366012GY EN4TD366012LG 36 60 12 29.88 3 EP3660 34.0 58.2 165
