1418 N4 Series Single Door Enclosures - NEMA 4
Continuous Hinge, Clamped Cover |
| << Product Information << Industrial Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
|
| |
| Standards |
- UL 508 Type 3R,12, 4
- CSA Type 3R, 12, 4
- Complies with
- NEMA Type 3R, 4, 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP66
|
| |
| Construction |
- Formed 14 gauge steel bodies and doors.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door and body stiffeners are provided in the larger enclosures for extra rigidity.
Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure exclude flowing liquids and contaminants.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- Door is secured with easily operated stainless steel clamps.
- Provision for padlocking.
- Oil resistant gaskets are permanently secured.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided for the inside of the door.
|
| |
| Finish |
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- Removable inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |

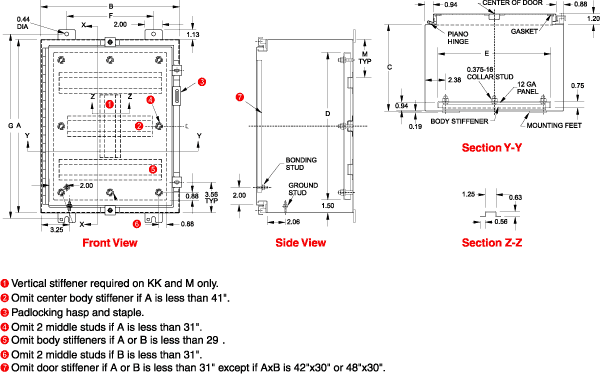

| Part No. |
|
Panel Size |
Mtg. Centers |
Ship
Wt.
lbs. |
| A |
B |
C |
D |
E |
F |
G |
| 1418N4B6² |
16 |
12 |
6 |
13 |
9 |
9.5 |
17.25 |
27 |
| 1418N4G6² |
16 |
16 |
6 |
13 |
13 |
10.0 |
17.25 |
34 |
| 1418N4CR6² |
16 |
20 |
6 |
13 |
17 |
14.0 |
17.25 |
41 |
| 1418N4C6² |
20 |
16 |
6 |
17 |
13 |
10.0 |
21.25 |
40 |
| 1418N4D6² |
20 |
20 |
6 |
17 |
17 |
14.0 |
21.25 |
40 |
| 1418N4AR6 |
24 |
12 |
6 |
21 |
9 |
9.5 |
25.25 |
41 |
| 1418N4H6 |
24 |
16 |
6 |
21 |
13 |
10.0 |
25.25 |
42 |
| 1418N4E6 |
24 |
20 |
6 |
21 |
17 |
14.0 |
25.25 |
56 |
| 1418N4J6 |
24 |
24 |
6 |
21 |
21 |
18.0 |
25.25 |
65 |
| 1418N4F6 |
30 |
20 |
6 |
27 |
17 |
14.0 |
31.25 |
70 |
| 1418N4K6 |
30 |
24 |
6 |
27 |
21 |
18.0 |
31.25 |
80 |
| 1418N4L6 |
36 |
24 |
6 |
33 |
21 |
18.0 |
37.25 |
91 |
| 1418N4B8² |
16 |
12 |
8 |
13 |
9 |
9.5 |
17.25 |
29 |
| 1418N4C8² |
20 |
16 |
8 |
17 |
13 |
10.0 |
21.25 |
44 |
| 1418N4D8² |
20 |
20 |
8 |
17 |
17 |
14.0 |
21.25 |
51 |
| 1418N4ER8 |
20 |
24 |
8 |
17 |
21 |
18.0 |
21.25 |
55 |
| 1418N4E8 |
24 |
20 |
8 |
21 |
17 |
14.0 |
25.25 |
60 |
| 1418N4J8 |
24 |
24 |
8 |
21 |
21 |
18.0 |
25.25 |
70 |
| 1418N4KR8 |
24 |
30 |
8 |
21 |
27 |
24.0 |
25.25 |
74 |
| 1418N4F8 |
30 |
20 |
8 |
27 |
17 |
14.0 |
31.25 |
79 |
| 1418N4K8 |
30 |
24 |
8 |
27 |
21 |
18.0 |
31.25 |
88 |
| 1418N4KK8 |
30 |
30 |
8 |
27 |
27 |
24.0 |
31.25 |
106 |
| 1418N4L8 |
36 |
24 |
8 |
33 |
21 |
18.0 |
37.25 |
101 |
| 1418N4M8 |
36 |
30 |
8 |
33 |
27 |
24.0 |
37.25 |
121 |
| 1418N4O8¹ |
42 |
30 |
8 |
39 |
27 |
24.0 |
43.25 |
132 |
| 1418N4P8¹ |
42 |
36 |
8 |
39 |
33 |
30.0 |
43.25 |
177 |
| 1418N4S8¹ |
48 |
36 |
8 |
45 |
33 |
30.0 |
49.25 |
207 |
| 1418N4T8¹ |
60 |
36 |
8 |
57 |
33 |
30.0 |
61.25 |
245 |
| 1418N4C10² |
20 |
16 |
10 |
17 |
13 |
10.0 |
21.25 |
47 |
| 1418N4E10 |
24 |
20 |
10 |
21 |
17 |
14.0 |
25.25 |
66 |
| 1418N4K10 |
30 |
24 |
10 |
27 |
21 |
18.0 |
31.25 |
91 |
| 1418N4M10 |
36 |
30 |
10 |
33 |
27 |
24.0 |
37.25 |
125 |
| 1418N4R10¹ |
48 |
30 |
10 |
45 |
27 |
24.0 |
49.25 |
175 |
| 1418N4S10¹ |
48 |
36 |
10 |
45 |
33 |
30.0 |
49.25 |
183 |
| 1418N4T10¹ |
60 |
36 |
10 |
57 |
33 |
30.0 |
61.25 |
252 |
| 1418N4E12 |
24 |
20 |
12 |
21 |
17 |
14.0 |
25.25 |
71 |
| 1418N4K12 |
30 |
24 |
12 |
27 |
21 |
18.0 |
31.25 |
95 |
| 1418N4L12 |
36 |
24 |
12 |
33 |
21 |
18.0 |
37.25 |
106 |
| 1418N4M12 |
36 |
30 |
12 |
33 |
27 |
24.0 |
37.25 |
136 |
| 1418N4P12¹ |
42 |
36 |
12 |
39 |
33 |
30.0 |
43.25 |
202 |
| 1418N4S12¹ |
48 |
36 |
12 |
45 |
33 |
30.0 |
49.25 |
225 |
| 1418N4K16 |
30 |
24 |
16 |
27 |
21 |
18.0 |
31.25 |
100 |
| 1418N4M16 |
36 |
30 |
16 |
33 |
27 |
24.0 |
37.25 |
149 |
| 1418N4S16¹ |
48 |
36 |
16 |
45 |
33 |
30.0 |
49.25 |
290 |
| 1418N4T16¹ |
60 |
36 |
16 |
57 |
33 |
30.0 |
61.25 |
232 |
¹ Does not meet JIC requirements
² Flat Panel
| When A= |
M= |
| 30 |
7.00 |
| 36 |
9.00 |
| 42 |
9.88 |
| 48 |
11.38 |
| 60 |
14.38 |
|
| |
|
