1418 Series Single Door Freestanding Enclosures - NEMA 12
Single or Dual Access
<< Product Information << Industrial Enclosures <<

Download PDF




Application
  • Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
  • Provides a degree of protection from falling dirt, dust, oil and water.
  • Available with front access only or both front and rear access.
  • A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Standards
  • UL 508 Type 12
  • CSA Type 12
  • Complies with
    • NEMA Type 12
    • IEC 60529, IP54

Construction
  • Formed 12 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Lifting eyes provide for easy enclosure handling.
  • Doors are supported with heavy gauge continuous hinges.
  • Doors are secured with a three point latch and operated with a key locking automotive type handle.
  • Latch rods are equipped with rollers for easier door closing.
  • Oil resistant gaskets are permanently secured and mechanically retained.
  • Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
  • A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
  • A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units).

Finish
  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
  • Optional inner panels, rails, frames and supports are finished in white powder coating.

Accessories

Back to Top

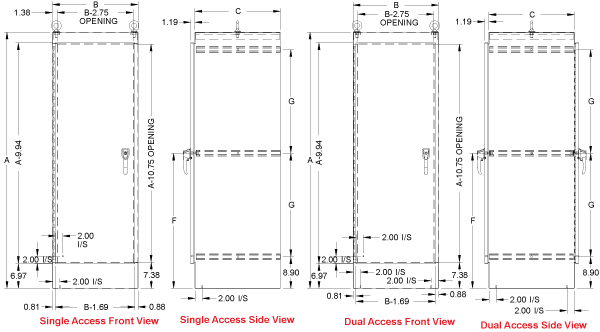

Single Access

Part No. A B C F G Optional
Full Panel¹		 Ship
Wt. lbs
1418TW18 60.06 24.06 18.06 32.03 23.13 60TWFW 210
1418W18 72.06 24.06 18.06 38.03 29.13 72WFW 246
1418X18 72.06 30.06 18.06 38.03 29.13 72XFW 285
1418Y18 72.06 36.06 18.06 38.03 29.13 72YFW 325
1418YW20 90.06 24.06 20.06 47.03 38.13 90YWFW 313
1418YY20 90.06 36.06 20.06 47.03 38.13 90YFW 406
1418TY24 60.06 36.06 24.06 32.03 23.13 60TYFW 325
1418W24 72.06 24.06 24.06 38.03 29.13 72WFW 300
1418X24 72.06 30.06 24.06 38.03 29.13 72XFW 335
1418Y24 72.06 36.06 24.06 38.03 29.13 72YFW 370
1418YY24 90.06 36.06 24.06 47.03 38.13 90YFW 440
1418W30 72.06 24.06 30.06 38.03 29.13 72WFW 355
1418Y30 72.06 36.06 30.06 38.03 29.13 72YFW 420
1418W36 72.06 24.06 36.06 38.03 29.13 72WFW 400
1418Y36 72.06 36.06 36.06 38.03 29.13 72YFW 465
1418YY36 90.06 36.06 36.06 47.03 38.13 90YFW 525
¹ Refers to optional full height/full width panels. Depth panels and half height width panels are also available.

Dual Access

Part No. A B C F G Optional
Full Panel¹		 Ship
Wt. lbs
1418WD24 72.06 24.06 24.06 38.03 29.13 72WFW 325
1418XD24 72.06 30.06 24.06 38.03 29.13 72XFW 424
1418YD24 72.06 36.06 24.06 38.03 29.13 72YFW 474
1418YYD24 90.06 36.06 24.06 47.03 38.13 90YFW 540
1418WD30 72.06 24.06 30.03 38.03 29.13 72WFW 375
1418WD36 72.06 24.06 36.06 38.03 29.13 72WFW 425
1418YD36 72.06 36.06 36.06 38.03 29.13 72YFW 495
1418YYD36 90.06 36.06 36.06 47.03 38.13 90YFW 555
¹ Refers to optional full height/full width panels. Depth panels and half height width panels are also available.

Maximum Useable DepthSingle access only. From inside surface of front door to front face of full width panel. Inner panel in full back position.

Enclosure Depth (In.) Maximum Usable Depth
18.06 17.80
20.06 19.80
24.06 23.80
30.06 29.80
36.06 35.80
