| Application |
|
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
|
| Construction |
|
- Formed 12 gauge steel.
- 304 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Lifting eyes provide for easy enclosure handling.
- Doors are supported with heavy gauge continuous hinges.
- New 3-pt padlocking door handle.
- Oil resistant gaskets are permanently secured and mechanically retained.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.

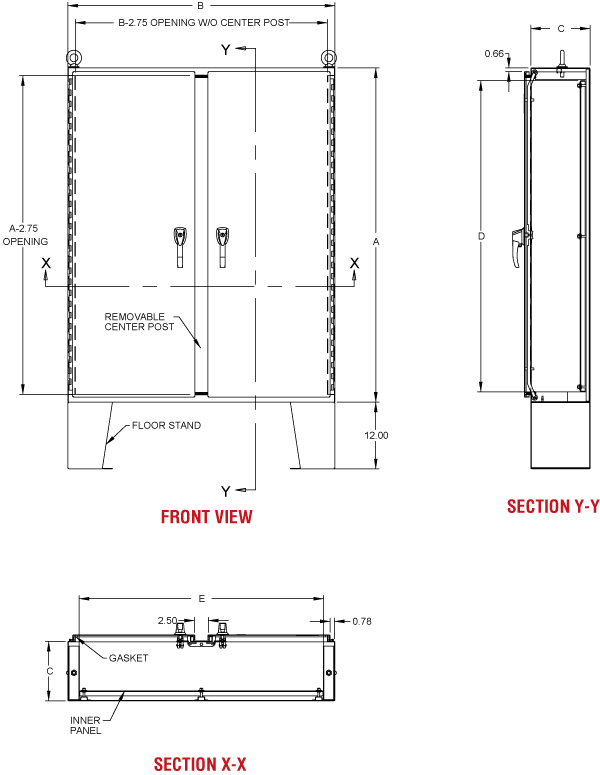

- Center post is removable for easy installation of the inner panel.
- 12” floor stands are welded to the enclosure.
|
| Standards |
|
- UL 508 Type 3R, 4X and 12
- CSA Type 3R, 4X and 12
- Complies with:
- NEMA Type 3R, 4X, 12 and 3
- IEC 60529, IP66
|
| Finish |
|
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
- Removable inner panel is finished in white powder coating.
|
