| Application |
|
- Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
|
| Construction |
|
- Formed 12 gauge 304 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- Doors are supported with heavy gauge continuous hinges.
- New 3-pt padlocking door handle.
- Seamless poured-in place gasket.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.

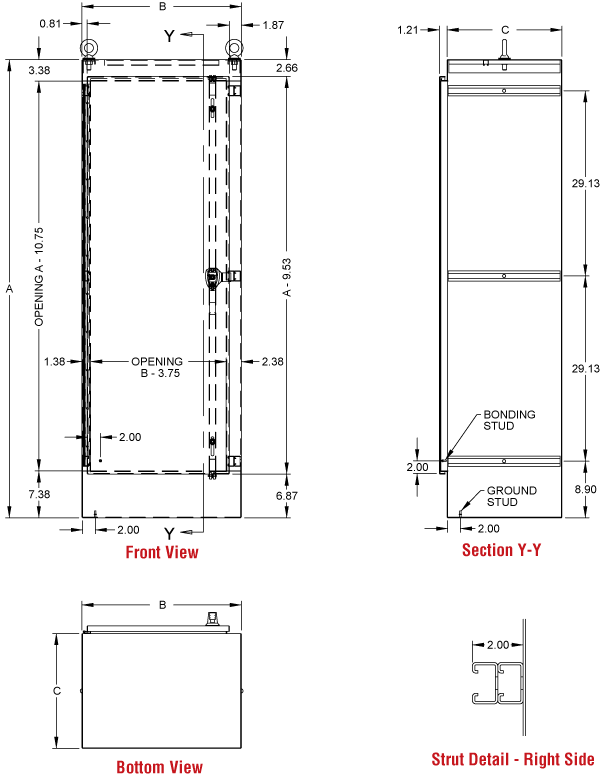

- Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
|
| Standards |
|
- UL 508 Type 3R, 4X and 12
- CSA Type 3R, 4X and 12
- Complies with:
- NEMA Type 3R, 4X, 12 and 3
- IEC 60529, IP66
|
| Finish |
|
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
- Optional inner panels are finished in white powder paint.
|
