Type 4X Stainless Steel Junction Box Eclipse Junior Series

Continuous Hinge Door with Quarter Turn

Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
  • For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards

  • UL 508A Type 3R, 4, 4X, 12, and 13
  • CSA Type 3R, 4, 4X, 12, and 13
  • Complies with
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66

Construction

  • Body and cover are formed from 16 guage 304 or 316 stainless steel.
  • Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • 14 gauge welded brackets provide for enclosure mounting.
  • Continuously hinged cover has stainless steel hinges and provides 180° opening.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Quarter turn latches formed from 316 stainless steel.
  • Seamless poured-in place gasket.
  • Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
  • Tapped studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • Grounding and panel mounting hardware provided.

Finish

  • Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • Removable inner panel is unpainted galvanized steel.

Accessories

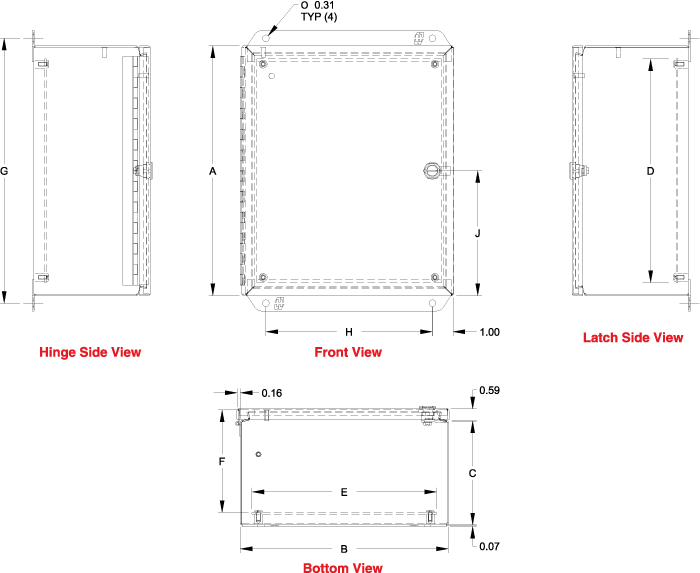

Gallery Image

304 S.S. 316 S.S. Enclosure Panel
Part No. Part No. H W D H W
EJ443SS EJ443S16 4.00 4.00 3.00 N/A N/A
EJ444SS EJ444S16 4.00 4.00 4.00 N/A N/A
EJ643SS EJ643S16 6.00 4.00 3.00 4.88 2.88
EJ863SS EJ863S16 8.00 6.00 3.50 6.75 4.88
EJ644SS EJ644S16 6.00 4.00 4.00 4.88 2.88
EJ664SS EJ664S16 6.00 6.00 4.00 4.88 4.88
EJ884SS EJ884S16 8.00 8.00 4.00 6.75 6.88
EJ1084SS EJ1084S16 10.00 8.00 4.00 8.75 6.88
EJ1264SS EJ1264S16 12.00 6.00 4.00 10.75 4.88
EJ12124SS EJ12124S16 12.00 12.00 4.00 10.75 10.88
EJ12105SS EJ12105S16 12.00 10.00 5.00 10.75 8.88
EJ866SS EJ866S16 8.00 6.00 6.00 6.75 4.88
EJ1086SS EJ1086S16 10.00 8.00 6.00 8.75 6.88
EJ10106SS EJ10106S16 10.00 10.00 6.00 8.75 8.88
EJ12106SS EJ12106S16 12.00 10.00 6.00 10.75 8.88
EJ12126SS EJ12126S16 12.00 12.00 6.00 10.75 10.88
EJ14126SS EJ14126S16 14.00 12.00 6.00 12.75 10.88
EJ16146SS EJ16146S16 16.00 14.00 6.00 14.75 12.88
EJ12108SS EJ12108S16 12.00 10.00 8.00 10.75 8.88
EJ14128SS EJ14128S16 14.00 12.00 8.00 12.75 10.88
EJ16148SS EJ16148S16 16.00 14.00 8.00 14.75 12.88
EJ161410SS EJ161410S16 16.00 14.00 10.00 14.75 12.88

Need Assistance? Contact Us.

Data subject to change without notice.
