Type 4X Stainless Steel Junction Box 1414 N4 PH SS Series

Continuous Hinge Door with Clamps

English | Français

Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.

Standards

  • UL 508A Type 3R, 4, 4X, 12 and 13
  • CSA Type 3R, 4, 4X, 12 and 13
  • Complies with
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66

Construction

  • Formed from 14 gauge 304 or 316 stainless steel.
  • Smooth, continuously welded seams.
  • Welded brackets provide for enclosure mounting.
  • Continuous stainless steel hinged cover is secured with stainless steel clamps and screws.
  • Seamless poured-in place gasket.
  • All models include a removable 14 gauge inner panel.
  • Tapped studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish

  • Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • Removable inner panel is finished in white powder coating.

Accessories

Part Details

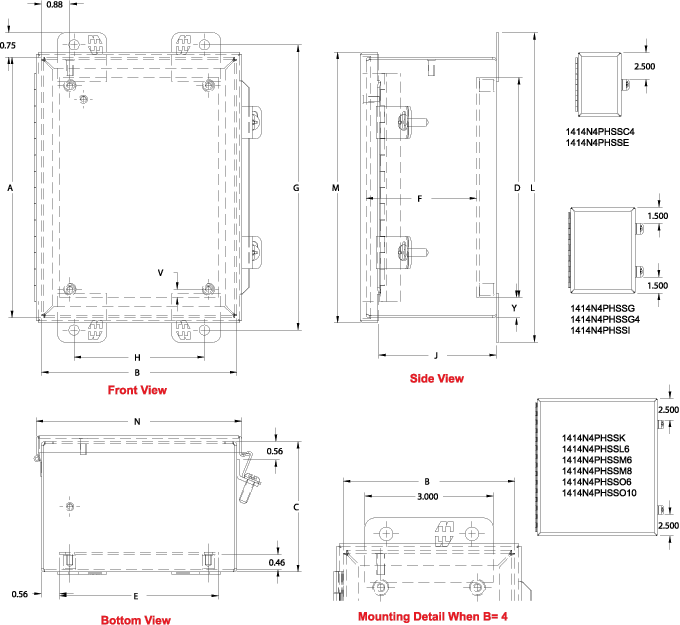

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch. Switch units to: mm

304 S.S. 316 S.S. Enclosure Panel
Part No. Part No. H W D H W
1414N4PHSSC4 1414N4PHS16C4 6.00 4.00 4.00 4.88 2.88
1414N4PHSSE 1414N4PHS16E 6.00 6.00 4.00 4.88 4.88
1414N4PHSSG 1414N4PHS16G 8.00 6.00 3.50 6.75 4.88
1414N4PHSSG4 1414N4PHS16G4 8.00 6.00 4.00 6.75 4.88
1414N4PHSSI 1414N4PHS16I 10.00 8.00 4.00 8.75 6.88
1414N4PHSSK 1414N4PHS16K 12.00 10.00 5.00 10.75 8.88
1414N4PHSSK6 1414N4PHS16K6 12.00 10.00 6.00 10.75 8.88
1414N4PHSSL6 1414N4PHS16L6 12.00 12.00 6.00 10.75 10.88
1414N4PHSSM6 1414N4PHS16M6 14.00 12.00 6.00 12.75 10.88
1414N4PHSSO6 1414N4PHS16O6 16.00 14.00 6.00 14.75 12.88
1414N4PHSSM8 1414N4PHS16M8 14.00 12.00 8.00 12.75 10.88
1414N4PHSSO10 1414N4PHS16O10 16.00 14.00 10.00 14.75 12.88
