1414 N4 304 SS Stainless Steel Enclosures - NEMA 4X
Lift-Off, Clamped Cover |
| << Product Information << Corrosian Resistant Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
|
| |
| Standards |
- UL 508 Type 3R, 4, 4X, 12 and 13.
- CSA Type 3R, 4, 4X, 12 and 13.
- Complies with
- NEMA Type 3R, 4, 4X, 12 and 13.
- JIC EGP-1-1967
- IEC 60529, IP66
|
| |
| Construction |
- Formed from 14 gauge Type 304 stainless steel without knockouts, cutouts, or holes.
- Smooth, continuously welded seams.
- Welded brackets provide for enclosure mounting.
- Lift-Off cover is secured with stainless steel clamps and screws.
- Oil resistant gaskets are permanently secured.
- All models larger than 4” x 4” include a removable 14 gauge inner panel.
- Tapped studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
|
| |
| Finish |
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
- Removable inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |

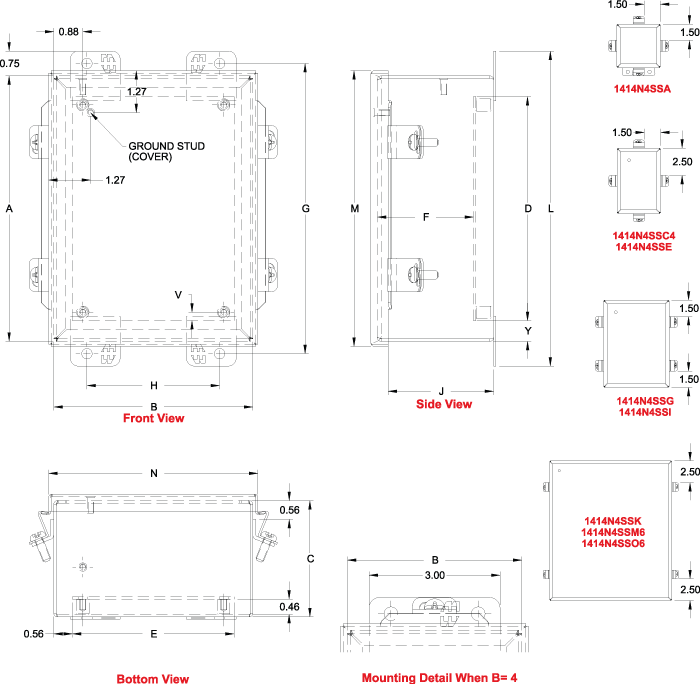

| Part No. |
Panel Dimensions |
Mounting Centers |
|
|
Cover
Dimensions |
|
|
Ship Wt.
(lbs) |
| A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
V |
Y |
| 1414N4SSA¹ |
4 |
4 |
3.0 |
- |
- |
- |
4.75 |
2.00 |
2.6 |
5.5 |
4.31 |
4.31 |
- |
- |
2 |
| 1414N4SSC |
6 |
4 |
4.0 |
4.88 |
2.88 |
3.5 |
6.75 |
2.00 |
3.6 |
7.5 |
6.31 |
4.31 |
0.31 |
0.56 |
3 |
| 1414N4SSG |
8 |
6 |
3.5 |
6.75 |
4.88 |
3.0 |
6.75 |
4.00 |
3.1 |
9.5 |
8.31 |
6.31 |
0.25 |
0.63 |
3 |
| 1414N4SSE |
6 |
6 |
4.0 |
4.88 |
4.88 |
3.5 |
6.75 |
4.00 |
3.6 |
7.5 |
6.31 |
6.31 |
0.31 |
0.56 |
6 |
| 1414N4SSI |
10 |
8 |
4.0 |
8.75 |
6.88 |
3.5 |
10.75 |
6.00 |
3.6 |
11.5 |
10.31 |
8.31 |
0.25 |
0.63 |
10 |
| 1414N4SSK |
12 |
10 |
5.0 |
10.75 |
8.88 |
4.5 |
12.75 |
8.00 |
4.6 |
13.5 |
12.31 |
10.31 |
0.25 |
0.63 |
15 |
| 1414N4SSM6 |
14 |
12 |
6.0 |
12.75 |
10.88 |
5.5 |
14.75 |
10.00 |
5.6 |
15.5 |
14.31 |
12.31 |
0.25 |
0.63 |
20 |
| 1414N4SSO6 |
16 |
14 |
6.0 |
14.75 |
12.88 |
5.5 |
16.75 |
12.00 |
5.6 |
17.5 |
16.31 |
14.31 |
0.25 |
0.63 |
26 |
1 Panel not included |
| |
|
