Eclipse Series, 316 Stainless Steel - NEMA 4X
Single Door Enclosures
<< Product Information << Corrosian Resistant Enclosures <<

Single Door with quarter turns

Download PDF




Application
  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • A wide range of sizes and practical accessories make this product line a complete package.
  • For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards
  • UL 508 Type 3R, 4, 4X and 12
  • CSA Type 3R, 4, 4X and 12
  • Complies with
    • NEMA 3R, 4, 4X, 12 and 13
    • IEC 60529, IP 66

Construction
  • Formed 316 stainless steel.
  • Continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Doors may be easily removed for modifications and are interchangeable.
  • Oil resistant gaskets are permanently secured and can easily be replaced in the field if necessary.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Hinges are 304 stainless, 3 point latching handle (where applicable) is zinc diecast with black epoxy finish.
  • Stainless steel hinge pins and quarter turns.

Finish
  • Cover and enclosure are natural stainless steel with a smooth brushed finish.

Accessories

Back to Top

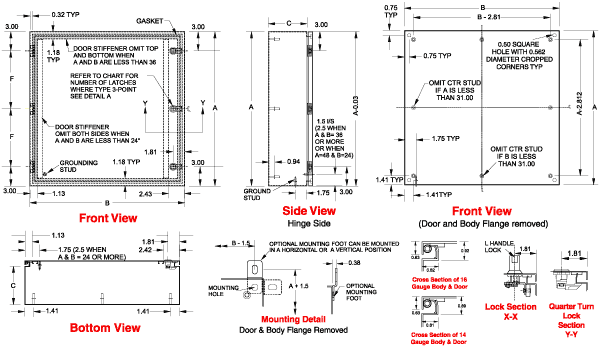

Part No.
(Click for DXF)		 Overall
Dimensions		 Door/Body Gauge Latches
Qty		 Type Optional Panel
Part No.
(Click for DXF) 		Panel Size Hinges   Ship Wt.
Lbs.
A B C D E F
EN4SD12126S16 12 12 6 16 1 Qtr Turn EP1212 10.2 10.2 2 6 12
EN4SD16126S16 16 12 6 16 1 Qtr Turn EP1612 14.2 10.2 2 10 16
EN4SD16166S16 16 16 6 16 1 Qtr Turn EP1616 14.2 14.2 2 10 19
EN4SD20166S16 20 16 6 16 1 Qtr Turn EP2016 18.2 14.2 2 14 22
EN4SD20206S16 20 20 6 16 1 Qtr Turn EP2020 18.2 18.2 2 14 26
EN4SD16128S16 16 12 8 16 1 Qtr Turn EP1612 14.2 10.2 2 10 16
EN4SD16168S16 16 16 8 16 1 Qtr Turn EP1616 14.2 14.2 2 10 21
EN4SD16208S16 16 20 8 16 1 Qtr Turn EP1620 14.2 18.2 2 10 25
EN4SD20168S16 20 16 8 16 1 Qtr Turn EP2016 18.2 14.2 2 14 25
EN4SD20208S16 20 20 8 16 1 Qtr Turn EP2020 18.2 18.2 2 14 28
EN4SD24168S16 24 16 8 16 1 Qtr Turn EP2416 22.2 14.2 2 18 26
EN4SD24208S16 24 20 8 16 1 Qtr Turn EP2420 22.2 18.2 2 18 32
EN4SD24248S16 24 24 8 14 2 Qtr Turn EP2424 22.2 22.2 2 18 40
EN4SD30248S16 30 24 8 14 2 Qtr Turn EP3024 28.2 22.2 3 12 46
EN4SD30308S16 30 30 8 14 2 Qtr Turn EP3030 28.2 28.2 3 12 67
EN4SD36248S16 36 24 8 14 2 Qtr Turn EP3624 34.2 22.2 3 15 55
EN4SD36308S16 36 30 8 14 2 Qtr Turn EP3630 34.2 28.2 3 15 77
EN4SD161210S16 16 12 10 16 1 Qtr Turn EP1612 14.2 10.2 2 10 18
EN4SD161610S16 16 16 10 16 1 Qtr Turn EP1616 14.2 14.2 2 10 23
EN4SD162010S16 16 20 10 16 1 Qtr Turn EP1620 14.2 18.2 2 10 28
EN4SD201610S16 20 16 10 16 1 Qtr Turn EP2016 18.2 14.2 2 14 28
EN4SD202010S16 20 20 10 16 1 Qtr Turn EP2020 18.2 18.2 2 14 31
EN4SD202410S16 20 24 10 16 1 Qtr Turn EP2024 18.2 22.2 2 14 38
EN4SD241610S16 24 16 10 16 1 Qtr Turn EP2416 22.2 14.2 2 18 30
EN4SD242010S16 24 20 10 16 1 Qtr Turn EP2420 22.2 18.2 2 18 38
EN4SD242410S16 24 24 10 14 2 Qtr Turn EP2424 22.2 22.2 2 18 45
EN4SD243010S16 24 30 10 14 2 Qtr Turn EP2430 22.2 28.2 2 18 53
EN4SD302010S16 30 20 10 14 2 Qtr Turn EP3020 28.2 18.2 3 12 47
EN4SD302410S16 30 24 10 14 2 Qtr Turn EP3024 28.2 22.2 3 12 53
EN4SD303010S16 30 30 10 14 2 Qtr Turn EP3030 28.2 28.2 3 12 75
EN4SD362410S16 36 24 10 14 2 Qtr Turn EP3624 34.2 22.2 3 15 62
EN4SD363010S16 36 30 10 14 2 Qtr Turn EP3630 34.2 28.2 3 15 83
EN4SD482410S16 48 24 10 14 1 3-point EP4824 46.2 26.2 4 14 95
EN4SD202012S16 20 20 12 16 1 Qtr Turn EP2020 18.2 18.2 2 14 34
EN4SD242412S16 24 24 12 14 2 Qtr Turn EP2424 22.2 22.2 2 18 47
EN4SD302412S16 30 24 12 14 2 Qtr Turn EP3024 28.2 22.2 3 12 60
EN4SD362412S16 36 24 12 14 2 Qtr Turn EP3624 34.2 22.2 3 15 62
EN4SD363012S16 36 30 12 14 2 Qtr Turn EP3630 34.2 28.2 3 15 99
EN4SD363612S16 36 36 12 14 2 Qtr Turn EP3636 34.2 34.2 3 15 104
EN4SD483616S16 48 36 16 14 1 3-point EP4836 46.2 34.2 4 14 135
