1418 Series 316 Stainless Steel Single Door Enclosures
NEMA 4X- Continuous Hinge, Clamped Cover
<< Product Information << Corrosian Resistant Enclosures <<

Download PDF




Application
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.

Standards
  • UL 508 Type 3R, 4, 4X, and 12
  • CSA Type 3R, 4, 4X, and 12
  • Complies with
    • NEMA Type 3R, 4, 4X, 12 and 13
    • JIC EGP-1-1967 unless marked¹
    • IEC 60529, IP66

Construction
  • Formed 14 gauge Type 316 stainless steel bodies and doors.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Door stiffeners are provided in the larger enclosures for extra rigidity.
  • Welded brackets provide for enclosure mounting.
  • Formed lip on door and enclosure excludes flowing liquids and contaminants.
  • Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
  • Door is secured with easily operated stainless steel clamps.
  • Provision for padlocking.
  • Oil resistant gaskets are permanently secured.
  • A removable 12 gauge inner panel is included.
  • Collar studs are provided for mount­ing inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
  • A literature pocket is provided for the inside of the door.

Finish
  • Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • Removable inner panel is finished in white powder coating.

Accessories

Back to Top

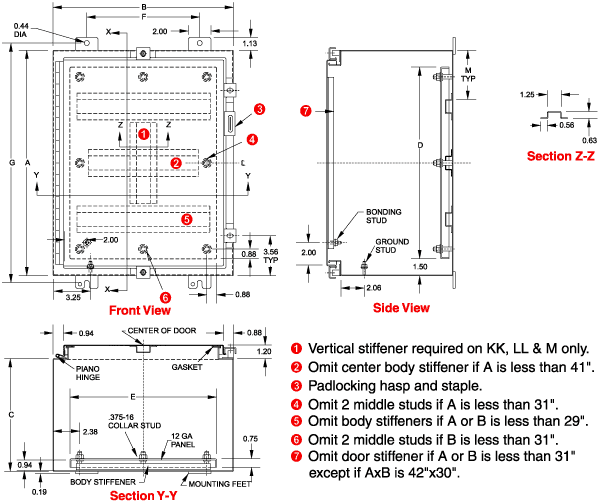

When A= M=
30 7.00
36 9.00
42 9.88
48 11.38
60 14.38

Part No.       Panel Size Mounting Centers Ship Wt.
lbs.
A B C D E F G
1418N4S16B6² 16 12 6 13 9 9.5 17.25 28
1418N4S16G6² 16 16 6 13 13 10.0 17.25 30
1418N4S16CR6² 16 20 6 13 17 14.0 17.25 38
1418N4S16C6² 20 16 6 17 13 10.0 21.25 38
1418N4S16D6² 20 20 6 17 17 14.0 21.25 40
1418N4S16E6 24 20 6 21 17 14.0 25.25 61
1418N4S16J6 24 24 6 21 21 18.0 25.25 65
1418N4S16B8 16 12 8 13 9 9.5 17.25 32
1418N4S16C8² 20 16 8 17 13 10.0 21.25 38
1418N4S16D8² 20 20 8 17 17 14.0 21.25 52
1418N4S16ER8 20 24 8 17 21 18.0 21.25 61
1418N4S16H8 24 16 8 21 13 10.0 25.25 61
1418N4S16E8 24 20 8 21 17 14.0 25.25 61
1418N4S16J8 24 24 8 21 21 18.0 25.25 75
1418N4S16KR8 24 30 8 21 27 24.0 25.25 89
1418N4S16F8 30 20 8 27 17 14.0 31.25 72
1418N4S16K8 30 24 8 27 21 18.0 31.25 89
1418N4S16KK8 30 30 8 27 27 24.0 31.25 100
1418N4S16L8 36 24 8 33 21 18.0 37.25 100
1418N4S16M8 36 30 8 33 27 24.0 37.25 121
1418N4S16P8¹ 42 36 8 39 33 30.0 43.25 177
1418N4S16S8¹ 48 36 8 45 33 30.0 49.25 207
1418N4S16C10 20 16 10 17 13 10.0 21.25 47
1418N4S16E10 24 20 10 21 17 14.0 25.25 66
1418N4S16K10 30 24 10 27 21 18.0 31.25 120
1418N4S16L10 36 24 10 33 21 18.0 37.25 108
1418N4S16M10 36 30 10 33 27 24.0 37.25 125
1418N4S16O10¹ 42 30 10 39 27 24.0 43.25 175
1418N4S16S10¹ 48 36 10 45 33 30.0 49.25 215
1418N4S16J12 24 24 12 21 21 18.0 25.25 71
1418N4S16K12 30 24 12 27 21 18.0 31.25 95
1418N4S16M12 36 30 12 33 27 24.0 37.25 136
1418N4S16LL12¹ 36 36 12 33 33 30.0 37.25 202
1418N4S16S12¹ 48 36 12 45 33 30.0 49.25 225
1418N4S16T12¹ 60 36 12 57 33 30.0 61.25 270
1418N4S16K16 30 24 16 27 21 18.0 31.25 100
1418N4S16M16 36 30 16 33 27 24.0 37.25 149
1418N4S16S16¹ 48 36 16 45 33 30.0 49.25 290
1418N4S16T16¹ 60 36 16 57 33 30.0 61.25 280

¹ Does not meet JIC requirements
² Flat panel
