Polyester Modular Enclosures - NEMA 4X
PB Series - Clear Cover |
| << Product Information << Corrosian Resistant Enclosures << |
|
| Application |
|
- Designed for use as insulated instrument enclosures, electric, control housings, electrical junction boxes or terminal wiring enclosures.
- Transparent cover provides visibility of inner components without exposure to the environment.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
- High UV resistance is ideal for outdoor installations.
|
| |
| Standards |
- UL/cUL 508 Type 1, 2, 3, 4, 4X, 12 & 13
- Complies with
- NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13
|
| |
| Construction |
- Base is constructed of hot molded fiberglass reinforced polyester and has a clear polycarbonate lid.
- Self-extinguishing materials.
- Sealable slotted screws are provided to close the enclosure.
- M6 screws are provided for attaching inner panels or other equipment.
- Fully gasketed lids.
- Operating temperatures between -30°C and 120°C (-22°F to 248°F).
- Dielectric rigidity > 5kV insulating resistance > 5 MW.
|
| |
| Finish |
- Fiberglass polyester base is finished in RAL 7032 beige.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
Clear Lid
Part No. |
|
Overall Dimensions |
|
Opt. Steel
Inner Panel¹ |
Inner Panel
Dimensions |
Ship Wt.
lbs |

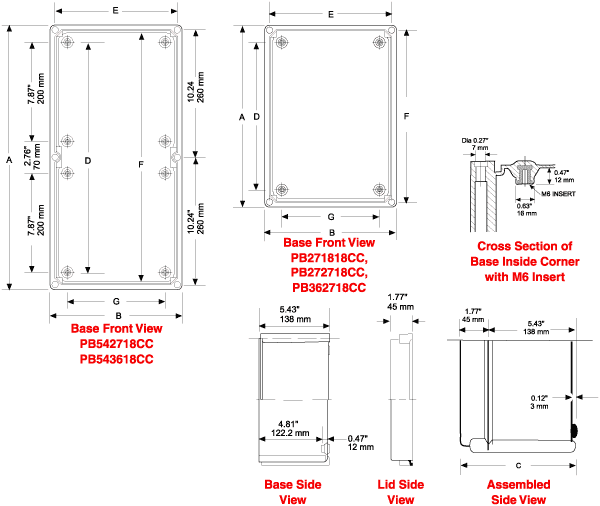

| A |
B |
C |
D |
E |
F |
G |
| PB271818CC |
inch
mm |
10.6
270 |
7.1
180 |
7.1
180 |
7.9
200 |
6.3
159 |
9.8
249 |
4.3
110 |
PBP2718 |
9.06 x 5.51
230 x 140 |
3 |
| PB272718CC |
inch
mm |
10.6
270 |
10.6
270 |
7.1
180 |
7.9
200 |
9.8
249 |
9.8
249 |
7.9
200 |
PBP2727 |
9.06 x 9.06
230 x 230 |
4 |
| PB362718CC |
inch
mm |
14.2
360 |
10.6
270 |
7.1
180 |
11.4
290 |
9.8
249 |
13.3
339 |
7.9
200 |
PBP3627 |
12.60 x 9.06
320 x 230 |
4 |
| PB542718CC |
inch
mm |
21.3
540 |
10.6
270 |
7.1
180 |
18.5
470
|
9.8
249
|
20.4
519
|
7.9
200
|
PBP5427 |
19.69 x 9.06
500 x 230 |
6 |
| PB543618CC |
inch
mm |
21.3
540 |
14.2
360 |
7.1
180 |
18.5
470
|
13.3
339
|
20.4
519
|
11.4
290
|
PBP5436 |
19.69 x 12.60
500 x 320 |
10 |
1 For aluminum panel
Inches are for reference only. Use metric for precise measurements. |
| |
|
