Polyester Modular Enclosures - NEMA 4X
R130 Series Enclosures
<< Product Information << Corrosian Resistant Enclosures <<

Download PDF







Application
  • Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
  • Provide outstanding protection against dust, oil and pressurized water.
  • Impervious to atmospheric and marine corrosion.

Standards
  • Complies with
    • NEMA 1, 2, 3, 3R, 4, 4X, 5, 12, 13
    • IEC 60529, IP66
    • VO Flammability Rating

Construction
  • Two piece molded fiberglass reinforced polyester construction.
  • Captive polyfibre cover screws are provided with a standard slot head.
  • Cover screws fasten into pre-threaded holes.
  • The threaded cover screw holes also provide single channel access to rear mounting positions.
  • Recessed neoprene gasket with tongue and groove construction is oil and petroleum resistant.
  • Threaded stainless steel inserts provide for internal mounting.
  • Spring loaded stainless steel hinge pins are standard, allowing for quick lid removal.

Finish
  • Light beige RAL 7032

Accessories
  • Bonded acrylic glass windows are available on special request.

Back to Top

Accessories
Part No. External Feet (Set of 4)
Stainless Steel		 Inner Panel (1.5 mm)
Steel, Zinc Plated		 Cross Rail (Pair)
(Low Bottom Part)
R130-120-000 R501-000-001 R530-120-000 R531-120-000
R130-122-000 R501-000-001 R530-122-000 R531-120-000
R130-124-000 R501-000-001 R530-124-000 R531-120-000
R130-160-000 R501-000-001 R530-160-000 R531-160-000
R130-162-000 R501-000-001 R530-162-000 R531-160-000
R130-164-000 R501-000-001 R530-164-000 R531-160-000
R130-200-000 R501-000-001 R530-200-000 R531-200-000
R130-202-000 R501-000-001 R530-202-000 R531-200-000

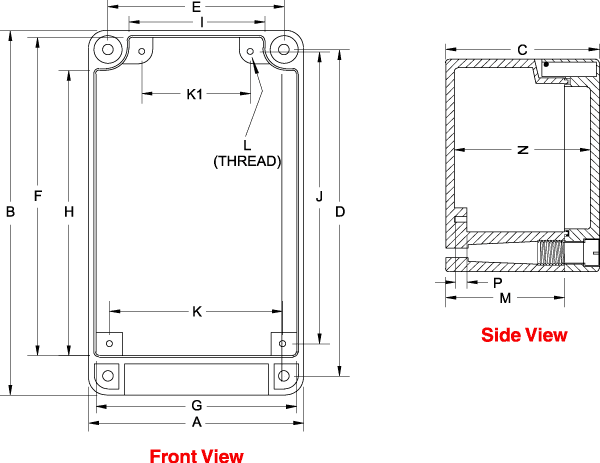

Part No. Series Units Width Length Height
A B C D E F G H I J K K1 L M N P
R130-120-000 PD-120 inch
mm		 4.72
120		 5.51
140		 3.94
100		 4.65
118		 3.86
98		 4.33
110		 4.25
108		 3.62
92		 2.81
71.5		 3.82
97		 3.74
95		 2.28
58		 M6 2.76
70		 3.62
92		 0.28
7
R130-122-000 PD-122 inch
mm		 4.72
120		 7.87
200		 3.94
100		 7.01
178		 3.86
98		 6.69
170		 4.25
108		 5.98
152		 2.81
71.5		 6.18
157		 3.74
98		 2.28
58		 M6 2.76
70		 3.62
92		 0.28
7
R130-124-000 PD-124 inch
mm		 4.72
120		 10.24
260		 3.94
100		 9.37
238		 3.86
98		 9.06
230		 4.25
108		 8.35
212		 2.81
71.5		 8.54
217		 3.74
95		 2.28
58		 M6 2.76
70		 3.62
92		 0.28
7
R130-160-000 PD-160 inch
mm		 6.3
160		 7.09
180		 3.94
100		 6.22
158		 5.43
138		 5.91
150		 5.83
148		 5.2
132		 4.39
111.5		 5.39
137		 5.31
135		 3.86
98		 M6 2.76
70		 3.62
92		 0.28
7
R130-162-000 PD-162 inch
mm		 6.3
160		 10.24
260		 3.94
100		 9.37
238		 5.43
138		 9.06
230		 5.83
148		 8.35
212		 4.39
111.5		 8.54
217		 5.31
135		 3.86
98		 M6 2.76
70		 3.62
92		 0.28
7
R130-164-000 PD-164 inch
mm		 6.3
160		 13.39
340		 3.94
100		 12.52
318		 5.43
138		 12.2
310		 5.83
148		 11.5
292		 4.39
111.5		 11.69
297		 5.31
135		 3.86
98		 M6 2.76
70		 3.62
92		 0.28
7
R130-200-000 PD-200 inch
mm		 7.87
200		 8.66
220		 4.72
120		 7.8
198		 7.01
178		 7.46
189.5		 7.38
187.5		 6.73
171		 5.94
151		 6.97
177		 6.89
175		 5.43
138		 M6 3.54
90		 4.41
112		 0.28
7
R130-202-000 PD-202 inch
mm		 7.87
200		 12.6
320		 4.72
120		 11.73
298		 7.01
178		 11.4
289.5		 7.38
187.5		 10.67
271		 5.94
151		 10.91
277		 6.89
175		 5.43
138		 M6 3.54
90		 4.41
112		 0.28
7
