Type 4X Polyester Junction Box PJ Series

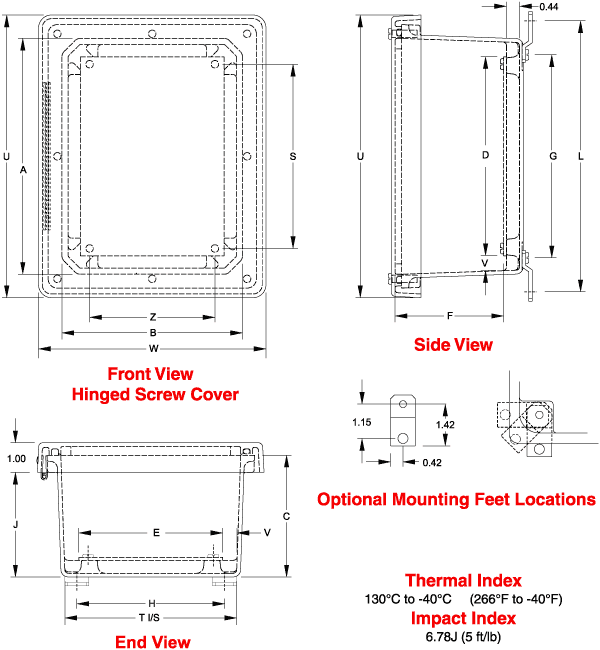

Lift-Off Cover/Hinged Door with Screws

Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneu­matic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • UL 508A Type 6P (see table)
  • cULType 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • cUL Type 6P (see table) per CSA 22.2 No. 94
  • Complies with
    • NEMA Type 1, 2, 3, 4, 4X,12 and 13
    • IEC 60529, IP66 (for IP68 - see table)

Construction

  • Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Standard JIC sizes under 18" x 16".
  • 10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware included.
  • Cover is fastened with captive stainless steel screws in threaded brass inserts.
  • Captive oil resistant gasket provides a positive seal.
  • Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure.
  • Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • Impact index of 6.78J (5 ft/lb).
  • For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • Fiberglass polyester material has a gray finish.
  • Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.

Accessories

Gallery Image

Lift-Off Cover Hinged Cover Enclosure Optional Inner Panel
Part No. Part No. H W D H W Part No.
PJ664¹ PJ664H 6.10 6.10 4.13 4.88 4.88 14R0505
PJ864¹ PJ864H 8.00 6.12 4.13 6.75 4.88 14R0705
PJ1084¹ PJ1084H 10.13 8.26 4.13 8.75 6.88 14R0907
PJ1086¹ PJ1086H 10.13 8.26 6.13 8.75 6.88 14R0907
PJ12106¹ PJ12106H 12.13 10.26 6.13 10.75 8.88 14R1109
PJ12124¹ PJ12124H 12.13 12.13 4.13 10.75 10.88 14R1111
PJ12126¹ PJ12126H 12.13 12.13 6.13 10.75 10.88 14R1111
PJ14126¹ PJ14126H 14.13 12.26 6.13 12.75 10.88 14R1311
PJ16148 PJ16148H 16.27 14.40 8.13 14.75 12.88 14R1513
PJ18168 PJ18168H 18.40 16.40 8.13 16.88 14.88 P1868
PJ20168 PJ20168H 20.00 16.00 8.13 18.44 14.44 P2068

Need Assistance? Contact Us.

Data subject to change without notice.
