Polyester Modular Enclosures - NEMA 4X
PJ Series - Lift-Off, Hinged, Snap Latch, Twist Latch, Solid and Window Door |
| << Product Information << Corrosian Resistant Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
|
| |
| Standards |
- UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12, & 13
|
| |
| Construction |
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18"x16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Stainless steel draw type "snap latch" door fasteners.
- Door fasteners include a provision for padlocking.
- Enclosures are available with bonded polycarbonate viewing windows.
- Door is supported with a continuous stainless steel hinge.
- Captive oil resistant gasket provides a positive seal.
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
|
| |
| Finish |
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
Window
Lift-Off
Part No. |
Window
Hinged
Part No. |

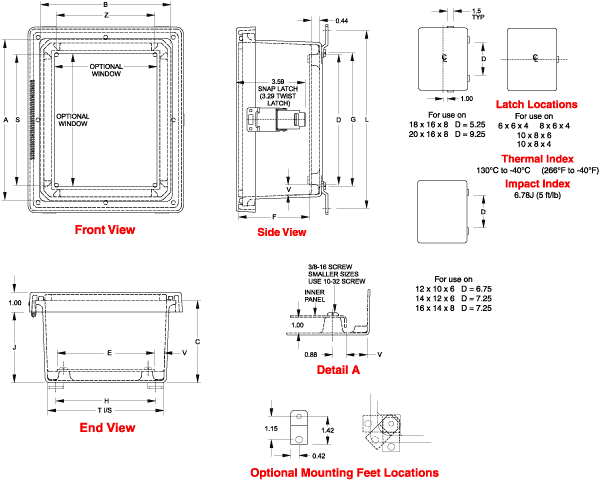

Overall Dimensions |
Panel Size |
|
Center |
| A |
B |
C |
D |
E |
F |
G |
H |
J |
S |
Z |
| PJ664W |
PJ664HW |
6.10 |
6.10 |
4.18 |
4.88 |
4.88 |
5.26 |
5.01 |
5.01 |
3.52 |
4.25 |
4.25 |
| PJ864W |
PJ864HW |
8.00 |
6.12 |
4.13 |
6.75 |
4.88 |
5.21 |
6.89 |
5.01 |
3.47 |
6.25 |
4.25 |
| PJ1084W |
PJ1084HW |
10.13 |
8.26 |
4.13 |
8.75 |
6.88 |
3.68 |
8.89 |
7.01 |
3.47 |
8.25 |
6.25 |
| PJ1086W |
PJ1086HW |
10.13 |
8.26 |
6.13 |
8.75 |
6.88 |
7.21 |
8.89 |
7.01 |
5.47 |
8.25 |
6.25 |
| PJ12106W |
PJ12106HW |
12.13 |
10.26 |
6.13 |
10.75 |
8.88 |
7.21 |
10.89 |
9.01 |
5.47 |
10.25 |
8.25 |
| PJ14126W |
PJ14126HW |
14.13 |
12.26 |
6.13 |
12.75 |
10.88 |
7.21 |
12.89 |
11.01 |
5.47 |
12.25 |
10.25 |
| PJ16148W |
PJ16148HW |
16.27 |
14.40 |
8.13 |
14.75 |
12.88 |
9.21 |
14.89 |
13.01 |
7.47 |
14.25 |
12.25 |
| PJ18168W |
PJ18168HW |
18.40 |
16.40 |
8.13 |
16.88 |
14.88 |
9.21 |
16.97 |
14.97 |
7.47 |
16.25 |
14.25 |
| PJ20168W |
PJ20168HW |
20.00 |
16.00 |
8.13 |
18.44 |
14.44 |
9.21 |
18.54 |
14.54 |
7.47 |
17.81 |
13.81 |
Window
Snap Latch
Part No. |
Window
Twist Latch
Part No. |
|
Cover
Dimensions |
|
Optional
Panel
Part No. |
Window
Dim. HxW |
Shipping
Weight
(lbs) |
| L |
T |
K |
M |
U |
W |
R |
V |
| PJ664LW |
PJ664TW |
7.32 |
5.83 |
6.08 |
6.08 |
7.7 |
7.69 |
0.44 |
0.49 |
14R0505 |
4.25 x 4.25 |
4 |
| PJ864LW |
PJ864TW |
9.19 |
5.85 |
6.11 |
7.98 |
9.6 |
7.71 |
0.44 |
0.50 |
14R0705 |
4.25 x 6.25 |
4 |
| PJ1084LW |
PJ1084TW |
11.19 |
7.85 |
8.44 |
10.32 |
11.8 |
9.90 |
0.44 |
0.50 |
14R0907 |
8.37 x 6.50 |
6 |
| PJ1086LW |
PJ1086TW |
11.19 |
7.85 |
8.44 |
10.32 |
11.8 |
9.90 |
0.44 |
0.50 |
14R0907 |
8.37 x 6.50 |
6 |
| PJ12106LW |
PJ12106TW |
13.19 |
9.85 |
10.45 |
12.32 |
13.8 |
11.90 |
0.44 |
0.50 |
14R1109 |
10.37 x 8.50 |
8 |
| PJ14126LW |
PJ14126TW |
15.19 |
11.85 |
12.45 |
14.32 |
15.7 |
13.85 |
0.44 |
0.50 |
14R1311 |
12.37 x 10.50 |
11 |
| PJ16148LW |
PJ16148TW |
17.19 |
13.71 |
13.86 |
15.73 |
17.9 |
15.99 |
0.44 |
0.50 |
14R1513 |
13.0 x 11.0 |
12 |
| PJ18168LW |
PJ18168TW |
19.28 |
15.72 |
15.86 |
17.86 |
20.0 |
18.00 |
0.44 |
0.50 |
P1868 |
14.0 x 12.0 |
17 |
| PJ20168LW |
PJ20168TW |
20.84 |
15.31 |
15.43 |
19.43 |
21.6 |
17.59 |
0.44 |
0.52 |
P2068 |
15.0 x 11.0 |
19 |
|
| |
|
