Polyester Modular Enclosures - NEMA 4X
PJU Series - Lift-Off, Solid and Window Door |
| << Product Information << Corrosian Resistant Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
|
| |
| Standards |
- UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13
|
| |
| Construction |
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18" x 16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Cover fastened with captive stainless steel screws in threaded brass inserts.
- Enclosure available with clear Polycarbonate cover to 16" x 14".
- Captive oil resistant gasket provides a positive seal.
- Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
|
| |
| Finish |
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
Lift-Off
Cover Flange
Part No. |
Lift-Off
Cover
Feet
Part No. |

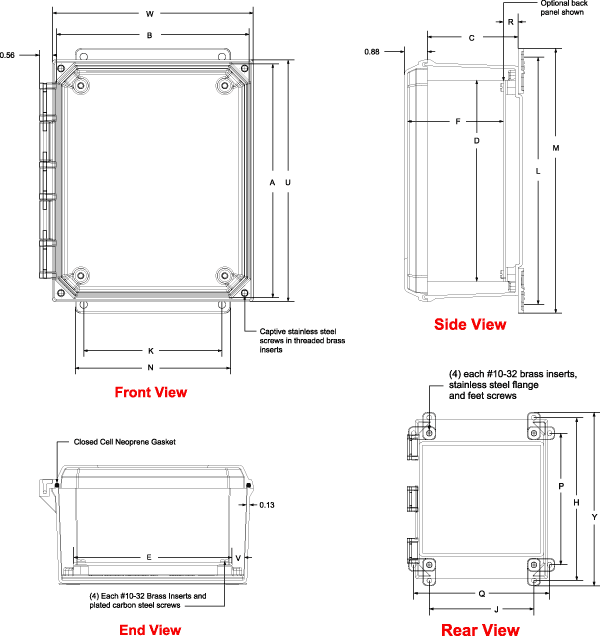

Overall Dimensions |
Panel Size |
|
Center |
Flange Mounting Centers |
|
| A |
B |
C |
D |
E |
F |
S |
Z |
L |
K |
M |
| PJU664F |
PJU664 |
6.05 |
6.27 |
4.13 |
4.88 |
4.88 |
4.11 |
4.25 |
4.25 |
6.88 / 6.75 |
4.05 |
7.62 |
| PJU864F |
PJU864 |
8.05 |
6.27 |
4.13 |
6.75 |
4.88 |
4.11 |
6.25 |
4.25 |
8.88 / 8.75 |
4.00 |
9.62 |
| PJU1084F |
PJU1084 |
10.05 |
8.27 |
4.13 |
8.75 |
6.88 |
4.11 |
10.25 |
6.25 |
10.75 |
6.00 |
11.50 |
| PJU12106F |
PJU12106 |
12.05 |
10.27 |
6.13 |
10.75 |
8.88 |
6.11 |
10.25 |
8.25 |
12.75 |
8.00 |
13.50 |
| PJU14126F |
PJU14126 |
14.05 |
12.27 |
6.13 |
12.75 |
10.88 |
6.11 |
12.25 |
10.25 |
14.75 / 14.62 |
10.00 |
15.37 |
| PJU16148F |
PJU16148 |
16.05 |
14.27 |
8.13 |
14.75 |
12.88 |
8.11 |
14.25 |
12.25 |
16.75 |
12.00 |
17.50 |
| PJU181610F |
PJU181610 |
18.30 |
16.52 |
10.13 |
16.88 |
14.88 |
10.11 |
16.25 |
14.25 |
18.88 / 18.76 |
12.00 |
20.12 |
| PJU201610F |
PJU201610 |
20.50 |
16.27 |
10.13 |
18.44 |
14.44 |
10.11 |
17.81 |
13.81 |
21.25 |
10.00 |
21.50 |
Lift-Off
Clear Cover
Flange Part No. |
Lift-Off
Clear Cover
Feet Part No. |
|
Optional
Panel
Part No. |
Ship
Wt.
(lbs) |
| N |
H |
J |
P |
Q |
U |
W |
Y |
R |
V |
| PJU664CCF |
PJU664CC |
4.80 |
6.75 |
4.91 |
4.69 |
6.97 |
6.50 |
6.72 |
7.47 |
0.70 |
0.52 |
14R0505 |
4 |
| PJU864CCF |
PJU864CC |
4.75 |
8.75 |
4.91 |
6.69 |
6.97 |
8.50 |
6.72 |
9.46 |
0.70 |
0.62 |
14R0705 |
4 |
| PJU1084CCF |
PJU1084CC |
6.75 |
10.75 |
6.91 |
8.69 |
8.97 |
10.50 |
8.72 |
11.47 |
0.70 |
0.53 |
14R0907 |
6 |
| PJU12106CCF |
PJU12106CC |
8.75 |
12.70 |
8.82 |
10.64 |
10.88 |
12.50 |
10.72 |
13.47 |
0.68 |
0.44 |
14R1109 |
6 |
| PJU14126CCF |
PJU14126CC |
10.75 |
14.70 |
10.82 |
12.64 |
12.88 |
14.50 |
12.72 |
15.37 |
0.70 |
0.46 |
14R1311 |
8 |
| PJU16148CCF |
PJU16148CC |
12.75 |
16.91 |
11.47 |
13.50 |
14.88 |
16.50 |
14.72 |
17.50 |
0.70 |
0.40 |
14R1513 |
11 |
| N/A |
N/A |
12.75 |
19.16 |
13.72 |
15.75 |
17.13 |
18.75 |
16.97 |
19.89 |
0.70 |
0.45 |
P1868 |
12 |
| N/A |
N/A |
12.75 |
20.53 |
13.16 |
17.13 |
16.56 |
20.50 |
16.72 |
21.28 |
0.70 |
0.50 |
P2068 |
17 |
|
| |
|
