Polyester Enclosures - NEMA 4X
PJW Series - Continuous Hinge Wallmount |
| << Product Information << Corrosian Resistant Enclosures << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
|
| |
| Standards |
- UL/cUL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X,12 and 13
|
| |
| Construction |
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- 3/8 collar studs are provided for optional inner panel mounting, hardware included.
- Stainless steel butterfly type "twist latch" door fasteners with padlock provision.
- Captive oil resistant gasket provides a positive seal.
- Integrated mounting flange.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
|
| |
| Finish |
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
| Part No. |

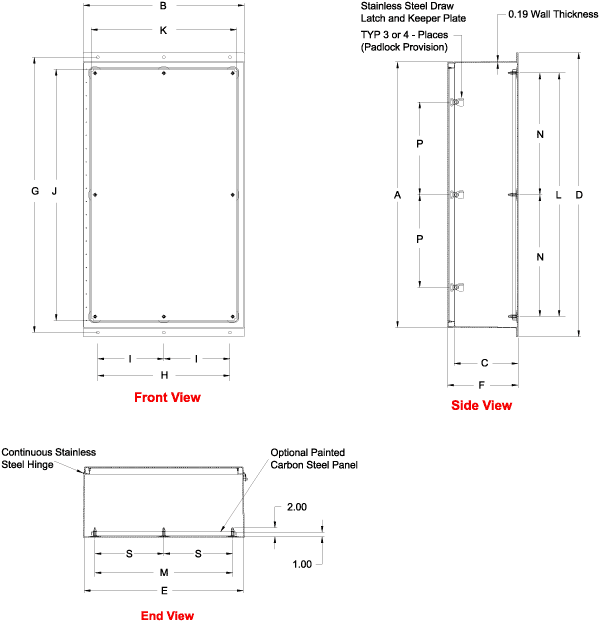

Dimensions |
|
Mounting Centers |
|
|
| A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
| PJW363010L |
36.25 |
30.25 |
10.13 |
40.50 |
30.50 |
12.00 |
38.50 |
24.00 |
12.00 |
33.88 |
27.88 |
| PJW363014L |
36.25 |
30.25 |
14.13 |
40.50 |
30.50 |
16.00 |
38.50 |
24.00 |
12.00 |
33.88 |
27.88 |
| PJW363610L |
36.25 |
36.25 |
10.13 |
40.50 |
36.50 |
12.00 |
38.50 |
30.00 |
15.00 |
33.88 |
33.88 |
| PJW363614L |
36.25 |
36.25 |
14.13 |
40.50 |
36.50 |
16.00 |
38.50 |
30.00 |
15.00 |
33.88 |
33.88 |
| PJW483610L |
48.25 |
36.25 |
10.13 |
52.50 |
36.50 |
12.00 |
50.50 |
30.00 |
15.00 |
45.38 |
33.88 |
| PJW483614L |
48.25 |
36.25 |
14.13 |
52.50 |
36.50 |
16.00 |
50.50 |
30.00 |
15.00 |
45.38 |
33.88 |
| PJW603610L |
60.25 |
36.25 |
10.13 |
64.50 |
36.50 |
12.00 |
62.50 |
30.00 |
15.00 |
57.38 |
33.88 |
| PJW603614L |
60.25 |
36.25 |
14.13 |
64.50 |
36.50 |
16.00 |
62.50 |
30.00 |
15.00 |
57.38 |
33.88 |
|
| |
| Part No. |
M |
N |
S |
P |
# of
Latches |
# of Panel
Mount
Studs |
Panel Size |
Optional
Panel
Part No. |
Ship
Weight
(lbs) |
| Height |
Width |
PJW363010L |
25.25 |
15.63 |
12.63 |
12.13 |
3 |
6 |
33 |
27 |
18P3327 |
59 |
PJW363014L |
25.25 |
15.63 |
12.63 |
12.13 |
3 |
6 |
33 |
27 |
18P3327 |
64 |
PJW363610L |
31.25 |
15.63 |
15.63 |
12.13 |
3 |
8 |
33 |
33 |
18P3333 |
72 |
PJW363614L |
31.25 |
15.63 |
15.63 |
12.13 |
3 |
8 |
33 |
33 |
18P3333 |
77 |
PJW483610L |
31.25 |
21.63 |
15.63 |
18.13 |
3 |
8 |
45 |
33 |
18P4533 |
83 |
PJW483614L |
31.25 |
21.63 |
15.63 |
18.13 |
3 |
8 |
45 |
33 |
18P4533 |
91 |
PJW603610L |
31.25 |
27.63 |
15.63 |
16.00 |
4 |
8 |
57 |
33 |
18P5733 |
101 |
PJW603614L |
31.25 |
27.63 |
15.63 |
16.00 |
4 |
8 |
57 |
33 |
18P5733 |
122 |
|
|
| |
|
