Hammond Mfg. - FRP Wallmount (PW Series)

Polyester Modular Enclosures - NEMA 4X
PW Series - Wallmount Enclosures

<< Product Information << Corrosian Resistant Enclosures <<

Application

Designed to house Industrial control, instrumentation, pneumatic, valve and pump control systems. Excellent protection against corrosion and ultra violet rays making this a suitable enclosure for outdoor installations. High resistance to impact and temperature for industrial installations when subjected to frequent water exposure.

Standards
UL/cUL 508 Type 1, 2, 3, 4, 4X, 12 & 13 Complies with NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 IEC 60529, IP 66

Construction
Fiberglass reinforced polyester is self extinguishing and has operating temperatures of -50°C to 150°C (-58°F to 302°F). One piece monoblock body. Entire enclosure can be reversed to allow door to swing right or left. Built-in canopy at top and bottom protects the door and gasket and allows reversibility. Self-ventilating openings are located at the rear of the enclosure to permit installation of breather or pressure compensation plugs. Internal stainless steel hinges, built into the door with captive pins. Door opening of over 180°. Quarter turn fasteners are located outside the gasketed area. Grid pattern is provided on inside door area for ease of locating equipment. Tamperproof "double bar" quarter turn fasteners. Dielectric rigidity > 5kV insulating resistance > 5 MW. For corrosion resistance information, please refer to table in the Technical Information section.

Finish
Fiberglass polyester material is finished in RAL 7032 beige. Optional inner panels are available in white powder coated finished steel or unfinished aluminum.

Accessories
Air vents Adjustable depth support Literature pocket Mounting feet Metal double bar enclosure keys Molded double bar enclosure keys	Padlock adaptor Rail fixing inserts Rear blanking cover Painted steel inner panels Unfinished aluminum inner panels Viewing windows

Enclosure Part No.	Optional Steel Inner Panel Part No.	Units	A	B
PW433320	PWP4333	inch mm	14.37 365	9.84 250
PW534320	PWP5343	inch mm	18.31 465	13.78 350
PW654425	PWP6544	inch mm	22.24 565	13.78 350
PW755430	PWP7554	inch mm	26.18 665	17.72 450
PW856430	PWP8564	inch mm	30.12 765	21.65 550

¹ For aluminum panel
Inches are for reference only. Use metric for precise measurements.

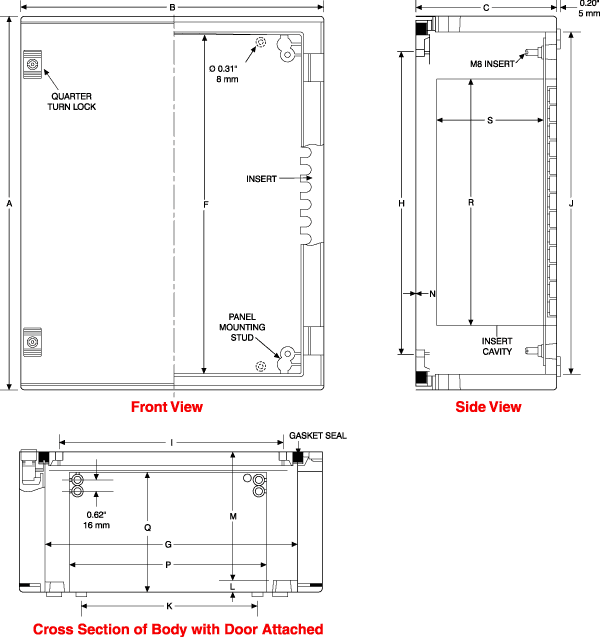

Part No.		Overall Dimensions			Enclosure Opening				Surface Mounting Emboss									Ship Wt. lbs
Part No.		A	B	C	F	G	H	I	J	K	L	M	N	P	Q	R	S	Ship Wt. lbs
PW433320	inch mm	16.9 430	13 330	7.9 200	15 380	10.2 260	12.8 325	8.9 225	14.8 375	5.9 150	0.5 13	7.1 181	0.1 2.7	7 179	6.6 168	9.7 247	5.9 150	10
PW534320	inch mm	20.9 530	16.9 430	7.9 200	18.9 480	14.2 360	16.7 425	12.8 325	18.7 475	9.8 250	0.5 13	7.1 181	0.1 2.9	11 279	6.6 168	13.7 347	5.9 150	14
PW654425	inch mm	25.5 647	17.2 436	9.8 250	22.8 580	14.2 360	20.7 525	12.8 325	22.6 575	9.8 250	0.5 13	9 228	0.1 2.9	11 279	8.3 212	15.3 388	7.6 192	18
PW755430	inch mm	29.4 747	21.1 536	11.8 300	26.8 680	18.1 460	24.6 625	16.7 425	26.6 675	13.8 350	0.6 15	10.9 278	0.1 3	14.9 379	10.3 261	19.2 487	9.5 241	27
PW856430	inch mm	33.3 847	25 636	11.8 300	30.7 780	22 560	28.5 725	20.7 525	30.5 775	17.7 450	0.6 15	10.9 278	0.1 3	18.9 479	10.3 261	23.1 587	9.5 241	33
