1447A Single Door Disconnect Enclosures - NEMA 12, 13
Allen Bradley, 1494 F & D Series Only |
| << Product Information << Disconnect Enclosures << |
|
| Application |
|
- Designed to house Allen Bradley 1494F flange mounted disconnect switches and 1494D flange mounted circuit breaker operators (will not accept Allen Bradley 1494V disconnect switches).
- Provides a degree of protection from falling dirt, dust, oil and water.
|
| |
| Standards |
- UL 508 Type 12, 13
- CSA Type 12, 13
- Complies with
- NEMA Type 12, 13
- JIC EGP-1-1967
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.
|
| |
| Construction |
- Formed 14-gauge steel.
- Continuously welded seams.
- Larger sizes include door and body stiffeners.
- Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure exclude flowing liquids and contaminants.
- Cutouts and holes are provided to suit the handle, operating mechanism and door closing mechanism.
- Continuously hinged doors may be removed by pulling the hinge pin.
- Guide and cover interlock brackets are welded to the door.
- Cover latch bars for door hardware are provided.
- A spacer kit to support the disconnect on the panel is included.
- Collar studs are provided for mounting inner panels.
- A removable 12 gauge inner panel is included.
- Oil resistant gaskets are permanently secured and mechanically retained.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided.
|
| |
| Note: |
- Disconnects, operating mechanisms, and door hardware are not provided with the enclosure, and must be ordered separately from the manufacturer.
- Enclosures with an "A" dimension under 40" require 2 point door closing hardware. Order one Allen Bradley 1494F-L1.
- Enclosures with an "A" dimension
of 40" or more require a 3 point
door closing mechanism. Order one Allen Bradley 1494F-L2 and one 1494F-L3.
- Enclosures 1447A K122 and 1447A L122 accept a 200 A switch only. This switch will not fit in any other 1447A Series Enclosure. Order Allen Bradley 1494F-L4 door hardware for 1447A K122 and 1447A L122 enclosures.
|
| |
| Finish |
- Door and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating on the outside.
- Enclosure interior is finished in white powder coating.
- Inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
| Back to Top |
 |
|

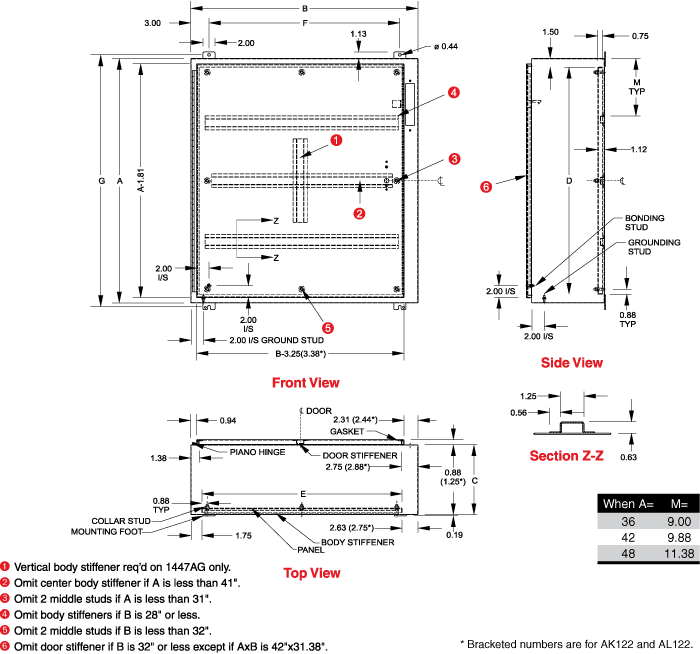

| Part No. |
Dimensions |
Panel Size |
Mtg. Centers |
Ship
Wt. lbs. |
| A |
B |
C |
D |
E |
F |
G |
| 1447AA8 |
20 |
21.38 |
8 |
17 |
17 |
15.38 |
21.25 |
55 |
| 1447AB8 |
24 |
21.38 |
8 |
21 |
17 |
15.38 |
25.25 |
61 |
| 1447AC8 |
24 |
25.38 |
8 |
21 |
21 |
19.38 |
25.25 |
67 |
| 1447AD8 |
30 |
21.38 |
8 |
27 |
17 |
15.38 |
31.25 |
74 |
| 1447AE8 |
30 |
25.38 |
8 |
27 |
21 |
19.38 |
31.25 |
85 |
| 1447AF8 |
36 |
25.38 |
8 |
33 |
21 |
19.38 |
37.25 |
100 |
| 1447AG8 |
36 |
31.38 |
8 |
33 |
27 |
25.38 |
37.25 |
123 |
| 1447AH8 |
42 |
31.38 |
8 |
39 |
27 |
25.38 |
43.25 |
137 |
| 1447AJ8 |
42 |
37.38 |
8 |
39 |
33 |
31.38 |
43.25 |
186 |
| 1447AK8 |
48 |
37.38 |
8 |
45 |
33 |
31.38 |
49.25 |
211 |
| 1447AL8 |
60 |
37.38 |
8 |
57 |
33 |
31.38 |
61.25 |
245 |
| 1447AB10 |
24 |
21.38 |
10 |
21 |
17 |
15.38 |
25.25 |
68 |
| 1447AC10 |
24 |
25.38 |
10 |
21 |
21 |
19.38 |
25.25 |
75 |
| 1447AD10 |
30 |
21.38 |
10 |
27 |
17 |
15.38 |
31.25 |
78 |
| 1447AE10 |
30 |
25.38 |
10 |
27 |
21 |
19.38 |
31.25 |
90 |
| 1447AF10 |
36 |
25.38 |
10 |
33 |
21 |
19.38 |
37.25 |
110 |
| 1447AG10 |
36 |
31.38 |
10 |
33 |
27 |
25.38 |
37.25 |
125 |
| 1447AH10 |
42 |
31.38 |
10 |
39 |
27 |
25.38 |
43.25 |
137 |
| 1447AJ10 |
42 |
37.38 |
10 |
39 |
33 |
31.38 |
43.25 |
189 |
| 1447AK10 |
48 |
37.38 |
10 |
45 |
33 |
31.38 |
49.25 |
211 |
| 1447AL10 |
60 |
37.38 |
10 |
57 |
33 |
31.38 |
61.25 |
257 |
| 1447AG12 |
36 |
31.38 |
12 |
33 |
27 |
25.38 |
37.25 |
125 |
| 1447AH12 |
42 |
31.38 |
12 |
39 |
27 |
25.38 |
43.25 |
137 |
| 1447AJ12 |
42 |
37.38 |
12 |
39 |
33 |
31.38 |
43.25 |
189 |
| 1447AK12 |
48 |
37.38 |
12 |
45 |
33 |
31.38 |
49.25 |
211 |
| 1447AL12 |
60 |
37.38 |
12 |
57 |
33 |
31.38 |
61.25 |
257 |
| 1447AK16 |
48 |
37.38 |
16 |
45 |
33 |
31.38 |
49.25 |
211 |
| 1447AL16 |
60 |
37.38 |
16 |
57 |
33 |
31.38 |
61.25 |
257 |
| 1447AK122 |
48 |
37.50 |
12 |
45 |
33 |
31.50 |
49.25 |
250 |
| 1447AL122 |
60 |
37.50 |
12 |
57 |
33 |
31.50 |
61.25 |
265 |
|
| |
| Disconnect Ordering Information |
| |
| Allen Bradley |
| Bulletin 1494F flange mounted disconnect switch: |
|
Bulletin 1494D flange mounted circuit breaker operating mechanism: |
- Disconnect switch
- Fuse block adaptor (if required)
- Line and load connectors (if required)
- Door hardware
- Enclosures with an "A" dimension under 40" require two point door latching hardware, order: one Allen Bradley 1494F-L1.
- Enclosures with an "A" dimension of 40" or more require a 3 point door latching mechanism, order: one Allen Bradley 1494F-L2 and one 1494F-L3.
- Exception: Order Allen Bradley 1494F-L4 door hardware for 1447A K122 and 1447A L122.
|
|
- Circuit breaker C-H Westinghouse
- Operating mechanism
- Slide mechanism
- Door hardware
- Enclosures with an "A" dimension under 40" require two point door latching hardware, order: one Allen Bradley 1494F-L1.
- Enclosures with an "A" dimension of 40" or more require a 3 point door latching mechanism, order: one Allen Bradley 1494F-L2 and one 1494F-L3.
|
|
| |

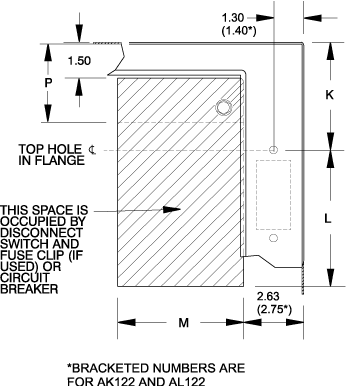

| Space Occupied by Disconnect |
| Note: |
"K" = 3.84 when "C" = 8.00
"K" = 6.75 when "C" = 10.00
"K" = 9.50 when "C" = 12.00
(except enclosures for 200A switches)
"K" = 9.50 when "C" = 16.00
"K" = 10.50 when "C" = 12.00
(for enclosures with 200A switches)
"P" = Wiring Space
|
 |
Disconnects will occupy space on panel shown by dimensions "K", "L" and "M".
|
| Wiring space "P" is available when disconnect is installed in the enclosure. |
| *The disconnect information and space occupied tables based on data supplied by disconnect manufacturer’s bulletins. Hammond Manufacturing is not responsible for dimensional accuracy. |
|
| |
| Allen Bradley 1494F Disconnect Switches |
| Fits Enclosure Depth |
Allen-Bradley
Type No. |
Amp
Rating |
Fuse
Clip |
Fuse
Class |
Space Occupied |
When |
When |
When |
| K=3.84 |
K=6.75 |
K=9.50 |
| 8 |
10 |
12 |
16 |
L |
M¹ |
P |
P |
P |
| • |
• |
• |
• |
N30 |
30A |
No Fuse |
— |
4.62 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
NF30 |
30A |
30A-250V |
H, K, R |
6.25 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
NF30 |
30A |
60A-250V |
H, K, R |
7.25 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
NF30 |
30A |
30A-600V |
H, K, R |
9.25 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
NF30 |
30A |
60A-600V |
H, K, R |
9.75 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
NF30 |
30A |
30A-600V |
J |
6.50 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
NF30 |
30A |
60A-600V |
J |
6.62 |
6.25 |
3.25 |
6.25 |
8.88 |
| • |
• |
• |
• |
N60 |
60A |
No Fuse |
— |
4.62 |
6.25 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
30A-600V |
H, K, R |
10.38 |
6.25 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
60A-250V |
H, K, R |
8.38 |
6.25 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
100A-250V |
H, K, R |
10.88 |
6.25 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
60A-600V |
H, K, R |
10.88 |
6.25 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
100A-600V |
H, K, R |
12.88 |
6.38 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
60A-600V |
J |
7.75 |
6.25 |
2.50 |
5.25 |
8.12 |
| • |
• |
• |
• |
NF60 |
60A |
100A-600V |
J |
9.75 |
6.25 |
2.50 |
5.25 |
8.12 |
|
• |
• |
• |
N100 |
100A |
No Fuse |
— |
4.62 |
7.00 |
— |
3.50 |
6.25 |
|
• |
• |
• |
NF100 |
100A |
100A-250V |
H, K, R |
11.38 |
7.00 |
— |
3.50 |
6.25 |
|
• |
• |
• |
NF100 |
100A |
200A-250V |
H, K, R |
12.25 |
7.25 |
— |
3.50 |
6.25 |
|
• |
• |
• |
NF100 |
100A |
100A-600V |
H, K, R |
13.38 |
7.12 |
— |
3.50 |
6.25 |
|
• |
• |
• |
NF100 |
100A |
200A-600V |
H, K, R |
14.75 |
7.38 |
— |
3.50 |
6.25 |
|
• |
• |
• |
NF100 |
100A |
100A-600V |
J |
10.12 |
7.00 |
— |
3.50 |
6.25 |
|
• |
• |
• |
NF100 |
100A |
200A-600V |
J |
10.88 |
7.25 |
— |
3.50 |
6.25 |
|
|
² |
|
N200 |
200A |
No Fuse |
— |
7.12 |
10.00 |
— |
— |
7.00 |
|
|
² |
|
NF200 |
200A |
200A-250V |
H, K, R |
15.00 |
10.00 |
— |
— |
7.00 |
|
|
² |
|
NF200 |
200A |
400A-250V |
H, K, R |
16.56 |
10.38 |
— |
— |
7.00 |
|
|
² |
|
NF200 |
200A |
200A-600V |
H, K, R |
17.56 |
10.00 |
— |
— |
7.00 |
|
|
² |
|
NF200 |
200A |
400A-600V |
H, K, R |
19.56 |
10.62 |
— |
— |
7.00 |
|
|
² |
|
NF200 |
200A |
200A-600V |
J |
13.69 |
10.00 |
— |
— |
7.00 |
|
|
² |
|
NF200 |
200A |
400A-600V |
J |
15.00 |
10.25 |
— |
— |
7.00 |
|
| ¹ |
"M" dimension does not allow for auxiliary switches. Refer to Allen Bradley instructions if additional space is required. |
| ² |
200 A switches can only be installed in Hammond Enclosures 1447AK122 and 1447AL122.
K=10.50" for these 12.00" enclosures |
| |
| Allen Bradley 1494D Circuit Breaker Operators |
| Fits Enclosure Depth |
Allen-Bradley
Type No. |
Frame
Rating |
Breaker Type |
Frame Size
(3 Pole) |
Space
Occupied |
When |
When |
When |
| K=3.84 |
K=6.75 |
K=9.50 |
| 8 |
10 |
12 |
16 |
L |
M1 |
P |
P |
P |
| • |
• |
• |
• |
N4/N40 |
150A |
C-H Westinghouse |
EHD, FD, FDB, FDC,
HFD, HMCP |
5.81 |
4.31 |
3.25 |
6.12 |
8.88 |
|
• |
• |
• |
N5/N50 |
250A |
C-H Westinghouse |
JD, JDB, JDC, HJD,
HMCP |
8.81 |
4.50 |
— |
5.31 |
8.06 |
|
• |
• |
• |
N5/N60 |
400A |
C-H Westinghouse |
KD, KDB, DK, HKD,
HMCP |
8.81 |
5.62 |
— |
5.44 |
8.19 |
|
|
|
| |
|
