Type 12 Mild Steel Multi-Door Freestanding Disconnect Enclosure UHD Series

Hinge Door with Handle (Flange w/ multi-vendor cutout)

English | Français

Application

  • Designed to accept the following dis­connect switches and circuit breakers:
    • ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers.
    • Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
    • C-H Westinghouse type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex-Shaft™ handle operators for circuit breakers.
    • General Electric type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex™ cable operators for circuit breakers.
    • Siemens I-T-E Max-Flex™ flange mounted variable depth operating handles for disconnect switches and circuit breakers.
    • Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or class 9422TG1 or TG2 devices.
  • Refer to the Universal Heavy Duty Disconnect Selection Guide.

Standards

  • UL 508A Type 12
  • CSA Type 12
  • Complies with
    • NEMA Type 12
    • IEC 60529, IP54
  • Appropriate components are required to maintain these standards.

Construction

  • Formed from 10 gauge steel with smooth, continuously welded seams.
  • Body stiffeners are provided in the larger enclosures for extra rigidity.
  • Flange trough collar (FTC) around door opening excludes liquids and contaminants.
  • Heavy duty lifting eyes are anchored into reinforced top corners.
  • Removable doors are secured with heavy duty lift off hinges.
  • Formed 10 gauge steel inner panels are provided on collar studs.
  • Panel supports are provided.
  • Center post is removable, providing easy panel installation.
  • Heavy duty three point latching mechanism with heavy duty roller ends is provided for ease of door closing.
  • Oil resistant gaskets are permanently secured.
  • The right-hand door on all enclosures is the master door.
  • Master door handle complete with screw defeater and padlock hasp.
  • Slave door handle complete with padlock hasp.
  • A mechanical interlock activated by the master door prevents the auxiliary door from being opened first.
  • The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit.
  • A provision for mounting fluorescent lighting is provided.
  • A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door.
  • A literature pocket is provided for the inside of the door.

Note:

  • Disconnect switches, circuit breakers and operators are not provided with the enclosure, and must be ordered separately from the manufacturer.

Finish

  • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
  • Inner panel is finished in white powder coating.

Accessories

Gallery Image

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

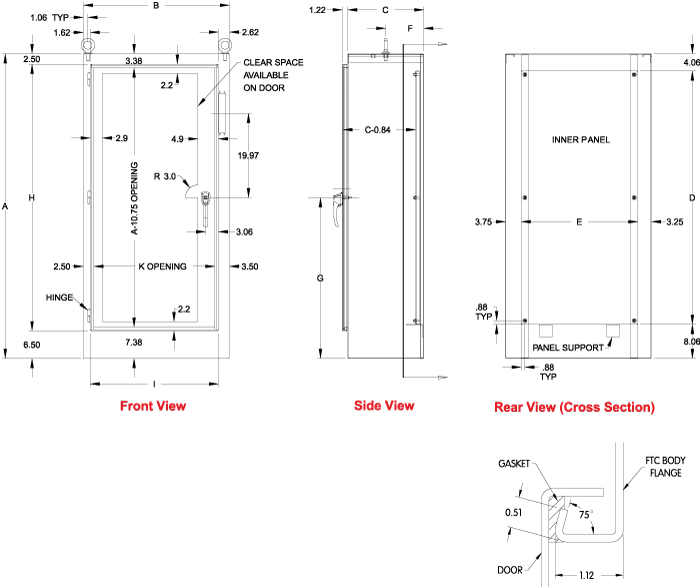

Single Door

Units shown: inch. Switch units to: mm

Enclosure Inner Panel
Part No. H W D H W
1UHD722918FTC 72.13 28.75 18.13 60.00 21.75
1UHD723518FTC 72.13 34.75 18.13 60.00 27.75
1UHD724118FTC 72.13 40.75 18.13 60.00 33.75
1UHD844118FTC 84.13 40.75 18.13 72.00 33.75
1UHD844124FTC 84.13 40.75 24.13 72.00 33.75
1UHD904118FTC 90.13 40.75 18.13 78.00 33.75
1UHD904120FTC 90.13 40.75 20.13 78.00 33.75
1UHD904124FTC 90.13 40.75 24.13 78.00 33.75

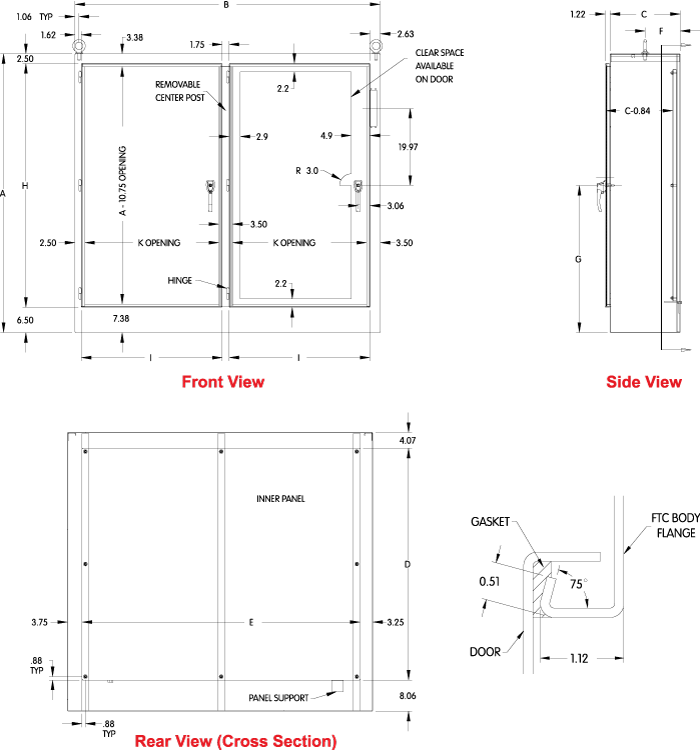

2 Door

Units shown: inch. Switch units to: mm

Enclosure Inner Panel
Part No. H W D H W
2UHD725518FTC 72.13 55.00 18.13 60.00 48.00
2UHD726718FTC 72.13 67.00 18.13 60.00 60.00
2UHD727918FTC 72.13 79.00 18.13 60.00 72.00
2UHD727924FTC 72.13 79.00 24.13 60.00 72.00
2UHD847918FTC 84.13 79.00 18.13 72.00 72.00
2UHD847924FTC 84.13 79.00 24.13 72.00 72.00
2UHD907918FTC 90.13 79.00 18.13 78.00 72.00
2UHD907920FTC 90.13 79.00 20.13 78.00 72.00
2UHD907924FTC 90.13 79.00 24.13 78.00 72.00

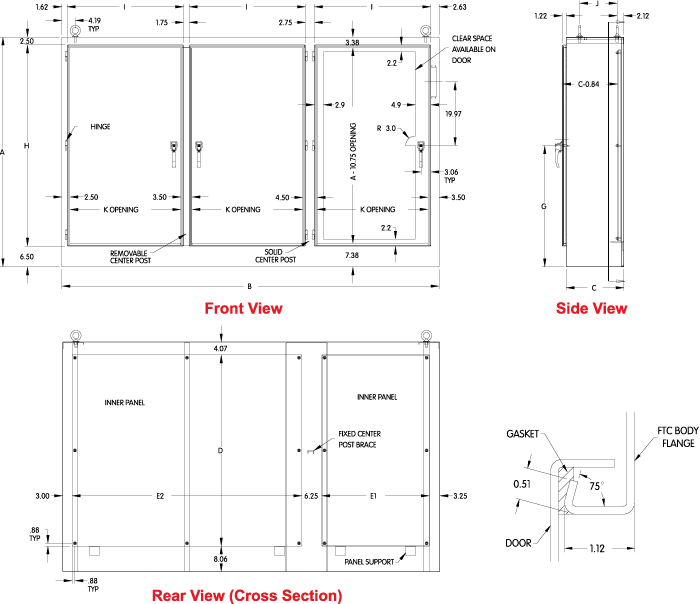

3 Door

Units shown: inch. Switch units to: mm

Enclosure Inner Panels
Part No. H W D H W1 W2
3UHD7210118FTC 72.13 100.25 18.13 60.00 27.75 60.00
3UHD7211918FTC 72.13 118.25 18.13 60.00 33.75 72.00
3UHD8411918FTC 84.13 118.25 18.13 72.00 33.75 72.00
3UHD8411924FTC 84.13 118.25 24.13 72.00 33.75 72.00
3UHD9011924FTC 90.13 118.25 24.13 78.00 33.75 72.00

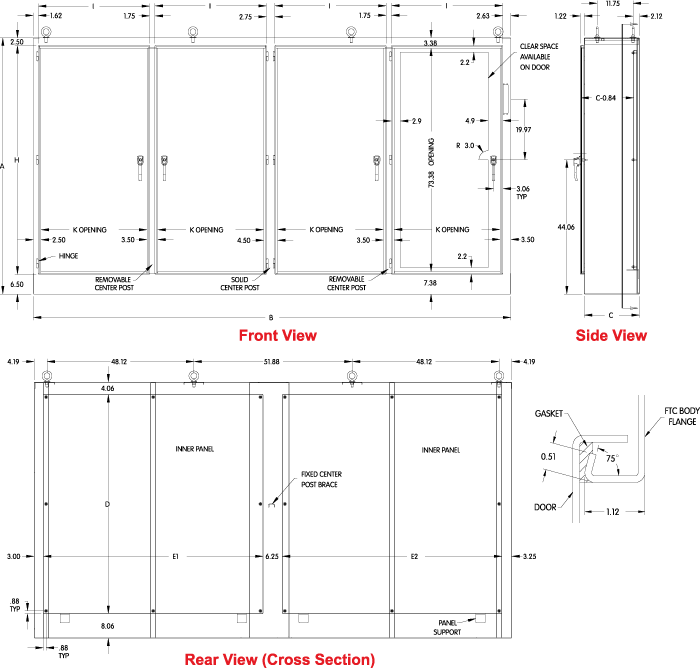

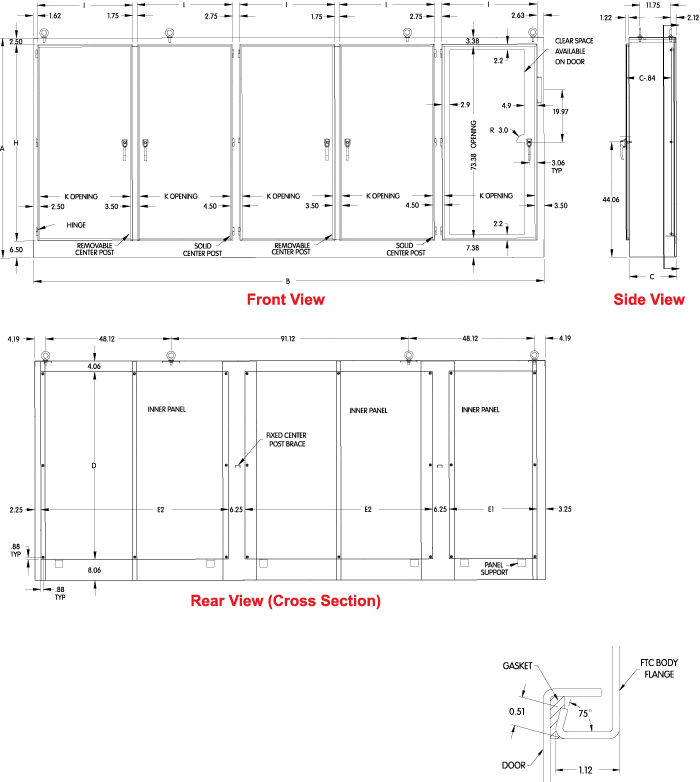

4 Door

Units shown: inch. Switch units to: mm

Enclosure Inner Panels
Part No. H W D H W1 W2
4UHD8415718FTC 84.13 156.50 18.13 72.00 72.00 72.00
4UHD9015718FTC 90.13 156.50 18.13 78.00 72.00 72.00
