UHD Heavy Duty Disconnect Enclosures - NEMA 12
Selection Guide
<< Product Information << Disconnect Enclosures <<

Operator Adaptor Kits
Part No. Operator Make & Type
AKU ABB Controls operating handle
Disconnect Switch DSFHN-HS12
Circuit Breaker K7FHD-HS12

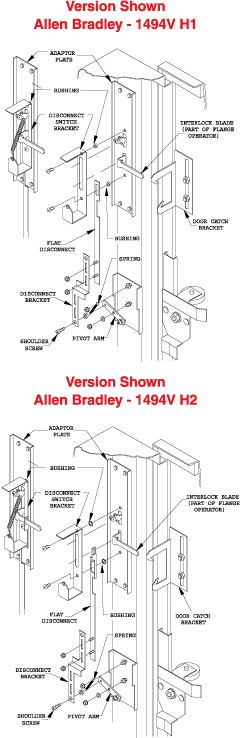

Allen Bradley 1494V variable depth operating handle
Disconnect Switch
30-200 1494V H1
400-600 1494V H2
Circuit breaker 1494V H11
Cutler Hammer operating handle
Disconnect Switch C361H1 or H3
Circuit Breaker
150 amps C371H1 or H3
250 to 600 amps C371H5 or H7
Circuit Breaker C371 Flex-Shaft™ handle mechanism.
General Electric operating handle
Disconnect Switch STDA1or STDA2
Circuit Breaker STDA1or STDA2
Circuit Breaker Spectra-Flex™ cable operators
150 to 600 amps STDA1
K1200 STDA3
Siemens I-T-E Max-Flex™  operating handle
Disconnect Switch, Variable depth FHOHS
Circuit Breaker
  125 to 600 FHOH
  800 to 2000 FHOHN
Square D class 9422 operating mechanism
Disconnect Switch variable depth 9422 type A1
Circuit Breaker  variable depth 9422 type A1
Disconnect Switch with cable mechanism 9422 type A1
Circuit Breaker  with cable mechanism 9422 type A1
AK1494FD Allen Bradley 1494F and D
BPAK Blank Adapter Plate

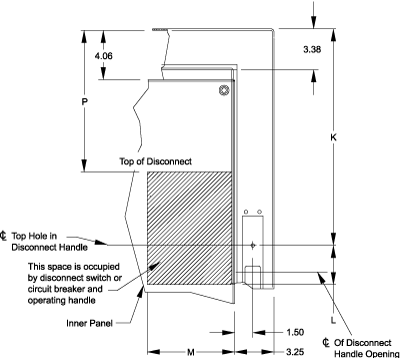

Space Occupied by Disconnects
Note: Disconnects will occupy space on panel shown by dimensions "K", "L", and M". Wiring space "P" is available when disconnect is installed in the enclosure.
*The disconnect information and space occupied tables based on data supplied by disconnect manufacturer’s bulletins. Hammond Manufacturing not responsible for dimensional accuracy.
  • All Universal series enclosures require one adaptor kit (ordered separately) to adapt the type of disconnect and mechanism to be used.
  • Each brand and type requires a different adaptor kit.
  • Each kit contains an adaptor plate and master door interlocking mechanism.
  • Fully detailed, illustrated instructions included.


ABB Controls
Disconnect switch:
  • Flange operated switch (fusible or non-fusible)
  • Shaft:
    • 18.13" deep enclosures use DSFHS-17
    • 20.13" deep enclosures use DSFHS-22
    • 24.13" deep enclosures, platform must be used with shaft (not included)
  • Hhandle: DSFHN-HS12

Circuit breaker:
  • Circuit breaker: ABB
  • Operating mechanism
  • Shaft:
    • 18.13" deep enclosures use K7FHD-S17
    • 20.13" deep enclosures use K7FHD-S22
    • 24.13" deep enclosures, platform must be used with shaft (not included)
  • Handle mechanism: K7FHD-HS12

Allen Bradley
Bulletin 1494F flange mounted disconnect switch:
  • Disconnect switch
  • Fuse block adaptor (if required)
  • Line and load connectors (if required)

1494D flange mounted circuit breaker operating mechanism, order:
  • Circuit breaker: C-H Westinghouse
  • Flange mounted operating mechanism
  • Slide mechanism

Bulletin 1494V flange mounted disconnect switch, order:
  • Disconnect switch
  • Operating handle
  • Connecting rod/rods (long)
  • Trailer fuse block kit (if required)
  • Fuse kit (if required)
  • Line and load connectors (if required)

Bulletin 1494V flange mounted circuit breaker operating mechanism, order:
  • Circuit breaker: C-H Westinghouse
  • Operating mechanism
  • Operating handle
  • Connecting rod (long)
C-H Westinghouse
Type C361 disconnect switch:
  • Disconnect switch with an operating mechanism
  • Operating handle: C361H1 or C361H3
  • In 24.13" deep enclosures, platform must be used with shaft (not included)

Type C371 circuit breaker operating mechanism with a C-H Westinghouse circuit breaker:
  • Circuit breaker
  • Operating mechanism
  • Long operating rod (if required)
  • Operating handle:
    • 150 amp - C371H1 or C371H3
    • 250 through 1200 amp - C371H5 or C371H7

Flex-Shaft™ handle mechanism:
  • Circuit breaker
  • Complete Flex-Shaft™ handle mechanism

General Electric
Disconnect switch:
  • Disconnect switch: Type QMR or QMW
  • Fuse clip kit or no-fuse kit
  • Flange handle: STDA1 or STDA2
  • Variable depth operating mechanism
  • Extended length drive rod (if required)

Circuit breaker:
  • Circuit breaker
  • Flange handle: STDA1 or STDA2
  • Variable depth operating mechanism
  • Extended length drive rod (if required)

Circuit breaker with a Spectra-Flex™ cable operator:
  • Circuit breaker
  • Flange mounted handle mechanism:
    • 150 to 600 amps - STDA1
    • SK1200 - STDA3
  • Breaker mounted mechanism
  • Operating cable
I-T-E Siemens
Disconnect switch:
  • Basic switch (right-hand)
  • Fuse or no-fuse kit
  • Flange mounted handle: FHOHS
  • Switch operator
  • Operating cable FHOEC048

Circuit breaker:
  • Circuit breaker
  • Pressure wire connectors
  • Flange mounted handle:
    • 100 to 600 - FHOH
    • 800 to 2000 - FHOHN
  • Circuit breaker operator mechanism
  • Operating cable:
    • 18.13" deep or 24.13" deep enclosures accept 36" or 48" cables
    • 24.13" deep enclosures require a 48" cable
  • These items are available from Siemens I-T-E as a complete mechanism with a 36" operating cable only Order items separately when using a 48" cable

Square D
Disconnect switch:
  • Disconnect switch with operating mechanism
  • Universal handle mechanism: Type A-1
  • Long operating rod (if required)

Circuit breaker:
  • Circuit breaker
  • Operating mechanism
  • Universal handle mechanism: Type A-1
  • Long operating rod (if required)

Class 9422 Type T disconnect switch with a cable mechanism:
  • Disconnect switch with operating mechanism: Class 9422, Type T
  • Handle mechanism: Class 9422, Type A-1
  • Cable mechanism: Class 9422 CFT_O, 3, 5, or 10 foot

Circuit breaker with a cable mechanism:
  • Circuit breaker: Square D
  • Handle mechanism: Class 9422, type A-1
  • Cable mechanism: Class 9422 CFT_O, 3, 5, or 10 foot

ABB Controls

ABB Controls Disconnect Switches (Flange Mounted Operators)
Fits Enclosure Height ABB Switch
Number		 Amp
Rating		 Fuse Clip Fuse Class Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M
• • • OETL-NF30-F 30A No Fuse — 4.78 7.72 11.80 17.80 20.80
• • • OETL-NF60-F 60A No Fuse — 4.78 7.40 11.80 17.80 20.80
• • • OETL-NF100-F 100A No Fuse — 5.22 8.78 11.37 17.37 20.37
• • • OETL-NF175-F 175A No Fuse — 5.07 7.68 10.48 16.48 19.48
• • • OETL-NF200-F 200A No Fuse — 5.07 8.47 10.48 16.48 19.48
• • • OESA-F30J6-F 30A 30A-600V J 4.78 7.72 11.80 17.80 20.80
• • • OESA-F60J6-F 60A 60A-600V J 4.78 7.40 11.80 17.80 20.80
• • • OESA-F100J6-F 100A 100A-600V J ¹ 5.22 8.78 11.37 17.37 20.37
200A ²
¹ J type fuse clips are standard. If 600 V Type “T” fuse clips are desired order T type fuse adaptor kit.
² 200 A available by using non-fusible 200A switch and a trailing fuse block. (consult ABB)

ABB Controls Circuit Breakers (Flange Mounted Operators)
Fits Enclosure Height ISOMAX Circuit
Breaker		 Amp
Rating		 Operating
Mechanism		 Frame
Type		 Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M
• • • S1N100TL 100A K2FHD-M S1 5.30 4.57 12.33 18.33 21.33
• • • S3N150TW 150A K3FHD-M S3 6.67 4.99 11.73 17.73 20.73
• • • S3N225TW 225A K3FHD-M S3 6.67 4.99 11.73 17.73 20.73
• • • S4N250BW 250A K4FHD-M S4 8.45 4.99 10.20 16.20 19.20
• • • S5N400TW 400A K5FHD-M S5 8.45 6.37 10.20 16.20 19.20
• • • S6N600TW 600A K6FHD-M S6 8.33 9.97 9.53 15.53 18.53
• • • S6N800TW 800A K6FHD-M S6 8.33 9.97 9.53 15.53 18.53
"K" = 11.88 when "A" = 72.13
"K" = 17.88 when "A" = 84.13
"K" = 20.88 when "A" = 90.13
Charts reference Space Occupied by Disconnect Drawing.


Allen Bradley

Allen Bradley 1494F Disconnect Switches
Fits Enclosure Height Allen Bradley
Type Number		 Amp Rating Fuse Clip Fuse Class Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M¹
• • • N30 30A No Fuse — 4.62 6.50 9.31 15.31 18.31
• • • NF30 30A 30A-250V H, K, R 6.50 6.50 9.31 15.31 18.31
• • • NF30 30A 60A-250V H, K, R 7.25 6.50 9.31 15.31 18.31
• • • NF30 30A 30A-600V H, K, R 9.25 6.50 9.31 15.31 18.31
• • • NF30 30A 60A-600V H, K, R 9.75 6.50 9.31 15.31 18.31
• • • NF30 30A 30A-600V J 6.50 6.50 9.31 15.31 18.31
• • • NF30 30A 60A-600V J 6.62 6.50 9.31 15.31 18.31
• • • N60 60A No Fuse — 4.62 6.50 8.62 14.62 17.62
• • • NF60 60A 30A-600V H, K, R 10.38 6.50 8.62 14.62 17.62
• • • NF60 60A 60A-250V H, K, R 8.38 6.50 8.62 14.62 17.62
• • • NF60 60A 100A-250V H, K, R 10.88 6.50 8.62 14.62 17.62
• • • NF60 60A 60A-600V H, K, R 10.88 6.50 8.62 14.62 17.62
• • • NF60 60A 100A-600V H, K, R 12.88 6.62 8.62 14.62 17.62
• • • NF60 60A 60A-600V J 7.75 6.50 8.62 14.62 17.62
• • • NF60 60A 100A-600V J 9.75 6.50 8.62 14.62 17.62
• • • N100 100A No Fuse — 4.62 7.25 6.75 12.75 15.75
• • • NF100 100A 100A-250V H, K, R 11.38 7.38 6.75 12.75 15.75
• • • NF100 100A 200A-250V H, K, R 12.25 7.62 6.75 12.75 15.75
• • • NF100 100A 100A-600V H, K, R 13.38 7.50 6.75 12.75 15.75
• • • NF100 100A 200A-600V H, K, R 14.75 7.75 6.75 12.75 15.75
• • • NF100 100A 100A-600V J 10.12 7.38 6.75 12.75 15.75
• • • NF100 100A 200A-600V J 10.88 7.50 6.75 12.75 15.75
• • • N200 200A No Fuse — 7.12 10.38 5.12 11.12 14.12
• • • NF200 200A 200A-250V H, K, R 15.00 10.38 5.12 11.12 14.12
• • • NF200 200A 400A-250V H, K, R 16.56 10.75 5.12 11.12 14.12
• • • NF200 200A 200A-600V H, K, R 17.56 10.38 5.12 11.12 14.12
• • • NF200 200A 400A-600V H, K, R 19.56 11.00 5.12 11.12 14.12
• • • NF200 200A 200A-600V J 13.69 10.38 5.12 11.12 14.12
• • • NF200 200A 400A-600V J 15.00 10.62 5.12 11.12 14.12
¹"M" dimension does not allow for auxiliary switches. Refer to Allen Bradley instructions if additional space is required.

Allen Bradley 1494D Operators (Circuit Breakers)
Fits Enclosure Height Alan Bradley
Type Number		 Amp
Rating		 Circuit Breker Type Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M¹
• • • N4/N40 150A C-H Westinghouse EHD, FD,
FDB, FDC, HFD, HMCP		 5.81 4.56 9.25 15.25 18.25
• • • N5/N50 250A C-H Westinghouse JD, JDB,
JDC, HJD, HMCP		 8.81 4.75 8.44 14.44 17.44
• • • N5/N60 400A C-H Westinghouse KD, KDB,
DK, HKD, HMCP		 8.81 5.88 8.50 14.50 17.50
1 "M" dimension does not allow for auxiliary switches. Refer to Allen Bradley instructions if additional space is required.

"K" = 9.88 when "A" = 72.13 (except 200A switch) "K" = 8.56 when "A" = 72.13 (200A switch)
"K" = 15.88 when "A" = 84.13 (except 200A switch) "K" = 14.56 when "A" = 84.13 (200A switch)
"K" = 18.88 when "A" = 90.13 (except 200A switch) "K" = 17.56 when "A" = 90.13 (200A switch)

Charts reference Space Occupied by Disconnect Drawing.

Allen Bradley 1494V Operators (Disconnect Switches)
Fits Enclosure Height ABB Switch
Number		 Amp
Rating		 Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 Fuse Clip Fuse Class L M¹
• • • DS30 30A No Fuse — 3.88 6.75 10.00 16.00 19.00
• • • DS30 30A 30A-250V H,K,R 5.25 6.75 10.00 16.00 19.00
• • • DS30 30A 30A-600V H,K,R 8.00 6.75 10.00 16.00 19.00
• • • DS30 30A 30A-600V J 5.25 6.75 10.00 16.00 19.00
• • • DS30 30A 60A-250V H,K 6.00 6.75 10.00 16.00 19.00
• • • DS30 30A 60A-600V H,K 8.50 6.75 10.00 16.00 19.00
• • • DS30 30A 60A-600V J 5.38 6.75 10.00 16.00 19.00
• • • DS60 60A No Fuse — 3.88 6.75 9.81 15.81 18.81
• • • DS60 60A 60A-250V H,K,R 6.00 6.75 9.81 15.81 18.81
• • • DS60 60A 60A-600V H,K,R 8.50 6.75 9.81 15.81 18.81
• • • DS60 60A 60A-600V J 5.38 6.75 9.81 15.81 18.81
• • • DS60 60A 30A-600V H,K,R 8.00 6.75 9.81 15.81 18.81
• • • DS60 60A 100A-250V H,K 8.50 6.75 9.81 15.81 18.81
• • • DS60 60A 100A-600V H,K 10.50 6.75 9.81 15.81 18.81
• • • DS60 60A 100A-600V J 7.25 6.75 9.81 15.81 18.81
• • • DS100² 100A No Fuse — 3.88 6.75 9.81 15.81 18.81
• • • DS100² 100A 100A-250V H,K,R 8.12 6.75 9.81 15.81 18.81
• • • DS100² 100A 100A-600V H,K,R 10.12 6.75 9.81 15.81 18.81
• • • DS100² 100A 100A-600V J 6.80 6.75 9.81 15.81 18.81
• • • DS100² 100A 60A-600V H,K,R 10.12 6.75 9.81 15.81 18.81
• • • DS100² 100A 60A-600V J 8.88 6.75 9.81 15.81 18.81
• • • DS200² 200A No Fuse — 4.75 8.00 8.34 14.34 17.34
• • • DS200² 200A 200A-250V H,K,R 10.88 8.00 8.34 14.34 17.34
• • • DS200² 200A 200A-600V H,K,R 13.88 8.00 8.34 14.34 17.34
• • • DS200² 200A 200A-600V J 9.50 8.00 8.34 14.34 17.34
• • • DS200² 200A 100A-600V H,K,R 12.00 8.00 8.34 14.34 17.34
• • • DS200² 200A 100A-600V J 8.75 8.00 8.34 14.34 17.34
• • DS400 400A No Fuse — 10.75 11.00 10.14 13.14
• • DS400 400A 400A-250V H,K,R 16.12 11.00 10.14 13.14
• • DS400 400A 400A-600V H,K,R 19.12 11.00 10.14 13.14
• • DS400 400A 400A-600V J 14.62 11.00 10.14 13.14
• DS600 600A No Fuse — 10.75 11.00 13.14
• DS600 600A 600A-250V H,R 10.75 11.00 13.14
• DS600 600A 600A-600V H,R 10.75 11.00 13.14
• DS600 600A 600A-600V J 17.59 11.00 13.14
1 Series B
2 "M" dimension does not allow for auxiliary switches

Allen Bradley 1494V Operators (Circuit Breakers)
Fits Enclosure Height Alan Bradley
Type Number		 Amp Rating Frame Type Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M¹
• • • M40 15A-150A C-H Westinghouse
EHD,FD,FDB,FDC,HFD,HMCP		 5.00 4.62 11.25 17.25 20.25
• • • M50 70A-250A C-H Westinghouse
JD,JDB,JDC,HJD,HMCP		 9.75 4.88 10.81 16.81 19.81
• • • M60 100A-400A C-H Westinghouse
KD,KDB,DK,HKD,HMCP		 9.69 6.25 10.62 16.62 19.62
1"M" dimension does not allow for auxiliary switches. Refer to Allen Bradley instructions if additional space is required.

"K" = 11.88 when "A" = 72.13
"K" = 17.88 when "A" = 84.13, except 400A or 600A switches
"K" = 20.88 when "A" = 90.13, except 400A or 600A switches
"K" = 16.43 when "A" = 84.13, 400A switches only
"K" = 19.43 when "A" = 90.13, 400A and 600A switches only

Charts reference Space Occupied by Disconnect Drawing.

Cutler Hammer

Cutler Hammer C361 Disconnect Switches
Fits Enclosure Height Cutler Hammer
Type Number		 Amp
Rating		 Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 Fuse Clip Fuse Class L M¹
• • • C361NC 30A No Fuse — 5.75 7.55 10.50 16.50 19.50
• • • C361SC21 30A 30A-250V H, K, R 8.38 7.55 10.50 16.50 19.50
• • • C361SC61 30A 60A-250V H, K, R 8.38 7.55 10.50 16.50 19.50
• • • C361SC61 30A 30A-600V H, J, K, R 8.38 7.55 10.50 16.50 19.50
• • • C361ND 60A No Fuse — 5.75 7.55 10.50 16.50 19.50
• • • C361SD22 60A 60A-250V H, K, R 8.38 7.55 10.50 16.50 19.50
• • • C361SD22 60A 30A-600V J 8.38 7.55 10.50 16.50 19.50
• • • C361SD62 60A 60A-600V H, K, R 8.38 7.55 10.50 16.50 19.50
• • • C361SD62 60A 60A-600V J 8.38 7.55 10.50 16.50 19.50
• • • C361NE 100A No Fuse — 5.56 9.07 10.06 16.06 19.06
• • • C361SE263 100A 100A-250V H, K, R 10.31 9.07 10.06 16.06 19.06
• • • C361SE263 100A 100A-600V H, K, R 10.31 9.07 10.06 16.06 19.06
• • • C361SE263 100A 100A-600V J 10.31 9.07 10.06 16.06 19.06
• • • C361NF 200A No Fuse — 13.06 10.12 8.06 14.12 17.12
• • • C361SF264 200A 200A-250V H, K, R 13.06 10.12 8.06 14.12 17.12
• • • C361SF264 200A 200A-600V H, K, R 13.06 10.12 8.06 14.12 17.12
1 "M" dimension does not allow for auxiliary switches. Refer to Cutler Hammer instructions if additional space is required.

"K" = 11.88 when "A" = 72.13
"K" = 17.88 when "A" = 84.13
"K" = 20.88 when "A" = 90.13

Cutler Hammer C371 Circuit Breaker (C-H Westinghouse Circuit Breakers)
Fits Enclosure Height Cutler Hammer
Mechanisms		 Amp
Rating		 Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 Frame Type L M
• • • C371E 150A F Frame EHD,FDB,FD,HFD,FDC 6.00 5.62 11.62 17.62 20.62
• • • C371E 150A F Frame HMCP 6.00 5.62 11.62 17.62 20.62
• • • C371F 250A J Frame JDB,JD,HJD,JDC 8.94 8.12 11.44 17.44 20.50
• • • C371F 250A J Frame HMCP 10.94 8.12 11.44 17.44 20.50
• • • C371F 400A K Frame DK,KDB,KD,HKD 9.75 8.12 11.00 17.00 20.00
• • • C371F 400A K Frame HMCP 9.75 8.12 11.00 17.00 20.00
• • • C371G 600A L Frame LD,HLD,LDC 8.44 12.00 9.38 15.38 18.38
• • C371G 600A L Frame HMCP 8.44 12.00 9.38 15.38 18.38
• • C371K 800A M Frame MD,MDS 10.25 12.00 — 11.81 14.81
¹ • C371K 1200A M Frame ND,HND,NDC 10.25 12.00 — 11.81 14.81
1 Wire bend space "P" does not allow cable sizes larger than 350 MCM in an 84.13" tall enclosure when 4 cables per terminal used.
Refer to NATIONAL ELECTRIC Code 2005 table 312-6(b) for details.
Wire bend space "P" is compatible with C-H Westinghouse breakers with TA1201NB1 terminals.

"K" = 11.88 when "A" = 72.13
"K" = 17.88 when "A" = 84.13
"K" = 20.88 when "A" = 90.13

Charts reference Space Occupied by Disconnect Drawing.

Cutler Hammer Flex-Shaft™ Operator Mechanisms (C-H Westinghouse Circuit Breakers)
Complete Operator Breaker Height "X" Breaker Width "Y"
Mechanisms Amp  Rating Frame Type (in inches) (in inches)
F1S03 150A F Frame EHD,FDB,FD,HFD 6.00 4.12
F1S03 150A F Frame HMCP 6.00 4.12
F2S03 250A J  Frame JDB,JD,HJD,JDC 10.00 4.12
F2S03 250A J  Frame HMCP 10.00 4.12
F3S03 400A K  Frame DK,KDB,KD,HKD 10.12 5.50
F3S03 400A K  Frame HMCP 12.45 5.50
F4S04 600A L  Frame LD,HLD,LDC 10.75 8.25
F4S04 600A L  Frame HMCP 12.50 8.25
F7S04 800A M Frame MD,MDS 16.00 8.25
F5S04 1200A N Frame ND,HND,NDC 16.00 8.25
F6S04 2500A R Frame RD,CRD, RDC 16.00 15.50
Part numbers for Complete Operator Mechanisms include flange mounted handle, flexible shaft and circuit breaker mechanism.
The last digit of the part number denotes the shaft length (F1S03=3' length).

  • F,J,K frame Flex-Shafts™ available in 3' to 10' lengths.
  • L,N,R frame Flex-Shafts™ available in 4' to 6' lengths.



Space Occupied By Disconnect
1. Flex-Shaft™ System permits circuit breaker locations separate from flange mounted handle mechanism.
2. See National Electrical Code 2005 article 430-10(b) for wiring space (Ref “P”) required for line side conductors.
3. Select shaft length based on location of circuit breaker in the enclosure. Maintain a 4" minimum bending radius for the Flex-Shaft™.
4. Space occupied by circuit breaker is calculated by:


  • Overall (Height "X" and Width "Y")
  • Minimum wire bend space (manufacturer specified)
  • Location "M" from right to left.

Charts reference Space Occupied by Disconnect Drawing.



General Electric

General Electric Type STDA Disconnect Switch Operators
Fits Enclosure Height General Electric
Switch
Mechanisms		 Amp
Rating		 Fuse Clip Fuse Class Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M
• • • TDOM1A 30A No Fuse — 6.88 5.38 12.38 18.38 21.38
• • • TDOM1A 30A 30A-250V H, R 6.88 5.38 12.38 18.38 21.38
• • • TDOM1B 30A 30A-600V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 30A 60A-250V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 30A 60A-600V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1A 60A No Fuse — 6.88 5.38 12.38 18.38 21.38
• • • TDOM1B 60A 60A-250V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 60A 60A-600V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 60A 100A-250V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 60A 100A-600V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1A 100A No Fuse — 6.88 5.38 12.38 18.38 21.38
• • • TDOM1B 100A 100A-250V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 100A 100A-600V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 100A 200A-250V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM1B 100A 200A-600V H, R 11.50 5.38 12.38 18.38 21.38
• • • TDOM2 200A No Fuse — 7.00 9.25 9.69 15.69 18.69
• • • TDOM2 200A 200A-250V H, R 15.38 9.25 9.69 15.69 18.69
• • • TDOM2 200A 200A-600V H, R 15.38 9.25 9.69 15.69 18.69


General Electric Type STDA Circuit Breaker Operators
Fits Enclosure Height General Electric
Circuit Breaker
Mechanisms		 Amp Rating Frame Type Space Occupied When
A=72.13
P		 When
A=84.13
P		 When
A=90.13
P
72.13 84.13 90.13 L M
• • • SDOM1A 150A TEB, TED, THED 6.88 5.38 11.24 17.24 20.24
• • • SDOM1A 150A TEC 6.88 5.38 11.24 17.24 20.24
• • • TDOM1B 150A TB1 11.50 5.38 11.24 17.24 20.24
• • • TDOM1B 150A TEC, TECL 11.50 5.38 11.24 17.24 20.24
• • • TDOM1C 150A TEL 6.88 5.38 11.24 17.24 20.24
• • • TDOM1D 150A THLC1 6.88 5.38 9.87 15.87 18.87
• • • TDOM3 225A TFJ 10.38 5.88 10.81 16.81 19.81
• • • TDOM3 225A TFK, THFK, TFL 10.38 5.88 10.81 16.81 19.81
• • • TDOM4 400A TJJ, TJK4, THJK4, TJL4V 8.25 9.50 9.91 15.91 18.91
• • • TDOM4 600A TJK6, THJK6, TJ4V, TJL4V 8.25 9.50 9.91 15.91 18.91
• • • TDOM5 400A TB4, TJH6S 14.25 9.50 9.91 15.91 18.91
• • TDOM6 225A TLB2, THLC2 11.75 9.50 — 15.35 18.35
• • TDOM6 400A TLB4, THLC4 11.75 9.50 — 13.97 16.97
• TDOM6 800/1200A TKMA, THKMA, TK4V 11.75 9.50 — — 18.38
• TDOM6 1200A TK4BV, THK4V 11.75 9.50 — — 18.38
• • TDOM7 600A TB6 18.12 9.50 — 12.25 15.25
• • TDOM7 800A TB8 18.12 9.50 — 12.25 15.25
• TDOM7 1200A TKL12S 18.12 9.50 — — 15.25
• • • SD0M1A 150A SE150 6.88 5.38 11.24 17.24 20.24
• • • SD0M3 250A SPECTRA SF250 10.38 5.88 10.81 16.81 19.81
• • SD0M4 600A SPECTRA SG600 10.00 7.12 — 13.18 16.18

"K" = 11.88 when "A" = 72.13
"K" = 17.88 when "A" = 84.13
"K" = 20.88 when "A" = 90.13

Charts reference Space Occupied by Disconnect Drawing.



General Electric Circuit Breakers (Spectra-Flex™ Cable Operators)
Fits Enclosure Height Circuit Breaker Height Circuit Breaker Width
72.13 84.13 90.13 Max Frame Size Amp Rating "X" "Y"
• • • E150 150A 6.31 4.12
• • • SE150 150A 6.31 4.12
• • • SF250 250A 10.12 4.12
• • • SG600 600A 10.09 5.50
• • • SK1200 1200A 15.50 8.25
Note: All 2HD & UHDM series enclosures that are 24.13" deep require a 48" or longer operating cable

Frame Size Breaker Mechanism Flange Mounting Handle¹ Operating Cable²
E150 SCOM1A SCH1 SC3L
SE150/SF250 SCOM1EF SCH1 SC3L
SG600 SCOM1G SCH1 SC3L
SK1200 SCOM1K SCH2k
