Hammond Mfg. - Type 12 Freestanding Modular Disconnect (UHDM Series)

UHDM Modular Disconnect Enclosures - NEMA 12
ABB Controls, Allen Bradley, Cutler Hammer, General Electric, Siemens I-T-E Max-Flex™, Square D

<< Product Information << Disconnect Enclosures <<

Application

Designed to bolt together in any number of units for maximum flexibility and ease of transportation. The UHDM system consists of a Master enclosure to house the flange mounted disconnect switch and interlocking Slave enclosures which may be added or removed as required. Master enclosure units will accept the following disconnect switches and circuit breakers: ABB Controls flange mounted variable depth operating mechanism for disconnect switches and circuit breakers. Allen Bradley 1494F flange mounted disconnect switches and 1494D flange mounted operators for circuit breakers. Allen Bradley 1494V variable depth flange operated disconnect switches and circuit breaker mechanisms. C-H Westinghouse Type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex Shaft™ handle operators for circuit breakers. General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex™ cable operators for circuit breakers. I-T-E Max-Flex™ flange mounted variable depth operating handles for disconnect switches and circuit breakers. Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or Class 9422TG1 or TG2 devices.

Standards
UL 508 Type 12 CSA Type 12 Complies with NEMA Type 12 JIC EGP-1-1967 and EMP-1-1967 IEC 60529, IP54 Appropriate components are required to maintain these standards.

Construction
Formed from 10 gauge steel with smooth continuously welded seams. Body stiffeners are provided in the larger enclosures for extra rigidity. Heavy duty lifting eyes are anchored into reinforced top corners. Removable doors are secured with heavy duty lift off hinges. Flange trough collar (FTC) around door excludes liquids and contaminants. Formed 10 gauge steel inner panels are provided on collar studs. Panel supports are provided. Center post is removable, providing easy panel installation. Heavy duty three point latching door mechanism. Side openings are reinforced to provide structural strength, smooth edges and preset gasket compression. Oil resistant gaskets on doors and side openings are permanently secured. No gasket kit is provided. Master door handle complete with screw defeater and padlock hasp. Slave door handle complete with padlock hasp. A mechanical interlock activated by the master door prevents the auxiliary door from being opened first. The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit. A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided.

Note:
Disconnect switches, circuit breakers and operators are not provided with the enclosure, and must be ordered separately from the manufacturer.

Finish
Door and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating on the outside. Interior - white powder coating. Inner panel is finished in white powder coating.

Accessories
Air conditioners Blank adaptor plates Blowers Breather Kits Door Stop Kit Enclosure Stabilizers Filter fans	Floor Stand Kits Heaters Light kits Operator adaptor kits Thermostats Window Kits

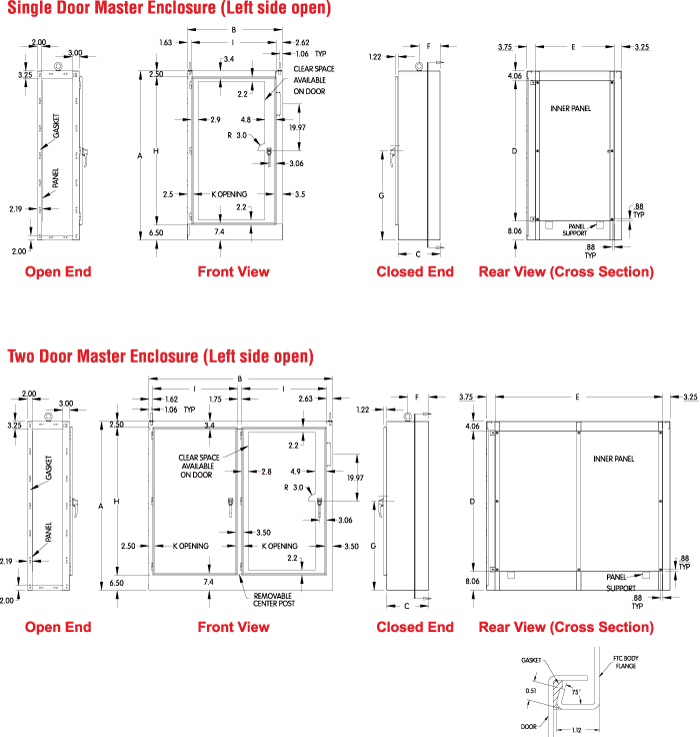

Master Enclosures

	Overall Dimensions										Ship Wt. lbs.
Part No.	A	B	C	D	E	F	G	H	I	K	Ship Wt. lbs.	Description
UHDM724118MFTC	72.13	40.75	18.13	60	33.75	9.06	38.06	63.13	36.5	34.75	506	Single Door Disconnect
UHDM844118MFTC	84.13	40.75	18.13	72	33.75	9.06	44.06	75.13	36.5	34.75	573	Left side open
UHDM844124MFTC	84.13	40.75	24.13	72	33.75	12.06	44.06	75.13	36.5	34.75	658
UHDM727918MFTC	72.13	79.00	18.13	60	72.00	9.06	38.06	63.13	36.5	34.75	918	Two Door Disconnect
UHDM847918MFTC	84.13	79.00	18.13	72	72.00	9.06	44.06	75.13	36.5	34.75	1050	Left side open
UHDM847924MFTC	84.13	79.00	24.13	72	72.00	12.06	44.06	75.13	36.5	34.75	1150

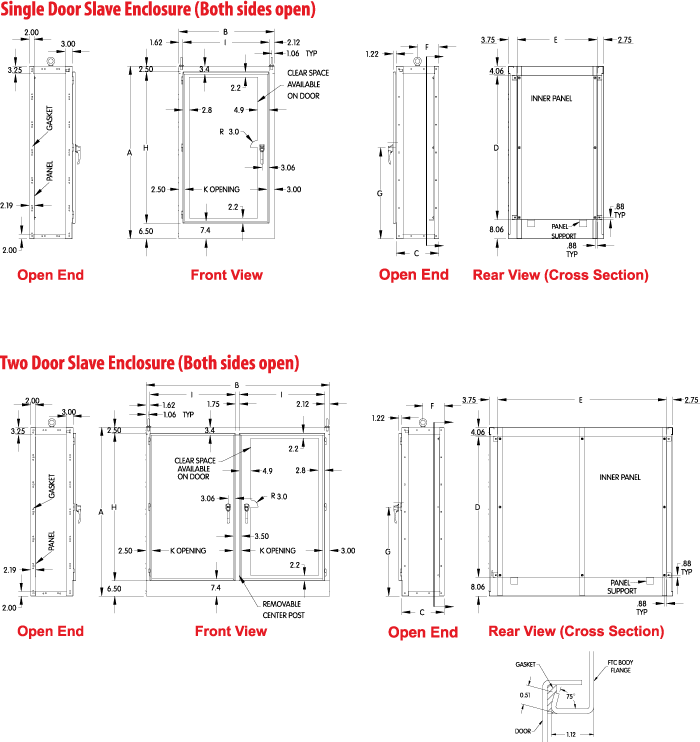

Slave Enclosures

	Overall Dimensions										Ship Wt.
Part No.	A	B	C	D	E	F	G	H	I	K	lbs.	Description
UHDM724118SFTC	72.13	40.25	18.13	60	33.75	9.06	38.06	63.13	36.5	34.75	473	Single Door Slave
UHDM844118SFTC	84.13	40.25	18.13	72	33.75	9.06	44.06	75.13	36.5	34.75	550	Both sides open
UHDM844124SFTC	84.13	40.25	24.13	72	33.75	12.06	44.06	75.13	36.5	34.75	570
UHDM727818SFTC	72.13	78.50	18.13	60	72.00	9.06	38.06	63.13	36.5	34.75	888	Two Door Slave
UHDM847818SFTC	84.13	78.50	18.13	72	72.00	9.06	44.06	75.13	36.5	34.75	1010	Both sides open
UHDM847824SFTC	84.13	78.50	24.13	72	72.00	12.06	44.06	75.13	36.5	34.75	1060

Operator Adaptor Kits

Part No.	Operator Make & Type
AKU	ABB Controls operating handle
	Disconnect Switch		DSFHN-HS12
	Circuit Breaker		K7FHD-HS12
	Allen Bradley 1494V variable depth operating handle
	Disconnect Switch
	30-200		1494V H1
	400		1494V H2
	Circuit breaker		1494V H11
	Cutler Hammer operating handle		C361H1 or H3
	Disconnect Switch		C371H1 or H3
	Circuit Breaker		C371H5 or H7
		150 amps
		250 to 1200 amps
	Circuit Breaker C371 Flex-Shaft™ handle mechanism.
	General Electric operating handle
	Disconnect Switch		STDA1or STDA2
	Circuit Breaker		STDA1or STDA2
	Circuit Breaker Spectra-Flex™ cable operators
		150 to 600 amps	STDA1
		sk1200	STDA3
	Siemens I-T-E Max-Flex™ operating handle
	Disconnect Switch, Variable depth		FHOHS
	Circuit Breaker
	125 to 600		FHOH
	800 to 2000		FHOHN
	Square D class 9422 operating mechanism
	Disconnect Switch variable depth		9422 type A1
	Circuit Breaker variable depth		9422 type A1
	Disconnect Switch with cable mechanism		9422 type A1
	Circuit Breaker with cable mechanism		9422 type A1
AK1494FD	Allen Bradley		1494F and D
BPAK	Blank Adapter Plate

Space Occupied by Disconnects

Note: Disconnects will occupy space on panel shown by dimensions "K", "L", and M". Wiring space "P" is available when disconnect is installed in the enclosure.
*The disconnect information and space occupied tables based on data supplied by disconnect manufacturer’s bulletins. Hammond Manufacturing not responsible for dimensional accuracy.

All Universal series enclosures require one adaptor kit (ordered separately) to adapt the type of disconnect and mechanism to be used.
Each brand and type requires a different adaptor kit.
Each kit contains an adaptor plate and master door interlocking mechanism.
Fully detailed, illustrated instructions included.

Note: Click Here for a list of disconnect switches and circuit breakers to fit 72.12" and 84.12" enclosures.

Disconnect Ordering Information

ABB Controls

Disconnect switch:

Flange operated switch (fusible or non-fusible)
Shaft:
- 18.13" deep enclosures use DSFHS-17
- 24.13" deep enclosures, platform must be used with shaft (not included)
Handle: DSFHN-HS12

Circuit breaker:

Circuit breaker: ABB
Operating mechanism
Shaft:
- 18.13" deep enclosures use K7FHD-S17
- 24.13" deep enclosures, platform must be used with shaft (not included)
Handle mechanism: K7FHD-HS12

Allen Bradley

Bulletin 1494F flange mounted disconnect switch:

Disconnect switch
Fuse block adaptor (if required)
Line and load connectors (if required)

1494D flange mounted circuit breaker operating mechanism:

Circuit breaker: C-H Westinghouse
Flange mounted operating mechanism
Slide mechanism

Bulletin 1494V flange mounted disconnect switch:

Disconnect switch
Operating handle
Connecting rod/rods (long)
Trailer fuse block kit (if required)
Fuse clip kit (if required)
Line and load connectors (if required)

Bulletin 1494V flange mounted circuit breaker operating mechanism:

Circuit breaker: C-H Westinghouse
Operating mechanism
Operating handle
Connecting rod (long)

C-H Westinghouse

Type C361 disconnect switch:

Disconnect switch with an operating mechanism
Operating handle: C361H1 or C361H3
In 24.13" deep enclosures, platform must be used with shaft (not included)

Type C371 circuit breaker operating mechanism with a C-H Westinghouse circuit breaker:

Circuit breaker
Operating mechanism
Long operating rod (if required)
Operating handle:
- 150 amp - C371H1 or C371H3
- 250 through 1200 amp - C371H5 or C371H7

Flex-Shaft™ handle mechanism:

Circuit breaker
Complete Flex-Shaft™ handle mechanism

General Electric

Disconnect switch:

Disconnect switch: Type QMR or QMW
Fuse clip kit or no-fuse kit
Flange handle: STDA1 or STDA2
Variable depth operating mechanism
Extended length drive rod (if required)

Circuit breaker:

Circuit breaker
Flange handle: STDA1 or STDA2
Variable depth operating mechanism
Extended length drive rod (if required)

Circuit breaker with a Spectra-Flex™ cable operator:

Circuit breaker
Flange mounted handle mechanism:
- 150 to 600 amps - STDA1
- SK1200 - STDA3
Breaker mounted mechanism
Operating cable

I-T-E Siemens

Disconnect switch:

Basic switch (right-hand)
Fuse or no-fuse kit
Flange mounted handle: FHOHS
Switch operator
Operating cable: FHOEC048

Circuit breaker:

Circuit breaker
Pressure wire connectors
Flange mounted handle:
- 100 to 600 - FHOH
- 800 to 2000 - FHOHN
Circuit breaker operator mechanism
Operating cable:
- 18.13" deep enclosures accept 36" or 48" cables;
- 24.13" deep enclosures require a 48" cable
These items are available from Siemens I-T-E as a complete mechanism with a 36" operating cable only Order items separately when using a 48" cable

Square D

Disconnect switch:

Disconnect switch with operating mechanism
Universal handle mechanism: Type A-1
Long operating rod (if required)

Circuit breaker:

Circuit breaker
Operating mechanism
Universal handle mechanism: Type A-1
Long operating rod (if required)

Class 9422 Type T disconnect switch with a cable mechanism:

Disconnect switch with operating mechanism: Class 9422, Type T
Handle mechanism: Class 9422, Type A-1
Cable mechanism: Class 9422 CFT_O, 3, 5, or 10 foot

Circuit breaker with a cable mechanism:

Circuit breaker: Square D
Handle mechanism: Class 9422, type A-1
Cable mechanism: Class 9422 CFT_O, 3, 5, or 10 foot

Formed End Plates and Flat End Plates

Formed from 12 gauge steel.
Used to enclose the open end(s) of one or more modular enclosures.
Two types are available. No separate gasket kit is required.

Formed End Plate

Part No.	A	B
UHDM7218ECA	71.86	17.87
UHDM8418ECA	83.87	17.87
UHDM8424ECA	83.87	23.87

*Mounting Hardware Included

Flat End Plate

Part No.	A	B
UHDM7218EPA	71.86	17.87
UHDM8418EPA	83.87	17.87
UHDM8424EPA	83.87	23.87

*Mounting Hardware Included

Flat Barrier Plate

Formed from 14 gauge steel.
May be used to provide a barrier between modular enclosures. They are supplied complete with gasket.

Part No.	A	B
UHDM7218BPA	71.86	17.87
UHDM8418BPA	83.87	17.87
UHDM8424BPA	83.87	23.87

*Mounting Hardware Included

Panel Bridge Kit

Formed from 10 gauge steel.
May be used to join back panels together between modular enclosures to provide a continuous panel surface.

Part No.	L
UHDMFTC72BK	60
UHDMFTC84BK	72
