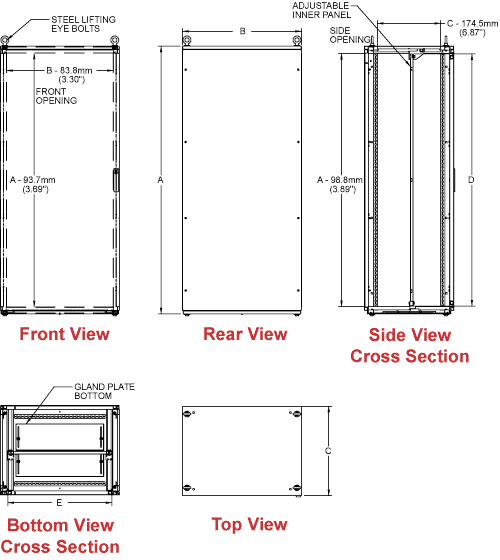

Search: Home News Our Products Industrial Enclosures Corrosion Resistant Enclosures Disconnect Enclosures Modular Freestanding Enclosures Operator Interface Enclosures Wireway & Trough Commercial Enclosures Climate Control Products General Accessories Technical Information Hoffman Cross Reference Downloads CAD Drawings and Bulletins Climate Control Sizing Software List Prices Where to Buy Literature Contact Us Modular Freestanding Enclosures - NEMA 12 HME Series Single Door Enclosure << Product Information << Modular Freestanding Enclosures << Application The HME product line provides users with a rugged housing for industrial control and operator interface in industrial environments. Modular design permits joining of units together for large scale and mixed use applications. Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility. A broad range of industry standard sizes are offered. Standards UL 508 Type 12 CSA Type 12 Complies with NEMA Type 12 IEC 60529 IP54 Configuration Frame Removable solid top panel Lifting eyebolts (4) Removable bottom panel w/gland plates Solid front door with door frame Removable rear cover panel Inner mounting panel Construction Formed 14 gauge steel. Fully welded frame with 25mm hole pattern for superior mounting flexibility. Seamless foam in place gasket. Reinforced eyebolts are provided for easy enclosure lifting. Frames can be joined together with an optional joining kit. Doors can be easily interchanged, removed and/or reversed. Door opening 135°. Optional formed 14 gauge steel side panels are sold separately (in pairs). Bonding and grounding studs are provided for all doors and panels. Finish Phosphatized and finished in RAL 7035 light gray powder coating. Inner panel is unpainted galvanized 12 gauge steel. Accessories 19" mounting rails Casters Cooling - ACs Cooling - fans Door shelf Frame joining kit Grid mounting system Handles and inserts Interlock system Leveling feet Light kit and accessories Literature pocket Panel - Bridge Panel - Barrier Swing Panel Swing Frame Plinth Side panels Tamper resistant screws Top mount cable module   Back to Top   Overall Dimensions Panel Dimensions Part Number   A B C D E HME1465 mm 1400 600 500 1296 499 inch 55.12 23.62 19.69 51.03 19.65 HME1466 mm 1400 600 600 1296 499 inch 55.12 23.62 23.62 51.03 19.65 HME1468 mm 1400 600 800 1296 499 inch 55.12 23.62 31.5 51.03 19.65 HME1485 mm 1400 800 500 1296 699 inch 55.12 31.5 19.69 51.03 27.52 HME1486 mm 1400 800 600 1296 699 inch 55.12 31.5 23.62 51.03 27.52 HME1488 mm 1400 800 800 1296 699 inch 55.12 31.5 31.5 51.03 27.52 HME1665 mm 1600 600 500 1496 499 inch 62.99 23.62 19.69 58.9 19.65 HME1666 mm 1600 600 600 1496 499 inch 62.99 23.62 23.62 58.9 19.65 HME1668 mm 1600 600 800 1496 499 inch 62.99 23.62 31.5 58.9 19.65 HME1685 mm 1600 800 500 1496 699 inch 62.99 31.5 19.69 58.9 27.52 HME1686 mm 1600 800 600 1496 699 inch 62.99 31.5 23.62 58.9 27.52 HME1688 mm 1600 800 800 1496 699 inch 62.99 31.5 31.5 58.9 27.52 HME1864 mm 1800 600 400 1696 499 inch 70.87 23.62 15.75 66.77 19.65 HME1865 mm 1800 600 500 1696 499 inch 70.87 23.62 19.69 66.77 19.65 HME1866 mm 1800 600 600 1696 499 inch 70.87 23.62 23.62 66.77 19.65 HME1868 mm 1800 600 800 1696 499 inch 70.87 23.62 31.5 66.77 19.65 HME1884 mm 1800 800 400 1696 699 inch 70.87 31.5 15.75 66.77 27.52 HME1885 mm 1800 800 500 1696 699 inch 70.87 31.5 19.69 66.77 27.52 HME1886 mm 1800 800 600 1696 699 inch 70.87 31.5 23.62 66.77 27.52 HME1888 mm 1800 800 800 1696 699 inch 70.87 31.5 31.5 66.77 27.52 HME18104 mm 1800 1000 400 1696 899 inch 70.87 39.37 15.75 66.77 35.4 HME18105 mm 1800 1000 500 1696 899 inch 70.87 39.37 19.69 66.77 35.4 HME18106 mm 1800 1000 600 1696 899 inch 70.87 39.37 23.62 66.77 35.4 HME18108 mm 1800 1000 800 1696 899 inch 70.87 39.37 31.5 66.77 35.4 HME2045 mm 2000 400 500 1896 299 inch 78.74 15.75 19.69 74.65 11.77 HME2064 mm 2000 600 400 1896 499 inch 78.74 23.62 15.75 74.65 19.65 HME2065 mm 2000 600 500 1896 499 inch 78.74 23.62 19.69 74.65 19.65 HME2066 mm 2000 600 600 1896 499 inch 78.74 23.62 23.62 74.65 19.65 HME2068 mm 2000 600 800 1896 499 inch 78.74 23.62 31.5 74.65 19.65 HME2084 mm 2000 800 400 1896 699 inch 78.74 31.5 15.75 74.65 27.52 HME2085 mm 2000 800 500 1896 699 inch 78.74 31.5 19.69 74.65 27.52 HME2086 mm 2000 800 600 1896 699 inch 78.74 31.5 23.62 74.65 27.52 HME2088 mm 2000 800 800 1896 699 inch 78.74 31.5 31.5 74.65 27.52 HME20105 mm 2000 1000 500 1896 899   inch 78.74 39.37 19.69 74.65 35.4 HME20106 mm 2000 1000 600 1896 899 inch 78.74 39.37 23.62 74.65 35.4 HME20108 mm 2000 1000 800 1896 899 inch 78.74 39.37 31.5 74.65 35.4 HME2246 mm 2200 400 600 2096 299 inch 86.62 15.75 23.62 82.52 11.77 HME2265 mm 2200 600 500 2096 499 inch 86.62 23.62 19.69 82.52 19.65 HME2266 mm 2200 600 600 2096 499 inch 86.62 23.62 23.62 82.52 19.65 HME2285 mm 2200 800 500 2096 699 inch 86.62 31.5 19.69 82.52 27.52 HME2286 mm 2200 800 600 2096 699 inch 86.62 31.5 23.62 82.52 27.52 HME2288 mm 2200 800 800 2096 699 inch 86.62 31.5 31.5 82.52 27.52 HME22105 mm 2200 1000 500 2096 899 inch 86.62 39.37 19.69 82.52 35.4 HME22106 mm 2200 1000 600 2096 899 inch 86.62 39.37 23.62 82.52 35.4   © Copyright 2012. Hammond Manufacturing Ltd. All rights reserved. Go Back a Page | Top of Page | Home | Contact Webmaster | Contact Us
