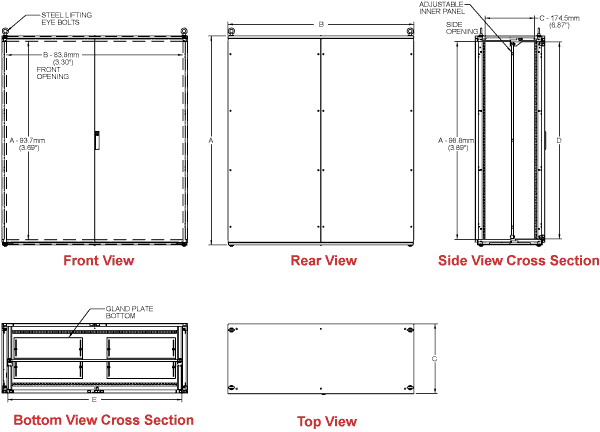

Search: Home News Our Products Industrial Enclosures Corrosion Resistant Enclosures Disconnect Enclosures Modular Freestanding Enclosures Operator Interface Enclosures Wireway & Trough Commercial Enclosures Climate Control Products General Accessories Technical Information Hoffman Cross Reference Downloads CAD Drawings and Bulletins Climate Control Sizing Software List Prices Where to Buy Literature Contact Us Modular Freestanding Enclosures - NEMA 12 HMET Series Double Door Enclosure << Product Information << Modular Freestanding Enclosures << Application The HMET 2 door product line provides users with a rugged housing for industrial control and operator interface in industrial environments. Modular design permits joining of units together for large scale and mixed use applications. Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility. A broad range of industry standard sizes are offered. Standards UL 508 Type 12 CSA Type 12 Complies with NEMA Type 12 IEC 60529 IP54 Configuration Frame Removable solid top panel Lifting eyebolts (4) Removable bottom panel w/gland plates Two overlapping solid front doors with door frames Two removable rear cover panels with removable rear center post Full width inner mounting panel Construction Formed 14 gauge steel. Fully welded frame with 25mm hole pattern for superior mounting flexibility. Seamless foam in place gasket. Reinforced eyebolts are provided for easy enclosure lifting. Frames can be joined together with an optional joining kit. Doors can be easily interchanged, removed and/or reversed. Door opening 135°. Optional formed 14 gauge steel side panels are sold separately (in pairs). Bonding and grounding studs are provided for all doors and panels. Finish Phosphatized and finished in RAL 7035 light gray powder coating. Inner panel is unpainted galvanized 12 gauge steel. Accessories 19" mounting rails Casters Cooling - ACs Cooling - fans Door shelf Frame joining kit Grid mounting system Handles and inserts Interlock system Leveling feet Light kit and accessories Literature pocket Panel - Bridge Panel - Barrier Plinth Side panels Tamper resistant screws Top mount cable module   Back to Top   Overall Dimensions Panel Dimensions Part Number   A B C D E HMET14125 mm 1400 1200 500 1296 1099 inch 55.12 47.25 19.69 51.03 43.27 HMET14126 mm 1400 1200 600 1296 1099 inch 55.12 47.25 23.62 51.03 43.27 HMET14128 mm 1400 1200 800 1296 1099 inch 55.12 47.25 31.5 51.03 43.27 HMET16125 mm 1600 1200 500 1496 1099 inch 62.99 47.25 19.69 58.9 43.27 HMET16126 mm 1600 1200 600 1496 1099 inch 62.99 47.25 23.62 58.9 43.27 HMET16128 mm 1600 1200 800 1496 1099 inch 62.99 47.25 31.5 58.9 43.27 HMET1886 mm 1800 800 600 1696 699 inch 70.87 31.5 23.62 66.77 27.52 HMET1885 mm 1800 800 500 1696 699 inch 70.87 31.5 19.69 66.77 27.52 HMET18104 mm 1800 1000 400 1696 899 inch 70.87 39.37 15.75 66.77 35.4 HMET18124 mm 1800 1200 400 1696 1099 inch 70.87 47.25 15.75 66.77 43.27 HMET18125 mm 1800 1200 500 1696 1099 inch 70.87 47.25 19.69 66.77 43.27 HMET18126 mm 1800 1200 600 1696 1099 inch 70.87 47.25 23.62 66.77 43.27 HMET18128 mm 1800 1200 800 1696 1099 inch 70.87 47.25 31.5 66.77 43.27 HMET18164 mm 1800 1600 400 1696 1499 inch 70.87 62.99 15.75 66.77 59.02 HMET18165 mm 1800 1600 500 1696 1499 inch 70.87 62.99 19.69 66.77 59.02 HMET18166 mm 1800 1600 600 1696 1499 inch 70.87 62.99 23.62 66.77 59.02 HMET18168 mm 1800 1600 800 1696 1499 inch 70.87 62.99 31.5 66.77 59.02 HMET18184 mm 1800 1800 400 1696 1699 inch 70.87 70.87 15.75 66.77 66.89 HMET18185 mm 1800 1800 500 1696 1699 inch 70.87 70.87 19.69 66.77 66.89 HMET18186 mm 1800 1800 600 1696 1699 inch 70.87 70.87 23.62 66.77 66.89 HMET18188 mm 1800 1800 800 1696 1699 inch 70.87 70.87 31.5 66.77 66.89 HMET20105 mm 2000 1000 500 1896 899 inch 78.74 39.37 19.69 74.65 35.4 HMET20106 mm 2000 1000 600 1896 899 inch 78.74 39.37 23.62 74.65 35.4 HMET20124 mm 2000 1200 400 1896 1099 inch 78.74 47.25 15.75 74.65 43.27 HMET20125 mm 2000 1200 500 1896 1099 inch 78.74 47.25 19.69 74.65 43.27 HMET20126 mm 2000 1200 600 1896 1099 inch 78.74 47.25 23.62 74.65 43.27 HMET20128 mm 2000 1200 800 1896 1099 inch 78.74 47.25 31.5 74.65 43.27 HMET20165 mm 2000 1600 500 1896 1499 inch 78.74 62.99 19.69 74.65 59.02 HMET20166 mm 2000 1600 600 1896 1499 inch 78.74 62.99 23.62 74.65 59.02 HMET20168 mm 2000 1600 800 1896 1499 inch 78.74 62.99 31.5 74.65 59.02 HMET20185 mm 2000 1800 500 1896 1699 inch 78.74 70.87 19.69 74.65 66.89 HMET20186 mm 2000 1800 600 1896 1699 inch 78.74 70.87 23.62 74.65 66.89 HMET20188 mm 2000 1800 800 1896 1699 inch 78.74 70.87 31.5 74.65 66.89 HMET22106 mm 2200 1000 600 2096 899 inch 86.62 39.37 23.62 82.52 35.4 HMET22125 mm 2200 1200 500 2096 1099 inch 86.62 47.25 19.69 82.52 43.27 HMET22126 mm 2200 1200 600 2096 1099 inch 86.62 47.25 23.62 82.52 43.27   © Copyright 2012. Hammond Manufacturing Ltd. All rights reserved. Go Back a Page | Top of Page | Home | Contact Webmaster | Contact Us
