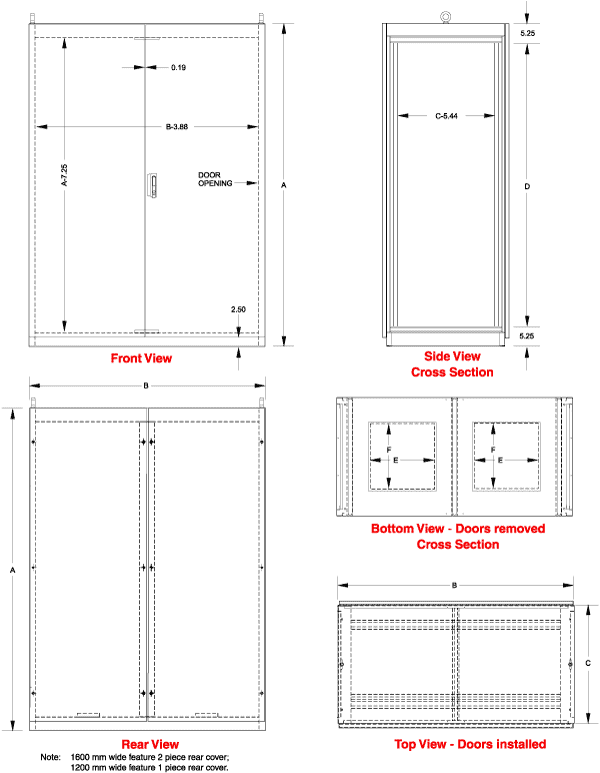

Search: Home News Our Products Industrial Enclosures Corrosion Resistant Enclosures Disconnect Enclosures Modular Freestanding Enclosures Operator Interface Enclosures Wireway & Trough Commercial Enclosures Climate Control Products General Accessories Technical Information Hoffman Cross Reference Downloads DXF Drawings Climate Control Sizing Software List Prices Where to Buy Literature Contact Us Modular Freestanding Enclosures - NEMA 12 IMET Series Double Door Enclosure << Product Information << Modular Freestanding Enclosures << Application The IMET product line provides users with a rugged housing for industrial control and operator interface in harsh industrial environments. Modular design permits joining of units together for large scale and mixed use applications. A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference.   Standards UL 508 Type 12 CSA Type 12 Complies with NEMA Type 12 IEC 60529 IP54   Standard Configuration Frame with integral solid top Lifting eyebolts 2 removable bottom panels 2 solid overlapping front doors with key locking handle Removable rear cover panels Inner mounting panel, additional panels available   Construction Formed 14 gauge steel. Frame has welded corner reinforcements. Mounting channels on sides of enclosure are oriented front to back for depth adjustment of mounting panels. Oil resistant gaskets are permanently secured on all openings. Reinforced eyebolts are provided for easy enclosure lifting. Frames are easily joined together with an optional joining kit. Doors can be easily removed and interchanged. Optional formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet.Side panels must be ordered separately. Bonding and grounding studs are provided for all doors and panels.   Finish Phosphatized and finished in RAL 7032 beige powder coating. Inner panels finished in white powder coating.   Accessories Additional inner panels Air conditioners Bridge panel Caster assembly - inside mounting Caster assembly - outside mounting Center depth support Door mount rails Door shelf Door support wheel Filter fans Fold down shelf Joining kit Leveling feet Light kit and accessories Literature pocket Power bars Side mount inner panels Side panels Tamper resistant screws Top mount fan Back to Top Part No. Nominal Dimensions A x B x C (mm)   Overall Dimensions (in/mm)   Panel Dimensions Ship Wt. lbs A B C D E F Height Width IMET16126 1600 x 1200 x 600 inch 70.31 45.22 23.63 59.81 13 10.5 61.75 39.97 410 mm 1786 1149 600 1519 330 267 1568 1015 IMET16128 1600 x 1200 x 800 inch 70.31 45.22 31.5 59.81 13 17.5 61.75 39.97 425 mm 1786 1149 800 1519 330 445 1568 1015 IMET18124 1800 x 1200 x 400 inch 77.31 45.22 15.75 66.81 13 10.5 68.75 39.97 405 mm 1964 1149 400 1697 330 267 1746 1015 IMET18125 1800 x 1200 x 500 inch 77.31 45.22 19.63 66.81 13 10.5 68.75 39.97 415 mm 1964 1149 498 1697 330 267 1746 1015 IMET18126 1800 x 1200 x 600 inch 77.31 45.22 23.63 66.81 13 10.5 68.75 39.97 425 mm 1964 1149 600 1697 330 267 1746 1015 IMET18128 1800 x 1200 x 800 inch 77.31 45.22 31.5 66.81 13 17.5 68.75 39.97 450 mm 1964 1149 800 1697 330 445 1746 1015 IMET18165 1800 x 1600 x 500 inch 77.31 63 19.63 66.81 17 10.5 68.75 57.75 550 mm 1964 1600 498 1697 432 267 1746 1467 IMET18166 1800 x 1600 x 600 inch 77.31 63 23.63 66.81 17 10.5 68.75 57.75 560 mm 1964 1600 600 1697 432 267 1746 1467 IMET18168 1800 x 1600 x 800 inch 77.31 63 31.5 66.81 17 17.5 68.75 57.75 580 mm 1964 1600 800 1697 432 445 1746 1467 IMET20124 2000 x 1200 x 400 inch 86.06 45.22 15.75 75.56 13 10.5 77.5 39.97 420 mm 2168 1149 400 1919 330 267 1969 1015 IMET20125 2000 x 1200 x 500 inch 86.06 45.22 19.63 75.56 13 10.5 77.5 39.97 450 mm 2168 1149 498 1919 330 267 1969 1015 IMET20126 2000 x 1200 x 600 inch 86.06 45.22 23.63 75.56 13 10.5 77.5 39.97 460 mm 2168 1149 600 1919 330 267 1969 1015 IMET20128 2000 x 1200 x 800 inch 86.06 45.22 31.5 75.56 13 17.5 77.5 39.97 490 mm 2168 1149 800 1919 330 445 1969 1015 IMET20165 2000 x 1600 x 500 inch 86.06 63 19.63 75.56 17 10.5 77.5 57.75 540 mm 2168 1600 498 1919 432 267 1969 1467 IMET20166 2000 x 1600 x 600 inch 86.06 63 23.63 75.56 17 10.5 77.5 57.75 550 mm 2168 1600 600 1919 432 267 1969 1467 IMET20168 2000 x 1600 x 800 inch 86.06 63 31.5 75.56 17 17.5 77.5 57.75 570 mm 2168 1600 800 1919 432 445 1969 1467 Maximum Usable Depth Panel in Full Back Position Cabinet Depth (mm) Without Bridge Panel (Inches) With Bridge Panel (Inches) 400 14.63 13.88 500 18.5 17.75 600 22.5 21.75 800 30.38 29.63   © Copyright 2008. Hammond Manufacturing Ltd. All rights reserved. Go Back a Page | Top of Page | Home | Contact Webmaster | Contact Us
