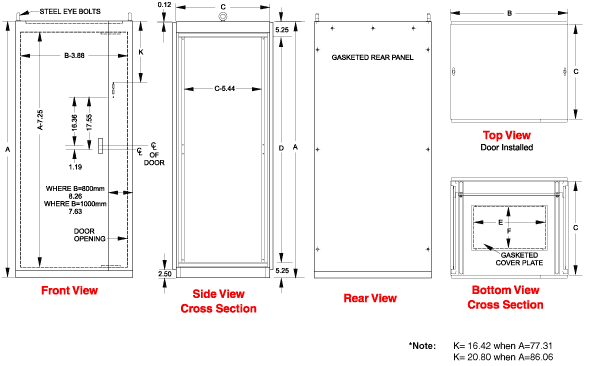

Search: Home News Our Products Industrial Enclosures Corrosion Resistant Enclosures Disconnect Enclosures Modular Freestanding Enclosures Operator Interface Enclosures Wireway & Trough Commercial Enclosures Climate Control Products General Accessories Technical Information Hoffman Cross Reference Downloads DXF Drawings Climate Control Sizing Software List Prices Where to Buy Literature Contact Us Modular Freestanding Enclosures - NEMA 12 IFMD Series Flange Mount Disconnect Enclosure << Product Information << Modular Freestanding Enclosures << Application The IFMD product line provides users with a rugged housing for industrial control and operator interface in harsh industrial environments. Modular design permits joining of units for large scale and mixed use applications. A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference. IME Series enclosures are used as slave units to IFMD Disconnect Series. The flange mount disconnect units accommodate today’s most popular disconnect hardware. ABB Controls Disconnect Switches up to (and including) 200 amp, also operators for ABB circuit breakers up to 800 amp. Allen Bradley 1494V variable depth flange mounted disconnect up to and including 200 amp and operators for C-H Westinghouse circuit breakers up to 400 amp. C-H Westinghouse C361 flange mount­ed disconnect switches up to and including 200 amp and C371 circuit breakers up to 600 amp, also Flex Shaft handle mechanisms for circuit breakers. General Electric Type STDA flange mounted variable depth flange operators for disconnect switches up to and including 200 amp and circuit breakers up to 600 amp or Spectra Flex™ cable operators for circuit breakers. I-T-E Siemens Max-Flex™ flange mounted variable depth cable operators for disconnect switches up to 200 amp and circuit breakers up to 600 amp. Square D class 9422 variable depth flange mounted operating mechanisms for disconnect switches up to and including 200 amp or cable mechanism for 30, 60 or 100 amp, also circuit breakers with variable depth operators or cable mechanism up to 400 amp.   Standards UL 508 Type 12 CSA Type 12 Complies with NEMA Type 12 IEC 60529 IP54 Appropriate components are required to maintain these standards.   Standard Configuration Frame with integral solid top Lifting eyebolts Removable bottom panel Solid front door with key locking handle Disconnect to door handle activation hardware Hinged flange door Removable rear cover panel Inner mounting panel, additional panels available   Construction Formed 14 gauge steel. Frame has welded corner reinforcements. Mounting channels on sides of enclosure are oriented front to back for depth adjustment of mounting panels. Oil resistant gaskets are permanently secured on all openings. Reinforced eyebolts are provided for easy enclosure lifting. Frames are easily joined together with an optional frame Joining kit. Doors can be easily removed and interchanged. Optional formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet. Side panels must be ordered separately. Bonding and grounding studs are provided for all doors and panels.   Finish Phosphatized and finished in RAL 7032 beige powder coating. Inner panels are finished in white powder coating.   Accessories Additional inner panels Air conditioners Bridge panel Caster assembly - inside mounting Caster assembly - outside mounting Center depth support Door mount rails Door shelf Door support wheel Fold down shelf Joining kit Leveling feet Light kit and accessories Literature pocket Master interlock kit Plinth Side panels Tamper resistant screws Vented raised top Top mount fan Back to Top Maximum Usable Depth (Panel in Full Back Position) Cabinet Depth (mm) Without Bridge Panel (inch) With Bridge Panel (inch) 400 14.63 13.88 500 18.5 17.75 600 22.5 21.75 800 30.38 29.63   Part No. Nominal Dimensions A x B x C (mm)   Overall Dimensions (in/mm)   Panel Dimensions Ship Wt. lbs A B C D E F Height Width IFMD1885 1800 x 800 x 500 inch 77.31 31.5 19.63 66.81 17 10.5 68.75 26.25 295 mm 1964 800 498 1697 432 267 1746 667 IFMD1886 1800 x 800 x 600 inch 77.31 31.5 23.63 66.81 17 10.5 68.75 26.25 300 mm 1964 800 600 1697 432 267 1746 667 IFMD1888 1800 x 800 x 800 inch 77.31 31.5 31.5 66.81 17 17.5 68.75 26.25 320 mm 1964 800 800 1697 432 445 1746 667 IFMD18105 1800 x 1000 x 500 inch 77.31 39.37 19.63 66.81 24.06 10.5 68.75 34.12 345 mm 1964 1000 498 1697 611 267 1746 867 IFMD18106 1800 x 1000 x 600 inch 77.31 39.37 23.63 66.81 24.06 10.5 68.75 34.12 350 mm 1964 1000 600 1697 611 267 1746 867 IFMD18108 1800 x 1000 x 800 inch 77.31 39.37 31.5 66.81 24.06 17.5 68.75 34.12 360 mm 1964 1000 800 1697 611 445 1746 867 IFMD2085 2000 x 800 x 500 inch 86.06 31.5 19.63 75.56 17 10.5 77.5 26.25 310 mm 2186 800 498 1919 432 267 1969 667 IFMD2086 2000 x 800 x 600 inch 86.06 31.5 23.63 75.56 17 10.5 77.5 26.25 320 mm 2186 800 600 1919 432 267 1969 667 IFMD2088 2000 x 800 x 800 inch 86.06 31.5 31.5 75.56 17 17.5 77.5 26.25 340 mm 2186 800 800 1919 432 445 1969 667 IFMD20105 2000 x 1000 x 500 inch 86.06 39.37 19.63 75.56 24.06 10.5 77.5 34.12 375 mm 2186 1000 498 1919 611 267 1969 867 IFMD20106 2000 x 1000 x 600 inch 86.06 39.37 23.63 75.56 24.06 10.5 77.5 34.12 385 mm 2186 1000 600 1919 611 267 1969 867 IFMD20108 2000 x 1000 x 800 inch 86.06 39.37 31.5 75.56 24.06 17.5 77.5 34.12 390 mm 2186 1000 800 1919 611 445 1969 867   © Copyright 2008. Hammond Manufacturing Ltd. All rights reserved. Go Back a Page | Top of Page | Home | Contact Webmaster | Contact Us
