Modular Freestanding Enclosures - NEMA 12
IPC Series PC Enclosure
<< Product Information << Modular Freestanding Enclosures <<

Download PDF





Application
  • The IPC product line provides users with a rugged housing for industrial control, operator interface and computer equipment in harsh industrial environments.
  • Modular design permits joining of units for large scale and mixed use applications.
  • Increasingly, PC technology is utilized on the factory floor. The PC enclosure provides a secure housing for standard PC components.
  • A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference.

Standards
  • UL 508 Type 12
  • CSA Type 12
  • Complies with
    • NEMA Type 12
    • IEC 60529 IP54

Standard Configuration
  • Frame with integral solid top
  • Lifting eyebolts
  • Removable bottom panel
  • Solid front door with key locking handle
  • Disconnect to door handle activation hardware
  • Hinged flange door
  • Removable rear cover panel
  • Inner mounting panel, additional panels available

Construction
  • Formed 14 gauge steel.
  • Frame has welded corner reinforcements.
  • Mounting channels on sides of enclosure are oriented front to back for depth adjustment of mounting panels.
  • Oil resistant gaskets are permanently secured on all openings.
  • Reinforced eyebolts are provided for easy enclosure lifting.
  • Frames are easily joined together with an optional frame Joining kit.
  • Doors can be easily removed and interchanged.
  • Optional formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet. Side panels must be ordered separately.
  • Bonding and grounding studs are provided for all doors and panels.

Finish
  • Phosphatized and finished in RAL 7032 beige powder coating.
  • Inner panels are finished in white powder coating.

Accessories
Back to Top
Keyboard Dimensions
EnclosureWidth (mm)   Maximum
Keyboard Width
700 inch 20
mm 508
800 inch 24
mm 610



Window
Door
Part No.
Solid
Door
Part No.
Nominal
Dimensions

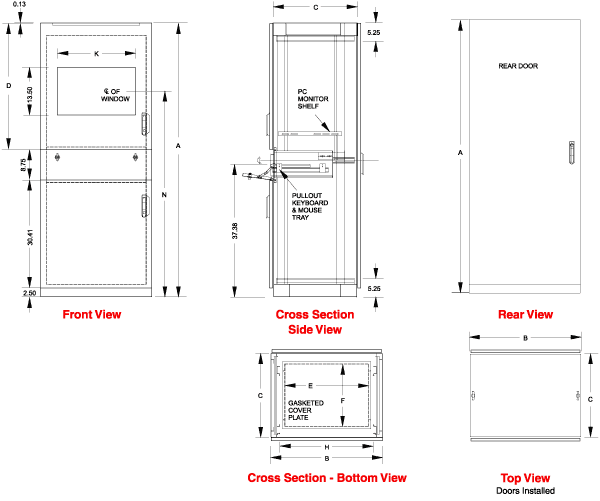

A x B x C (mm)
  Overall
Dimensions
  Ship Wt.
lbs
A B C D E F H K N
IPC1676 IPC1676ST 1600 x 700 x 600 inch 70.31 28 23.63 26.66 17 10.5 22.8 18 54 340
mm 1786 711 600 677 432 267 579 457 1372
IPC1678 IPC1678ST 1600 x 700 x 800 inch 70.31 28 31.5 26.66 17 17.5 22.8 18 54 355
mm 1786 711 800 677 432 445 579 457 1372
IPC1686 IPC1686ST 1600 x 800 x 600 inch 70.31 31.5 23.63 26.66 24 10.5 26.3 22 54 350
mm 1786 800 600 677 610 445 668 559 1372
IPC1876 IPC1876ST 1800 x 700 x 600 inch 77.31 28 23.63 33.66 17 10.5 22.8 18 58 355
mm 1964 711 600 855 432 267 579 457 1473
IPC1878 IPC1878ST 1800 x 700 x 800 inch 77.31 28 31.5 33.66 17 17.5 22.8 18 58 380
mm 1964 711 800 855 432 445 579 457 1473
IPC1886 IPC1886ST 1800 x 800 x 600 inch 77.31 31.5 23.63 33.66 24 10.5 26.3 22 58 370
mm 1964 800 600 855 610 267 668 559 1473
