Type 4, 4X Mild Steel and Stainless Steel Desk Units Series 2000

Modular Console System

Application

  • Generally used in combination with other modular console components (ie. base, pedestal, and/or turret).
  • Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
  • Open top permits mounting of a turret (usually for CRT applications) or an optional hinged desk cover (providing a flat, sturdy desk surface).
  • Available in either Standard (will support Standard Turret only) or Deep (will support Deep Turret only) format.
  • Smooth lines and clean edges provide an attractive, contemporary appearance.

Standards

  • UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
  • CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X)
  • EIA RS-310-D
  • Complies with
    • NEMA Type 3R, 4, 12 (Stainless Steel, add 4X)
    • IEC 60529, IP66

Construction

  • Formed 14 gauge steel bodies with 14 gauge steel lid.
  • Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel lid.
  • Smooth, continuously welded seams without knockouts or holes.
  • Body stiffeners are provided where required for increased strength and rigidity.
  • Offered in 4 widths 24", 36", 48" and 60".
  • Solid sides and back, lid on sloped top area, open on flat top area, bottom is solid under lid area and open under flat top area.

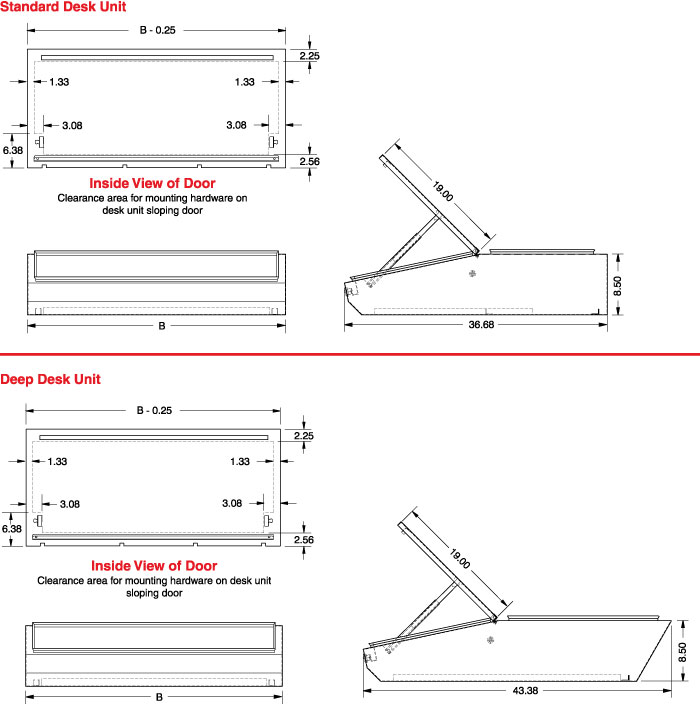

  • Deep Desk has a 6.7" deeper top opening than standard desk allowing for support of Deep Turret - see drawings as Deep Desk has different profile (angled back) from Standard Desk (flat back.)
  • Lid profiles provide increased strength.
  • Formed lip on enclosure excludes flowing liquids and contaminants.
  • Slotted quarter turn oil-tight latches secure the lid, with optional tamper resistant and locking latches available.
  • Stainless steel models utilize stainless steel hardware.
  • Oil resistant gaskets are permanently secured.
  • Features several internal stud locations for mounting Desk Inner Panel.
  • A bonding screw is provided on the lid and a grounding stud is provided in the enclosure.

Finish

  • Available in RAL 7035 light gray textured powder coating and natural stainless steel with a smooth, brushed finish.
  • Desk covers available in same finishes.

Accessories

Gallery Image

Standard Depth Desk

RAL 7035 Light Gray Stainless Steel Enclosure
Part No. Part No. H W D
2CLD82436 2CSD82436 8.50 24.00 36.68
2CLD83636 2CSD83636 8.50 36.00 36.68
2CLD84836 2CSD84836 8.50 48.00 36.68
2CLD86036 2CSD86036 8.50 60.00 36.68

Extra Deep Desk

RAL 7035 Light Gray Stainless Steel Enclosure
Part No. Part No. H W D
2CLD82443 2CSD82443 8.50 24.00 43.38
2CLD83643 2CSD83643 8.50 36.00 43.38
2CLD84843 2CSD84843 8.50 48.00 43.38
2CLD86043 2CSD86043 8.50 60.00 43.38

Need Assistance? Contact Us.

Data subject to change without notice.
