Series 2000 Modular Console System - NEMA 12, 4, 4X
External Components |
| << Product Information << Operator Interface << |
|
|
| Pedestal |
|
- Maintains NEMA rating of system.
- Formed 14 gauge steel.
- Also offered with formed 14 gauge stainless steel.
- Stiffeners added for solid stability.
- Open top and bottom provides an unobstructed wireway for pull through cabling.
- Can be mounted directly on floor or on a plinth.
- Available in light gray and stainless steel.
|
 |
| |
| Part No. |
Finish |
2CLS |
ANSI 61 Gray (smooth) |
2CSS |
Stainless Steel |
|
|
| |
| |
|
|
Back to Top |
|
| Modular Plinth |
|
- Features removable front and rear panels for easy access to bottom for cabling or transport by forklift.
- For cable access, features 3 double knockouts on each end.
- Available in 4" and 8" heights.
- Available in 24", 36", 48" and 60" widths.
- Maintains NEMA rating of system.
- Formed 14 gauge steel.
- Also offered with formed 14 gauge stainless steel.
- Available in light gray and stainless steel.
|
|
|
| |
RAL 7035 Light Gray
Part No. |
Stainless Steel
Part No. |
|
|
|
| A |
B1 |
B2 |
2CLP42418 |
2CSP42418 |
4 |
24 |
— |
2CLP43618 |
2CSP43618 |
4 |
36 |
— |
2CLP44818 |
2CSP44818 |
4 |
— |
48 |
2CLP46018 |
2CSP46018 |
4 |
— |
60 |
2CLP82418 |
2CSP82418 |
8 |
24 |
— |
2CLP83618 |
2CSP83618 |
8 |
36 |
— |
2CLP84818 |
2CSP84818 |
8 |
— |
48 |
2CLP86018 |
2CSP86018 |
8 |
— |
60 |
|
|
|
Back to Top |
|
| Footrest |
|
- Generally used in combination with plinth.
- Provides a raised foot support to relieve back stress.
- Gives the installation a "finished" appearance.
- Available in 24", 36", 48" and 60" widths.
- Maintains NEMA rating of system.
- Formed 14 gauge steel.
- Also offered with formed 14 gauge stainless steel.
- Rubber tread for added traction on footrest surface.
- Available in light gray and natural stainless steel.
|
| |
RAL 7035 Light Gray
Part No. |
Stainless Steel
Part No. |
|
| B |
2CLF24 |
2CSF24 |
24 |
2CLF36 |
2CSF36 |
36 |
2CLF48 |
2CSF48 |
48 |
2CLF60 |
2CSF60 |
60 |
|
|
|
Back to Top |
|
| Data Terminal Extension Ring |
|
- Formed 14 gauge steel.
- Adds 6” to Data Terminal Depth.
- Maintains NEMA rating.
- Utilizes door from Data Terminal.
- Fastens flush to back of Data Terminal.
- Available in light gray and natural stainless steel.
|
| |
| Part No. |
Finish |
2CLD24X |
ANSI 61 Gray (smooth) |
2CSD24X |
Stainless Steel |
|
|
|
Back to Top |
|
| Turret/Terminal Window Door |
|
- Maintains the NEMA rating of the enclosure.
- Constructed of 14 gauge steel and lexan window.
- Easy field installation.
- Fits Standard Turret, Deep Turret, and Data Terminal.
- Offered in 24" width only.
- Available in light gray and stainless steel.
|
| |
| Part No. |
Finish |
2CLTW24 |
ANSI 61 Gray (smooth) |
2CSTW24 |
Stainless Steel |
|
|
|
Back to Top |
|

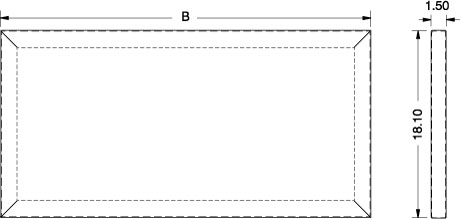

| Base Cover |
|
- Should be used to close top opening (of either single or dual access) base when no other components are mounted on the base’s top.
- Constructed of 14 gauge steel.
- Available light gray and stainless steel.
- Can also be used on the underside of a Standard Desk Unit, Standard Turret and Data Terminal.
|
| |
|
| |
RAL 7035 Light Gray
Part No. |
Stainless Steel
Part No. |
|
| B |
2CLBC2436 |
2CSBC2436 |
24 |
2CLBC3636 |
2CSBC3636 |
36 |
2CLBC4836 |
2CSBC4836 |
48 |
2CLBC6036 |
2CSBC6036 |
60 |
|
|
|
|
Back to Top |
|

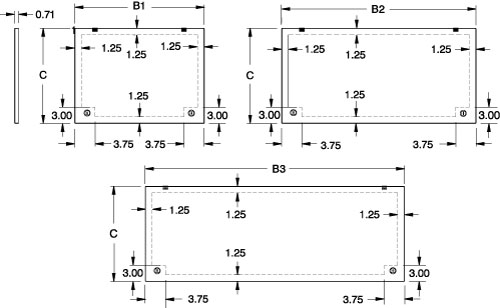

| Desk Cover |
|
- For use when no turret is used on top of desk.
- Provides a hinged, flat, sturdy desk surface.
- Available for either Standard or Deep desks.
- Constructed of 14 gauge steel.
- Features quarter turn latches for easy access into flat desk top.
- Available in light gray and stainless steel.
|
| |
|
| |
RAL 7035 Light Gray
Part No. |
|
Stainless Steel
Part No. |
|
|
|
|
| B1 |
B2 |
B3 |
C |
Standard Depth Desk Cover |
|
|
|
|
2CLDC2436 |
|
2CSDC2436 |
23.75 |
— |
— |
16.38 |
2CLDC3636 |
|
2CSDC3636 |
— |
35.75 |
— |
16.38 |
2CLDC4836 |
|
2CSDC4836 |
— |
— |
47.75 |
16.38 |
2CLDC6036 |
|
2CSDC6036 |
— |
— |
59.75 |
16.38 |
Deep Depth Desk Cover |
|
|
|
|
2CLDC2443 |
|
2CSDC2443 |
23.75 |
— |
— |
24.03 |
2CLDC3643 |
|
2CSDC3643 |
— |
35.75 |
— |
24.03 |
2CLDC4843 |
|
2CSDC4843 |
— |
— |
47.75 |
24.03 |
2CLDC6043 |
|
2CSDC6043 |
— |
— |
59.75 |
24.03 |
|
|
|
|
Back to Top |
|
