Series 2000 Modular Console System - NEMA 12, 4, 4X
Internal Components |
| << Product Information << Operator Interface << |
|
|
| Base Panel |
|
- 14 gauge steel panels are finished in white.
- Used in both single access and dual access bases.
- Available in 4 widths.
- Mounts into "C" Channel Mounting Kit (not included.)
- Hardware required for mounting into "C" channels is included.
|
| |
| Part No. |
Fits Base
Width |
Height |
Width |
Depth |
2CWBP24 |
24 |
22.5 |
20 |
0.75 |
2CWBP36 |
36 |
22.5 |
32 |
0.75 |
2CWBP48 |
48 |
22.5 |
44 |
0.75 |
2CWBP60 |
60 |
22.5 |
56 |
0.75 |
|
|
|
Back to Top |
|
| Consolet Panel |
|
- 12 gauge steel panels.
- Available in 4 widths.
- Mounts onto panel mounting studs in consolet.
- Finished in white.
|
| |
| Part No. |
Fits
Consolet
Width |
Height |
Width |
Depth |
2CWCP24 |
24 |
30.5 |
20.5 |
0.75 |
2CWCP36 |
36 |
30.5 |
32.5 |
0.75 |
2CWCP48 |
48 |
30.5 |
44.5 |
0.75 |
2CWCP60 |
60 |
30.5 |
56.5 |
0.75 |
|
|
|
Back to Top |
|
| Desk Inner Panel |
|
- 12 gauge steel panels.
- Used in both Standard and
- Deep desks.
- Available in 4 widths.
- Mounts horizontally onto panel mounting channels in bottom of desk.
- Finished in white.
|
| |
| Part No. |
Fits
Consolet Width |
Height |
Width |
Depth |
2CWDP24 |
24 |
0.5 |
22 |
16 |
2CWDP36 |
36 |
0.5 |
34 |
16 |
2CWDP48 |
48 |
0.5 |
46 |
16 |
2CWDP60 |
60 |
0.5 |
58 |
16 |
|
|
|
Back to Top |
|
| Terminal Keyboard Shelf |
|
- Designed specifically for use in Data Terminal.
- Sloped wrist rest provides comfort for operator.
- Locks in place when extended.
- 20" width accommodates standard width keyboards.
- Finished in textured black.
- Slides included.
|
| |
| Part No. |
Height |
Width |
Depth |
2CWDSR |
3.88 |
20 |
15.63 |
|
|
|
Back to Top |
|
| Swing Frame |
|
- Available in 19" and 24" widths.
- Variable depth feature allows front to rear adjustment.
- Installs with either left or right hinging.
- Mounts onto Rail Support Kits (not included).
- Clip nuts required for mounting to punched rails.
- Finished in textured black.
|
 |
|
| |
|
|
|
Panel
Width |
Panel
Height |
|
|
| Part No. |
Fits Console Unit |
Fits Console Size |
A |
B |
2CSFT19 |
Turrets/Terminal |
24,36,48,60 |
19" |
8U |
15.75 |
19.28 |
2CSFT24 |
Turrets/Terminal |
36,48,60 |
24" |
8U |
15.75 |
24.28 |
2CSFB19 |
Bases |
24,36,48,60 |
19" |
12U |
22.09 |
19.28 |
2CSFB24 |
Bases |
36,48,60 |
24" |
12U |
22.09 |
24.28 |
|
|
|
Back to Top |
|
| "C" Channel Mounting Kit |
|
- For use in Turrets, Data Terminals and Bases.
- Provide adjustable (side to side) mounting support for Base Panels and all Rail Support Kits.
- Available in 4 widths.
- Finished in textured black.
|
 |
|
| |
| Part No. |
Fits Console Width |
A |
2CMC24 |
24 |
23.5 |
2CMC36 |
36 |
33.5 |
2CMC48 |
48 |
47.5 |
2CMC60 |
60 |
59.5 |
|
|
|
Back to Top |
|
| Rail Support Kit |
|
- Separate kits for Standard Turret/Data Terminal, Deep Turret and Bases.
- For use with Swing Frame, CRT Mounting Kit and Combination Rails.
- Mount into "C" channels (not included - see above).
- Finished in textured black.
|
| |
| Part No. |
Fits Console Unit |
2CTRSK36 |
Turret/Terminal |
2CTRSK43 |
Deep Turret |
2CBRSK |
Base |
|
|
|
Back to Top |
|
| Combination Rails |
|
- console accessories.
- Features punched universal EIA spacing.
- Mounts onto Rail Support Kits (not included - see above).
- Clip nuts required for mounting to punched rails
- Finished in black.
|
| |
| Part No. |
Units |
Fits Console Unit |
2CTRK |
9 |
Turrets/Terminal |
2CBRK |
13 |
Base |
|
|
|
Back to Top |
|
| CRT Mounting Kit |
|
- Adjustable width allows for mounting of most CRT models.
- For use in Turrets or Data Terminal.
- Mounts onto Rail Support Kits (not included - see above).
- Finished in textured black.
|
| |
|
|
|
Back to Top |
|

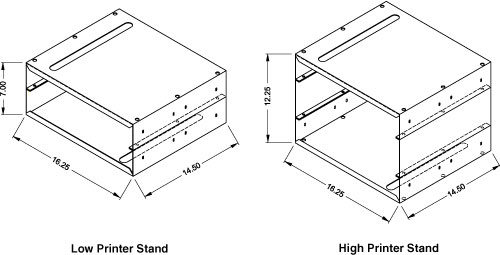

| Printer and Paper Stand |
|
- Provides convenient pullout access and support for printers in bases.
- Two versions available for high or low applications.
- Mounts onto Combination Rails (not included).
- Finished in textured black.
- Slides included.
|
| |
 |
| Part No. |
Description |
Height |
2CLPS |
Low Printer Stand |
7.00 |
2CHPS |
High Printer Stand |
12.25 |
|
|
|
|
Back to Top |
|
| Gas Filled Door Support |
|
- Provide "lift assist" and door support for rear Turret/Data Terminal doors and Desk lids.
- Replace standard manual door supports.
- Finished in black.
- Sold individually.
- Recommend 1 for 24"/36" and 2 for 48"/60".
|
| |
|
|
|
Back to Top |
|
| DIN Rail Support Kit |
|
- Provide adjustable mounting support for DIN rails (sold separately.)
- For use in Bases only.
- Mount into "C" channels (not included).
|
| |
|
|
|
Back to Top |
|

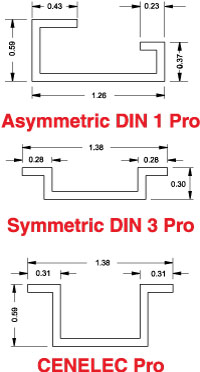

| DIN Rails |
|
- Field installable.
- Includes a set of 3 plated rails.
- Available in 3 industry standard profiles - DIN 1, DIN 3, and CENELEC.
- DIN Rail Support Kit required.
- Rails have a 0.28 x 1.25 oblong slot on each end.
|
 |
|
| |
| Asymmetric DIN1 |
Symmetric DIN 3 |
Cenelec Profile |
|
| Profile Part No. |
Profile Part No. |
Part No. |
Length |
2D1K12 |
2D2K12 |
2DCK12 |
9.25 |
2D1K16 |
2D2K16 |
2DCK16 |
13.25 |
2D1K20 |
2D2K20 |
2DCK20 |
17.25 |
2D1K24 |
2D2K24 |
2DCK24 |
21.25 |
2D1K30 |
2D2K30 |
2DCK30 |
27.25 |
|
|
|
Back to Top |
|
| Micro Cell Cable Entry Kit |
|
- For use in Single or Dual Access Bases.
- Constructed of 14 gauge steel.
- Features 2 cutouts for cable access.
- Underside of cutouts covered with black foam rubber, which when punctured for cable access, still maintains a virtually sealed bottom.
- Finished in textured black.
|
| |
|
|
|
Back to Top |
|
| Mobile Keyboard Support |
|
- Installs easily at any location along front of Desks or Consolet.
- Provides auxiliary or temporary keyboard support.
- 20" width accommodates standard width keyboards.
- Finished in textured black.
- Requires two drilled holes to permanently mount.
|
| |
|
|
|
Back to Top |
