1488 Series Consolets - NEMA 12, 13
Hinged Cover Consolets |
| << Product Information << Operator Interface << |
|
| Application |
|
- Designed for use as electric, hydraulic or pneumatic control and instrument enclosures.
- Ideal for flat or surface mounting/pedestal to provide the necessary 30° or 60° control slope.
- Provides protection from dirt, dust, oil and water.
|
| Standards |
|
- UL 508 Type 12, 13
- CSA Type 12, 13
- Complies with
- NEMA Type 12, 13
- IEC 60529, IP54
|
| Construction |
|
- Formed 14 gauge steel.
- mooth, continuously welded seams.
- Construction provides either 30° or 60° slope on front cover depending on mounting position.
- Continuously hinged cover may be removed by pulling the hinge pin.
- Captive cover screws thread into sealed wells.
- Oil resistant gasket and adhesive.
- A bonding stud is provided on the door and a ground stud is provided on the enclosure.
|
| Finish |
|
- Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
|
| Accessories |
|
|
| |
|
| Back to Top |
|
|
|

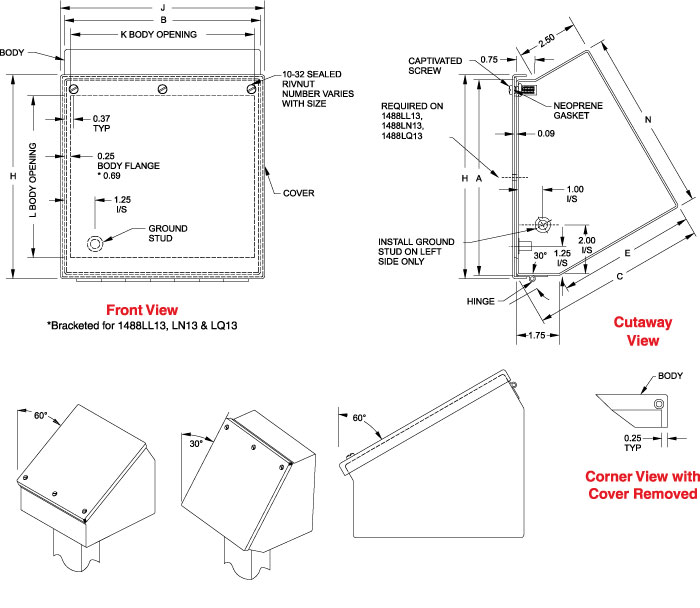

| Part No. |
A |
B |
C |
E |
N |
L |
K |
H |
J |
Ship Wt.
lbs. |
1488EE7 |
8 |
8 |
7.16 |
5.64 |
7.44 |
6.63 |
7.50 |
8.34 |
8.34 |
9 |
1488EH7 |
8 |
12 |
7.16 |
5.64 |
7.44 |
6.63 |
11.50 |
8.34 |
12.34 |
11 |
1488EJ7 |
8 |
16 |
7.16 |
5.64 |
7.44 |
6.63 |
15.50 |
8.34 |
16.34 |
13 |
1488EL7 |
8 |
20 |
7.16 |
5.64 |
7.44 |
6.63 |
19.50 |
8.34 |
20.34 |
15 |
1488HH9 |
12 |
12 |
9.16 |
7.64 |
10.9 |
10.63 |
11.50 |
12.34 |
12.34 |
16 |
1488HJ9 |
12 |
16 |
9.16 |
7.64 |
10.9 |
10.63 |
15.50 |
12.34 |
16.34 |
19 |
1488HL9 |
12 |
20 |
9.16 |
7.64 |
10.9 |
10.63 |
19.50 |
12.34 |
20.34 |
24 |
1488HN9 |
12 |
24 |
9.16 |
7.64 |
10.9 |
10.63 |
23.50 |
12.34 |
24.34 |
26 |
1488JJ11 |
16 |
16 |
11.16 |
9.64 |
14.37 |
14.63 |
15.50 |
16.34 |
16.34 |
26 |
1488JL11 |
16 |
20 |
11.16 |
9.64 |
14.37 |
14.63 |
19.50 |
16.34 |
20.34 |
30 |
1488JN11 |
16 |
24 |
11.16 |
9.64 |
14.37 |
14.63 |
23.50 |
16.34 |
24.34 |
39 |
1488JQ11 |
16 |
30 |
11.16 |
9.64 |
14.37 |
14.63 |
29.50 |
16.34 |
30.34 |
45 |
1488JS11 |
16 |
36 |
11.16 |
9.64 |
14.37 |
14.63 |
35.50 |
16.34 |
36.34 |
44 |
1488LL13 |
20 |
20 |
13.16 |
11.64 |
17.83 |
18.63 |
18.63 |
20.34 |
20.34 |
37 |
1488LN13 |
20 |
24 |
13.16 |
11.64 |
17.83 |
18.63 |
22.63 |
20.34 |
24.34 |
44 |
1488LQ13 |
20 |
30 |
13.16 |
11.64 |
17.83 |
18.63 |
28.63 |
20.34 |
30.34 |
47 |
|
| |
|
