1471 Series Console Cabinet - NEMA 12
Sloped Front, Continuous Hinged Cover Console Cabinet |
| << Product Information << Operator Interface << |
|
| Application |
|
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Heavy-duty construction provides protection from dirt, dust, oil and water.
- Sloping front control panel provides an ideal surface for mounting operator controls or instrumentation.
- Interior mounting provision on removable inner panels located on the rear and sides of the enclosure.
|
| Standards |
|
- UL 508 Type 12 as marked¹
- CSA Type 12
- Complies with
- NEMA Type 12
- IEC 60529, IP54
|
| Construction |
|
- Formed 14 gauge steel.
- Smooth, continuously welded seams, without knockouts, cutouts or holes.
- Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
- Continuously hinged door and front instrument panel may be removed by pulling the hinge pin.
- Doors are secured with a three point latch and operated with a key locking automotive type handle.
- Oil resistant gaskets are permanently secured and mechanically retained.
- Includes three removable inner panels formed from 12 gauge steel, mounted to the back and sides of the enclosure interior.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
- A literature pocket is provided for the inside of the door.
|
| Finish |
|
- Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating on the outside and on the inside.
- Removable inner panels are finished in white powder coating.
|
| Accessories |
|
|
| |
|
| Back to Top |
|
|
|

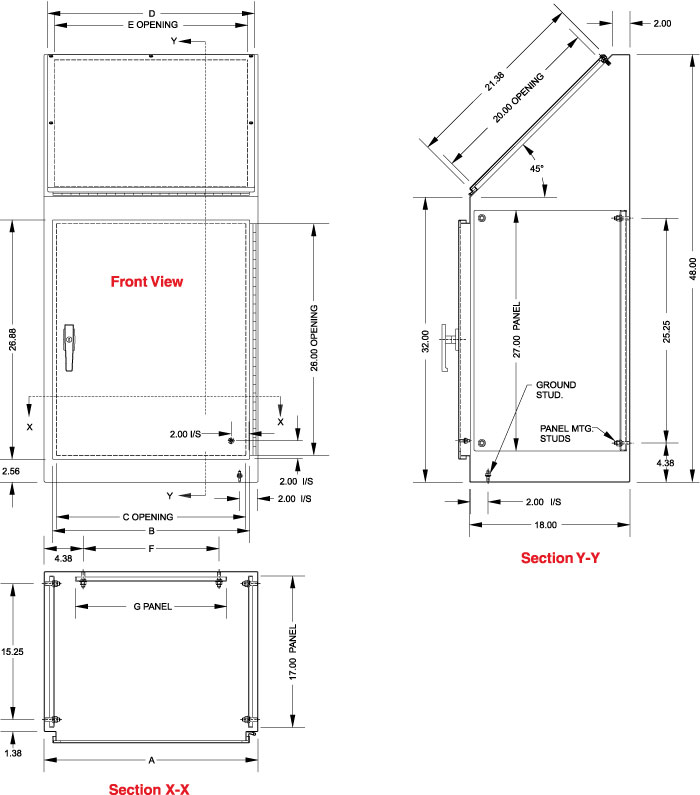

| Part No. |
A |
B |
C |
D |
E |
F |
G |
Ship Wt. lbs. |
| 1471C24¹ |
24 |
22.13 |
21.25 |
23.18 |
21.69 |
15.25 |
17 |
165 |
| 1471C36 |
36 |
34.13 |
33.25 |
35.18 |
33.68 |
27.25 |
29 |
210 |
¹ UL Listed |
| |
|
