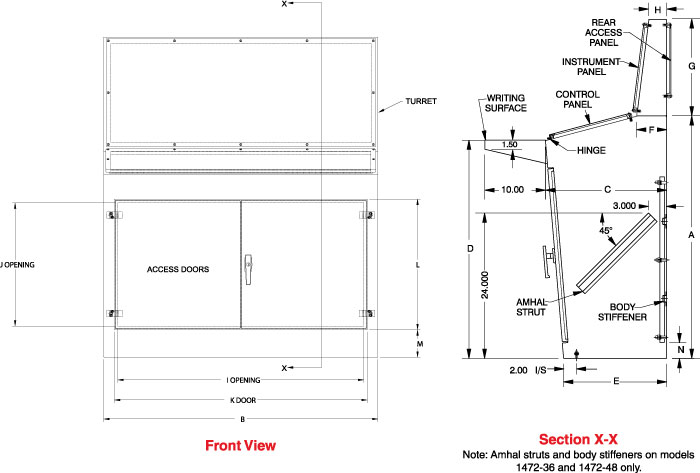

Search: Home News Our Products Industrial Enclosures Corrosion Resistant Enclosures Disconnect Enclosures Modular Freestanding Enclosures Operator Interface Enclosures Wireway & Trough Commercial Enclosures Climate Control Products General Accessories Technical Information Hoffman Cross Reference Downloads DXF Drawings Climate Control Sizing Software List Prices Where to Buy Literature Contact Us 1472 Series Console Cabinet - NEMA 12 Sloped Front Modular Console Cabinet << Product Information << Operator Interface << Basic Console   Turret   Writing Surface           Application Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Heavy-duty construction provides protection from dirt, dust, oil and water. Sloping front control and instrument panels provide an ideal surface for mounting operator controls or instrumentation. Interior mounting is provided for with a removable inner panel located on the rear of the basic console. Standards UL 508 Type 12 as marked¹ CSA Type 12 Complies with NEMA Type 12 IEC 60529, IP65 Construction Basic Console Formed 14 gauge steel. Smooth, continuously welded seams, without knockouts, cutouts or holes. Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells. Front instrument panel may be removed by pulling the hinge pin. Flush doors are secured with a three point latch and operated with a key locking automotive type handle. Two door models have overlapping front doors, with three point latch on right door. Oil resistant gaskets are permanently secured and mechanically retained. Includes a removable inner panel formed from 12 gauge steel, mounted to the back of the enclosure interior. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided.   Turret Formed and welded from 14 gauge steel. Sloping instrument panel and vertical rear access are completely removable. Oil resistant gaskets are permanently secured and mechanically retained. Captive panel screws fasten into sealed wells.   Writing Surface Formed and welded from 14 gauge steel. Fastens to the front of the console with screws Finish Console, turret and writing surface are phosphat­­ized and finished in ANSI 61 gray powder coating on the outside and on the inside. Removable inner panels are finished in white powder coating. Accessories Air conditioners Casters Heaters Louvered ventilating plates Window kits   Back to Top Basic Console Dimensions Part No. Overall Dimensions Clear Opening Door Opening Sub Panel Ship Wt. lbs. A B C D E F I J K L M N Height Width 1472-24¹ 40 24 20 36 17 5 19.06 27.68 20.25 28.94 2.56 2.62 18.75 27.25 140 1472-36 36 36 24 32 20 10 31.06 21.56 32.25 22.88 4.81 2.00 30.00 32.00 195 1472-48² 36 48 24 32 20 10 43.06 21.56 44.25 22.88 4.81 2.00 42.00 32.00 245   Panel Dimensions Console Part No. Console Control Panel Turret Instrument Panel Turret Rear Access Panel Height Width Opening Size Height Width Opening Size Height Width Opening Size 1472-24 13.96 23.18 12.50 21.50 14.91 23.18 13.37 21.62 12.31 20.18 10.75 18.62 1472-36 13.00 35.18 11.50 33.50 19.18 35.18 17.62 33.62 16.31 32.18 14.75 30.62 1472-48 13.00 47.18 11.50 45.50 19.18 47.18 17.62 45.62 16.31 44.18 14.75 42.62   Turret Dimensions   Writing Surface Dimensions Part No. B F G H Ship Wt. lbs 1472-24T¹ 24 5 16 3 34 1472-36T 36 10 20 6 68 1472-48T 48 10 20 6 80   Part No. Width Depth Height Ship Wt. lbs. 1472-24W 24 10 4 9 1472-36W 36 10 4 14 1472-48W 48 10 4 20 ¹ UL Listed ² 2 Door Version       © Copyright 2008. Hammond Manufacturing Ltd. All rights reserved. Go Back a Page | Top of Page | Home | Contact Webmaster | Contact Us
