Suspension Systems - NEMA 12, 13
Tara Plus Suspension System |
| << Product Information << Operator Interface << |
|
|
| Application |
|

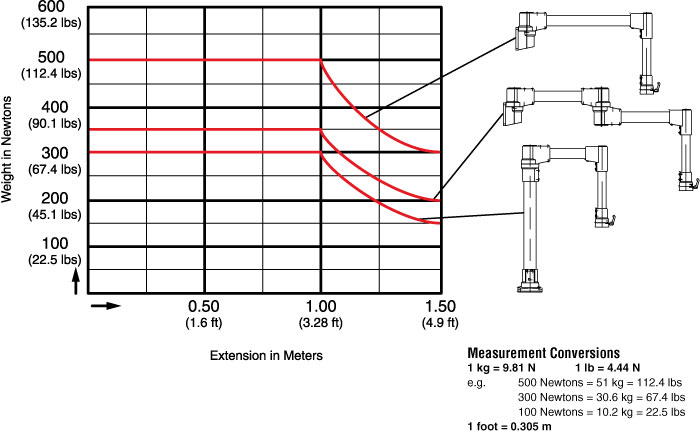

- Taraplus enclosure suspension systems are designed for light and medium loads.
- The strength of tube and cast fittings provide a highly flexible robust system.
Standards
Construction
- Enclosure coupling and elbow coupling fittings are die-cast from G AL SI 12 aluminum.
- Suspension tubing is steel.
Finish
- Fittings are finished in RAL 7040 window gray.
- Suspension tubing is RAL 7035 light gray.
|
| |
| |
|
|
Back to Top |
|
| Suspension Tube |
|
| Part No. |
Outside
mm |
Inside
mm |
Tolerance |
Length |
ShipWt.
lbs |
| Metres |
Feet |
Round Tubes |
|
|
|
|
|
R144-301-000 |
48 |
40 |
±0.25 |
1 |
3.28 |
10 |
R144-321-000 |
70 |
62 |
±0.25 |
1 |
3.28 |
25 |
R144-321-500 |
70 |
62 |
±0.25 |
1.5 |
4.92 |
38 |
|
|
|
|
|
|
|
Rectangular Tubes |
|
|
|
|
|
R144-311-000 |
60 x 40 |
54 x 34 |
±0.50 |
1 |
3.28 |
13 |
R144-311-500 |
60 x 40 |
54 x 34 |
±0.50 |
1.5 |
4.92 |
26 |
|
| |
| |
|
| |
Back to Top |
|

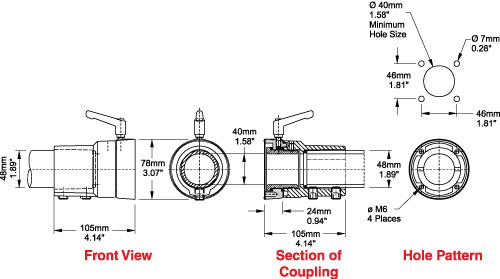

| Coupling |
|
- Attaches to enclosure.
- Accepts 48mm round tube. perpendicular to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Adjustable torque resistance.
- Rotates 300°.
|
| |
|
|
| |
Back to Top |
|

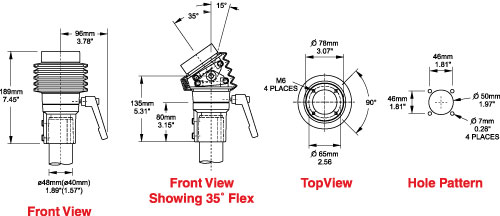

| Tilt Coupling |
|
- Attaches to enclosure.
- Accepts 48mm round tube perpendicular to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Features an adjustable tilt mechanism up to 35°.
|
| |
|
|
| |
Back to Top |
|

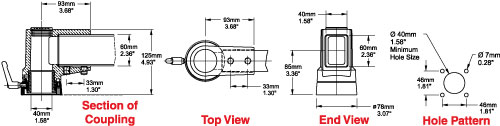

| Elbow Coupling |
|
- Attaches to enclosure.
- Accepts 60x40mm rectangular tube parallel to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Adjustable torque resistance.
- Rotates 300°.
- Accessible from the top.
|
| |
|
|
| |
Back to Top |
|

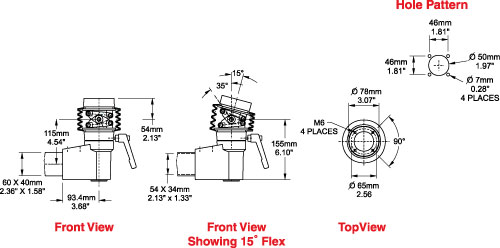

| Tilt Elbow Coupling |
|
- Attaches to enclosure.
- Accepts 60x40mm rectangular tube parallel to enclosure top/bottom.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Features an adjustable tilt. mechanism up to 35°.
|
| |
|
|
| |
Back to Top |
|

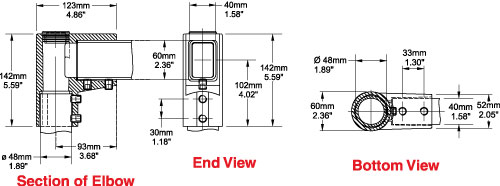

| Fixed Elbow 48 |
|
- For use with 48mm round tube and 60x40mm rectangular tube.
- Vertical 48mm tube connection for use with Couplings only (not Base 48).
- Die-cast Aluminum G Al Si 12.
- Large cover opening for easier cable pull through.
- No rotation.
- Accessible from the top.
|
| |
|
|
| |
Back to Top |
|

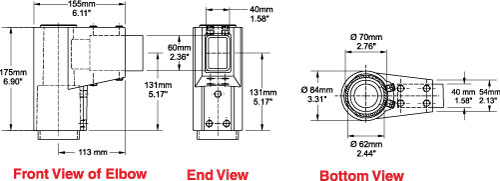

| Fixed Elbow 70 |
|
- For use with 70mm round tube and 60x40mm rectangular tube.
- Die-cast Aluminum G Al Si 12.
- No rotation.
- Accessible from the top.
|
| |
|
|
| |
Back to Top |
|

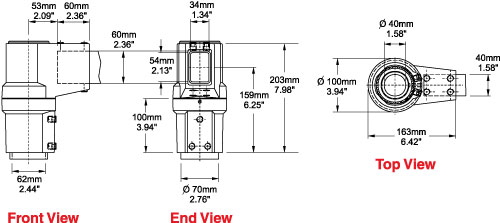

| Rotating Elbow |
|
- For use with 70mm round tube and 60x40mm rectangular tube.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Accessible from the top.
|
| |
|
|
| |
Back to Top |
|

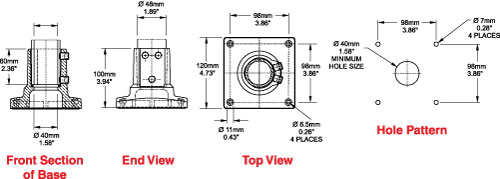

| Base 48 |
|
- For use with 48mm round tube.
- Not for use with any horizontal configurations.
- Compatible with tube up or tube down configurations.
- Die-cast Aluminum G Al Si 12.
- No rotation.
|
| |
|
|
| |
Back to Top |
|

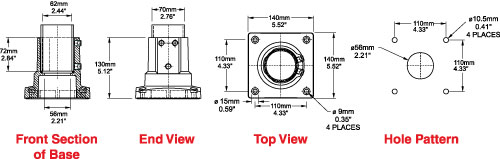

| Base 70 |
|
- For use with 70 mm tube.
- Compatible with all vertical and horizontal configurations.
- Compatible with tube up or tube down configurations.
- Die-cast Aluminum G Al Si 12.
- No rotation.
|
| |
|
|
| |
Back to Top |
|

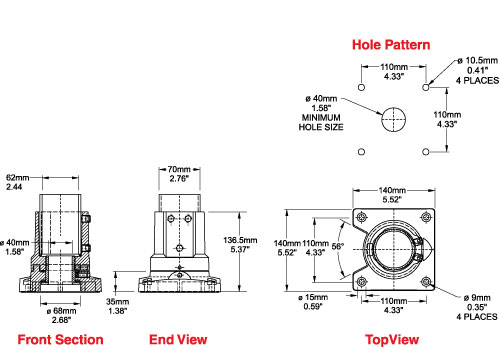

| Rotating Base 70 |
|
- For use with 70 mm tube.
- Compatible with all vertical and horizontal configurations.
- Compatible with tube up or tube down configurations.
- Die-cast Aluminum G Al Si 12.
- Rotates 300°.
- Integrated movement stop.
- Service free bearings.
|
| |
|
|
| |
Back to Top |
|

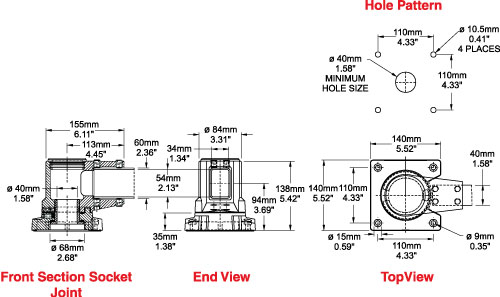

| Socket Joint |
|
- Accepts 60x40mm rectangular tube parallel to its mounting surface.
- Die-cast Aluminum G Al Si 12.
- Integrated movement stop.
- Service free bearings.
- Rotates 300°.
- Adjustment screws (red screws).
- Accessible from the top.
|
| |
|
|
| |
Back to Top |
|

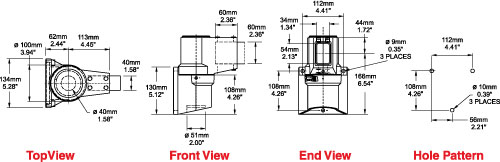

| Wall Joint |
|
- Accepts 60x40mm rectangular tube perpendicular to its mounting surface.
- Die-cast Aluminum G Al Si 12.
- Rotates 186°.
- Accessible from the top.
|
| |
|
|
| |
Back to Top |
|

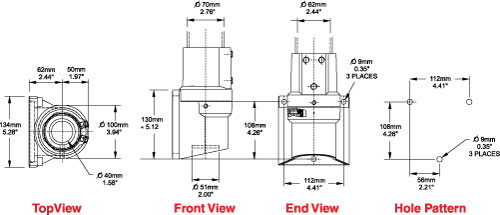

| Vertical Wall Joint |
|
- Accepts 70mm tube parallel to its mounting surface.
- Die-cast Aluminum G Al Si 12.
- Rotates 316°.
|
| |
|
|
| |
Back to Top |
|

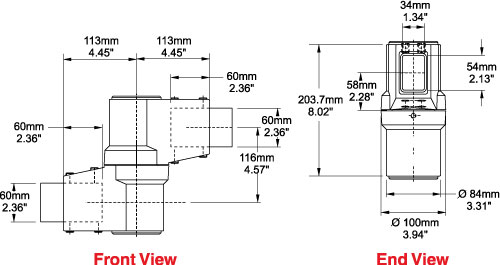

| Intermediate Joint |
|
- Accepts 60x40mm rectangular tube.
- Die-cast Aluminum G Al Si 12.
- Integrated movement stop.
- One piece bellow.
- Rotates 300°.
|
| |
|
|
| |
