Suspension Systems - NEMA 12, 13
Heavy Duty 50 mm or 80 mm
<< Product Information << Operator Interface <<
Quick Links:


Download PDF

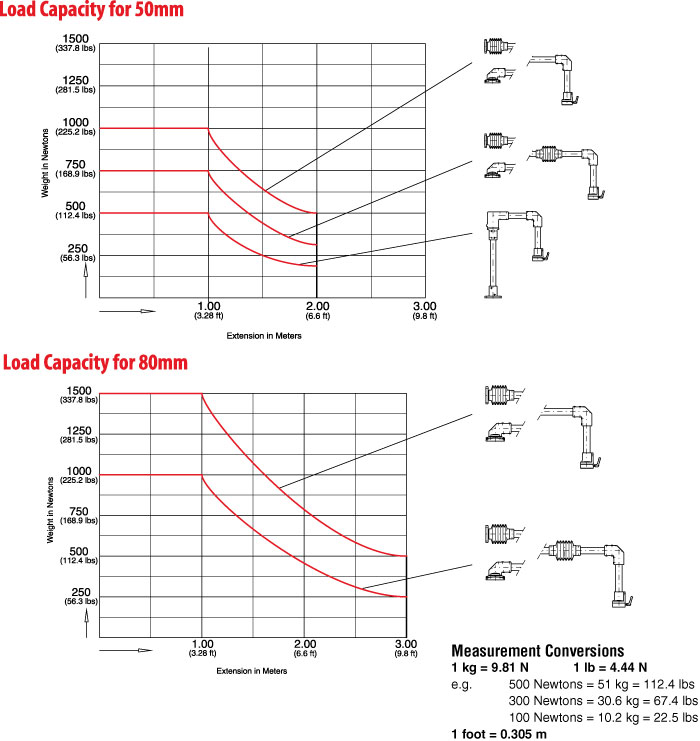

Application
  • Command 50mm and 80mm enclosure suspension systems are designed for medium and heavy loads.
  • The strength of square tube and cast fittings provide a highly flexible, robust system.

Standards

  • Complies with
    • IEC 60529 IP54

Construction

  • Enclosure coupling and elbow coupling fittings are die-cast from G AI Si 12 aluminum.
  • All other fittings are die-cast 4G-s.g. iron.
  • Suspension tubing is steel.

Finish

  • Fittings are finished in RAL 7040 window gray powder coating.
  • Suspension tubing is RAL 7035 light gray powder coating.


Back to Top
Suspension Tube
Part No. Outside Inside Length Ship
mm mm Tolerance Metres Feet Wt. lbs
R144-021-000R
 50 40 ±0.5 1 3.28 17
R144-022-000R
 Square 2 6.56 26
R144-041-000R
 80 70 ±0.6 1 3.28 21
R144-042-000R
 Square 2 6.56 33



Back to Top

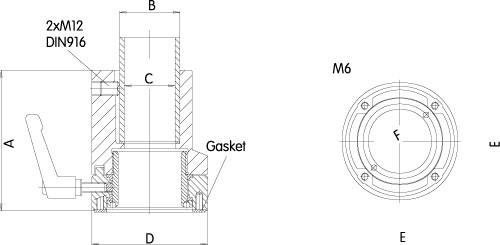

Enclosure Coupling
  • Cast aluminum.
  • Large thrust flange.
  • Fastens with 4 hex socket screws.
  • Adjustable torque resistance.
  • Features a rotation range of 300°.

Part No. System A B C D E F Ship Wt.
lbs.
R147-025-000R
 in 50 4.53 1.97 1.65 3.78 2.28 2.06 3
mm 115 50 42 96 58 52.3
R147-025-200R
 in 80 5.71 3.15 2.83 5.47 3.42 3.35 7
mm 145 80 72 139 87 85


Back to Top

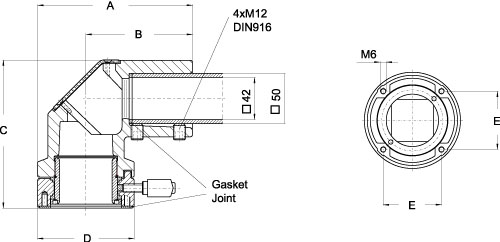

Elbow Coupling
  • Cast Aluminum
  • Large thrust flange.
  • Fastens with 4 hex socket screws.
  • Adjustable torque resistance.
  • Features a rotation range of 300°.

Part No. System A B C D E Ship Wt.
lbs.
R147-035-000R
 in 50 6.06 4.17 5.79 3.78 2.28 5
mm 154 106 147 96 58
R147-035-200R
 in 80 8.21 5.47 7.48 5.47 3.43 15
mm 208.5 139 190 139 87


Back to Top

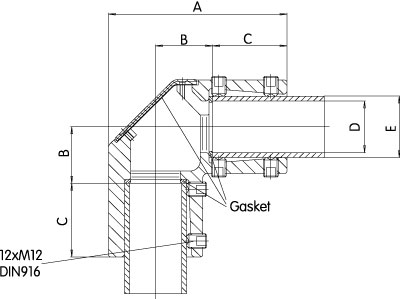

Elbow
  • Cast Aluminum
  • Large cover opening for easier cable pull through.

Part No. System A B C D E Ship Wt.
lbs.
R147-020-000R
 in 50 5.67 1.81 2.36 1.65 1.97 3
mm 144 46 60 42 50
R147-020-200R
 in 80 7.60 2.20 3.27 2.76 3.15 6
mm 193 56 83 70 80


Back to Top

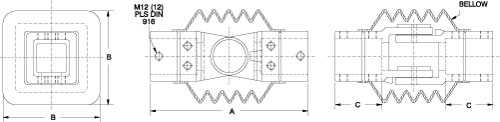

Intermediate Joint
  • 4G-s.g. cast iron.
  • Integrated movement stop.
  • One piece bellow.
  • Two sleeves.
  • Features a rotation range of 170°.

Part No. System A B C Ship Wt.
lbs.
R147-015-000R
 in 50 9.29 5.51 2.76 9
mm 236 140 70
R147-015-200R
 in 80 12.60 7.09 3.82 24
mm 320 180 97


Back to Top

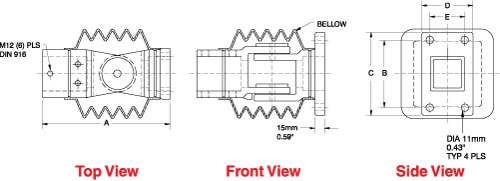

Wall Joint
  • 4G-s.g. cast iron.
  • Integrated movement stop.
  • One piece bellow.
  • Two sleeves.
  • Features a rotation range of 170°.

Part No. System A B C D E Ship Wt.
lbs.
R147-010-000R
 in 50 7.87 4.13 5.12 3.15 2.17 9
mm 200 105 130 80 55
R147-010-200R
 in 80 10.83 5.91 6.89 4.53 3.54 20
mm 275 150 175 115 90


Back to Top

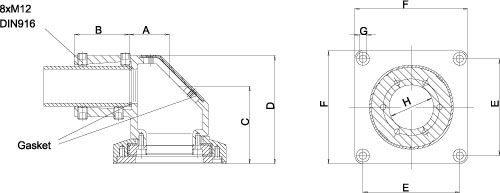

Socket Joint
  • Cast Aluminum.
  • Integrated movement stop.
  • Service free bearings.
  • Features a rotation range of 300°.
  • Can mount on top of machine or inverted.

Part No. System A B C D E F G H Ship Wt.
lbs.
R147-005-000R
 in 50 1.97 2.68 3.78 5.28 4.72 5.51 0.35 2.17 12
mm 50 68 96 134 120 140 9 55
R147-005-200R
 in 80 2.91 3.86 5.57 7.70 7.09 8.27 0.51 3.30 35
mm 74 98 141.5 195.5 180 210 13 84


Back to Top

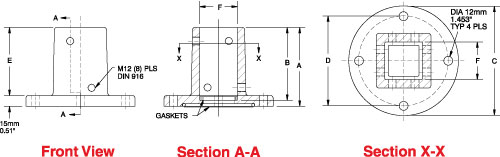

Cast Iron Base
  • 4G-s.g. cast iron.
  • Gasket included.
  • Does not rotate.

Part No. System A B C D E F Ship Wt.
lbs.
R147-030-000R
 in 50 4.33 3.94 5.98 4.92 3.74 1.97 7
mm 110 100 152 125 95 50
R147-030-200R
 in 80 5.51 5.12 7.87 6.81 4.92 3.15 15
mm 140 130 200 173 125 80


Back to Top

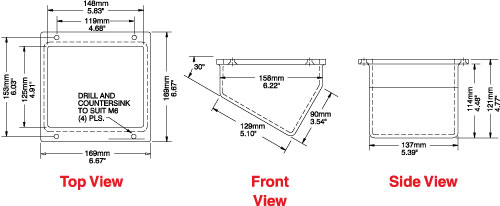

Slope Adaptor
  • Provides 30° or 60° incline by mounting to rear of enclosure.
  • Cast aluminum.

Part No. Ship Wt. lbs.
R140-045-000R
 8



Back to Top
