Pushbutton Enclosures - NEMA 12, 13
1435/1435M Series
<< Product Information << Operator Interface <<

Download PDF



Application
  • Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
  • Provides protection from dirt, dust, oil and water.
Standards
  • UL 508 Type 12 and 13
  • CSA Type 12 and 13
  • Complies with
    • NEMA Type 12 and 13
    • JIC standard EGP-1-1967
    • IEC 60529, IP54
  • Appropriate components are required to maintain these standards.
Construction
  • Formed 14 gauge steel except
  • A and B which are 16 gauge.
  • Smooth continuously welded seams.
  • Welded brackets provide for enclosure mounting.
  • Captive cover screws thread into sealed wells.
  • Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table).
  • Oil resistant gasket and adhesive.
  • A grounding stud is provided in the enclosure.
Finish
  • Cover and enclosure are phosphat­­ized and finished in ANSI 61 gray powder coating.
Accessories

Back to Top


Part No. No. of
Holes		 Overall Dimensions Ship
Wt. lbs.

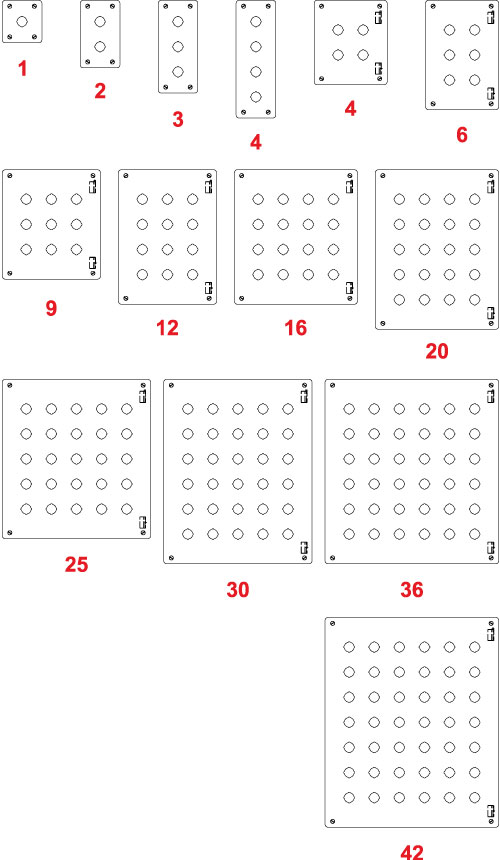

30.5mm 22.5mm A B C D E F G L W Z

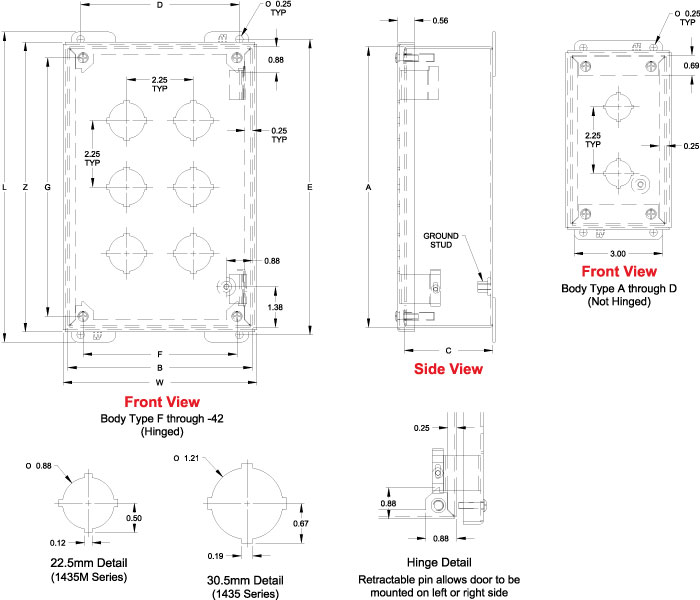

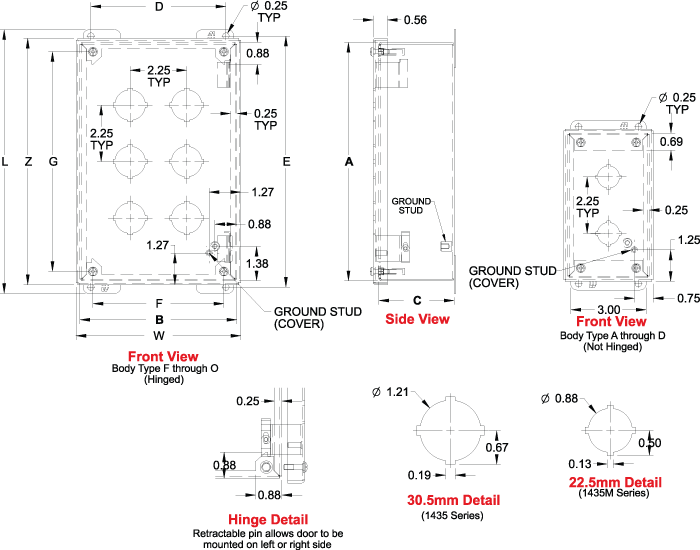

1435A¹ 1435MA¹ 1 3.50 3.25 2.75 2.38 4.00 2.21 2.75 4.5 3.56 3.81 2
1435B¹ 1435MB¹ 2 5.75 3.25 2.75 2.38 6.25 2.21 5.00 6.75 3.56 6.06 3
1435C¹ 1435MC¹ 3 8.00 3.25 2.75 2.38 8.50 2.21 7.25 9.00 3.56 8.31 3
1435D¹ 1435MD¹ 4 10.25 3.25 2.75 2.38 10.75 2.21 9.50 11.25 3.56 10.56 4
1435F 1435MF 4 7.25 6.25 3.00 5.38 7.75 5.21 6.50 8.25 6.56 7.56 5
1435H 1435MH 6 9.50 6.25 3.00 5.38 10.00 5.21 8.75 10.50 6.56 9.81 6
1435K 1435MK 9 9.50 8.50 3.00 7.63 10.00 7.46 8.75 10.50 8.81 9.81 7
1435O 1435MO 12 11.75 8.50 3.00 7.63 12.25 7.46 11.00 12.75 8.81 12.06 8
1435S 1435MS 16 11.75 10.75 3.00 9.88 12.25 9.71 11.00 12.75 11.06 12.06 10
1435V 1435MV 20 14.00 10.75 3.00 9.88 14.50 9.71 13.25 15.00 11.06 14.31 11
1435X 1435MX 25 14.00 13.00 3.00 12.13 14.50 11.96 13.25 15.00 13.31 14.31 12
1435-30 1435M-30 30 16.25 13.00 3.00 12.13 16.75 11.96 15.50 17.25 13.31 16.56 14
1435-36 1435M-36 36 16.25 15.25 3.00 14.38 16.75 14.21 15.50 17.25 15.56 16.56 16
1435-42 1435M-42 42 18.50 15.25 3.00 14.38 19.00 14.21 17.75 19.50 15.56 18.81 18
¹ Not Hinged
