Type 4, 4X Stainless Steel Pushbutton Enclosures 1435SS Series

Application

  • Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
  • Provides protection from dirt, dust, oil and large amounts of water from any angle, or where highly corrosive conditions exist.

Standards

  • UL 508A Type 4 and 4X
  • CSA Type 4 and 4X
  • Complies with
    • NEMA Type 3R, 4 and 4X
    • IEC 60529, IP66
  • Appropriate components are required to maintain these standards.

Construction

  • Formed 14 gauge stainless steel except sizes 1435*A and 1435*B which are 16 gauge.
  • 304 or 316 SS.
  • Smooth continuously welded seams.
  • Welded brackets provide for enclosure mounting.
  • Captive stainless steel cover screws thread into sealed wells.
  • Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring.
  • Oil resistant gasket.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Finish

  • Natural stainless steel with a smooth brushed finish.

Accessories

Gallery Image

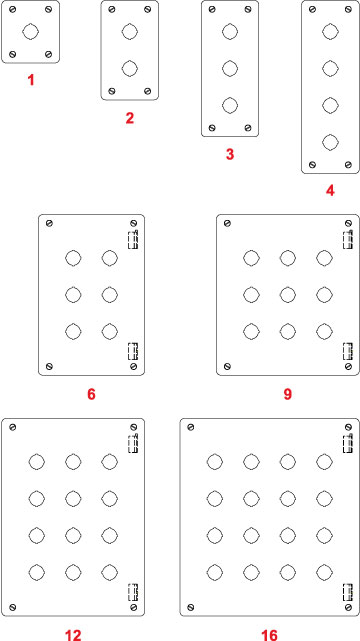

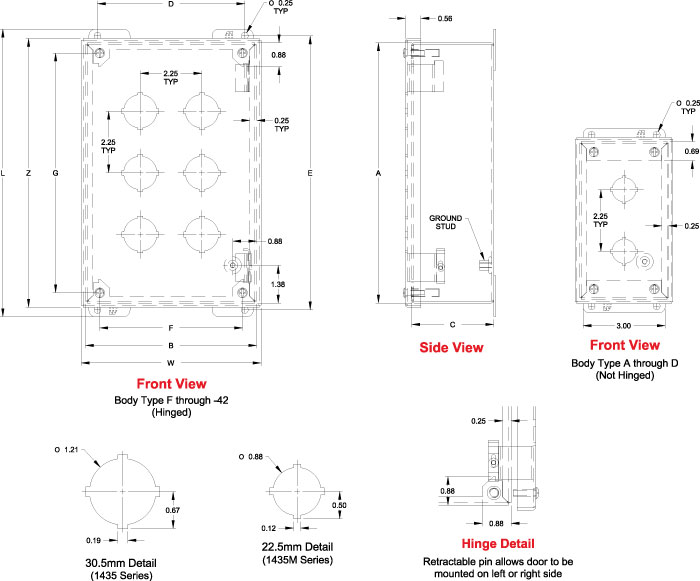

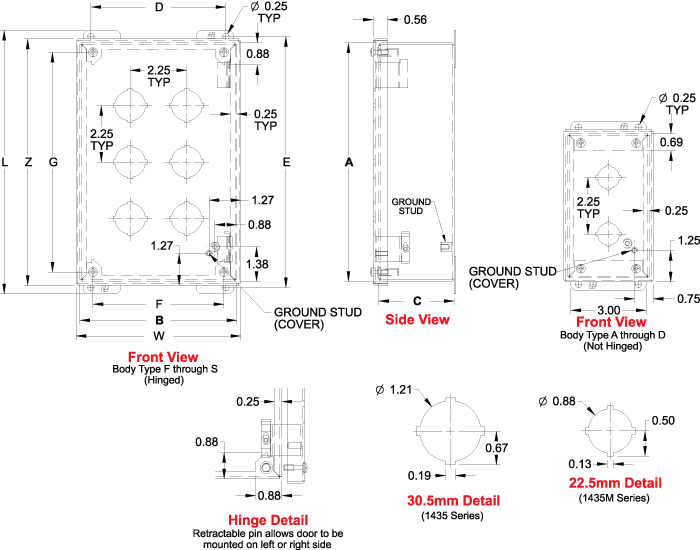

304 S.S. 304 S.S. 316 S.S. 316 S.S. No.
22.5mm PB 30.5mm PB 22.5mm PB 30.5mm PB Of Enclosure
Part No. Part No. Part No. Part No. Holes H W D
1435MSSA¹ 1435SSA¹ 1435MS16A¹ 1435S16A¹ 1 3.50 3.25 2.75
1435MSSB¹ 1435SSB¹ 1435MS16B¹ 1435S16B¹ 2 5.75 3.25 2.75
1435MSSC¹ 1435SSC¹ 1435MS16C¹ 1435S16C¹ 3 8.00 3.25 2.75
1435MSSD¹ 1435SSD¹ 1435MS16D¹ 1435S16D¹ 4 10.25 3.25 2.75
1435MSSH 1435SSH 1435MS16H 1435S16H 6 9.50 6.25 3.00
1435MSSK 1435SSK 1435MS16K 1435S16K 9 9.50 8.50 3.00
1435MSSO 1435SSO 1435MS16O 1435S16O 12 11.75 8.50 3.00
