Pushbutton Enclosures - NEMA 4, 4X
1437 Stainless Steel Series |
| << Product Information << Operator Interface << |
|
| Application |
|
- Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- Provides protection from dirt, dust, oil and water.
|
| Standards |
|
- UL 508 Type 4 and 4X
- CSA Enclosure 4 and 4X
- Complies with
- NEMA Type 4 and 4X
- IEC 60529, IP66
- JIC STD EGP-1-1967
- Appropriate components are required to maintain these standards.
|
| Construction |
|
- Formed from 14 gauge steel except A which is 16 gauge.
- Smooth continuously welded seams.
- Welded brackets provide for enclosure mounting.
- Captive cover screws fasten into threaded, sealed wells.
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table).
- Oil resistant gasket and adhesive.
- A grounding stud is provided in the enclosure.
|
| Finish |
|
- Natural stainless steel with a smooth brushed finish.
|
| Accessories |
|
|
| |
|
| Back to Top |
|
|
|
| Part No. |

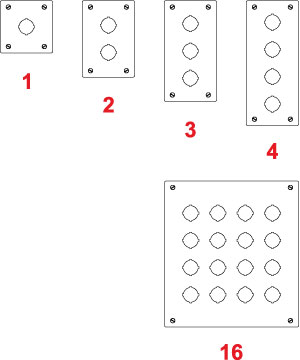

No. Of
Holes |
|
|
|
|
|
|

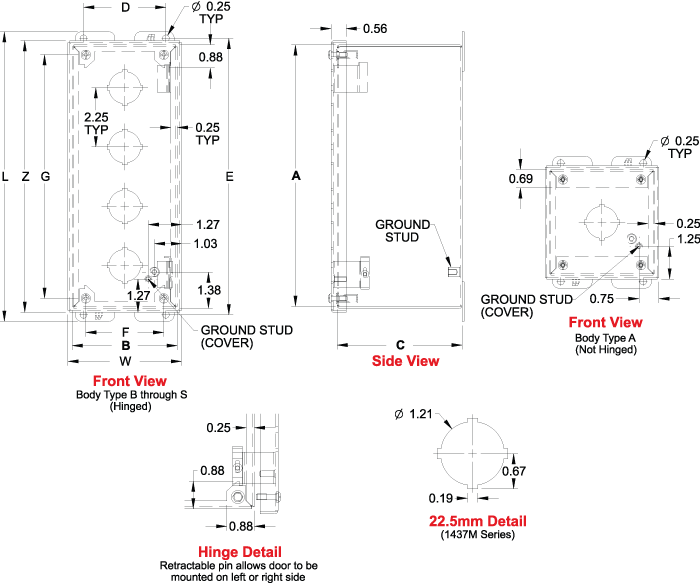

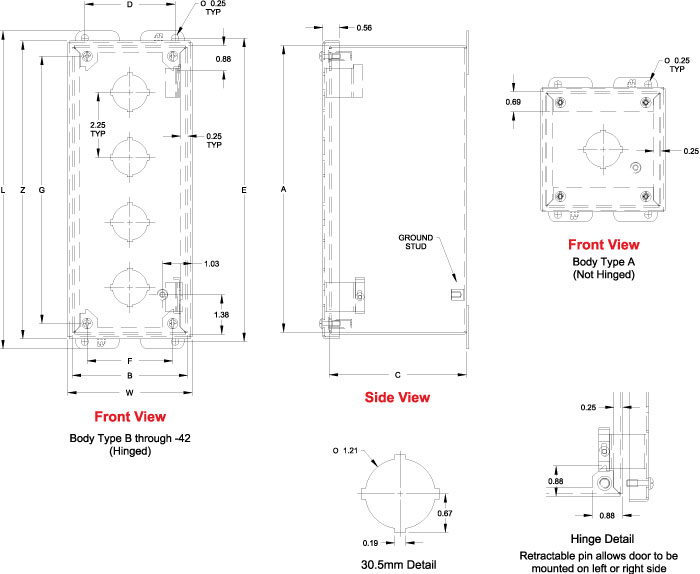

Overall Dimensions |
Ship
Wt.
lbs. |
| 304 SS 30.5mm |
316 SS 30.5mm |
A |
B |
C |
D |
E |
F |
G |
L |
W |
Z |
| 1437SSA¹ |
1437S16A¹ |
1 |
4.00 |
4.00 |
4.75 |
3.13 |
4.50 |
2.96 |
3.25 |
5.00 |
4.31 |
4.31 |
3 |
| 1437SSB |
1437S16B |
2 |
6.00 |
4.00 |
4.75 |
3.13 |
6.50 |
2.96 |
5.25 |
7.00 |
4.31 |
6.31 |
4 |
| 1437SSC |
1437S16C |
3 |
8.00 |
4.00 |
4.75 |
3.13 |
8.50 |
2.96 |
7.25 |
9.00 |
4.31 |
8.31 |
5 |
| 1437SSD |
1437S16D |
4 |
10.00 |
4.00 |
4.75 |
3.13 |
10.50 |
2.96 |
9.25 |
11.00 |
4.31 |
10.31 |
5 |
| 1437SSS |
1437S16S |
16 |
11.75 |
10.75 |
4.75 |
9.88 |
12.25 |
9.71 |
11.00 |
12.75 |
11.06 |
12.06 |
10 |
¹ Not Hinged
|
| |
|
