Polyester Modular Enclosures - NEMA 4, 4X
PJ Series - Solid Cover & Inline Pushbutton Enclosures, 22 mm and 30.5 mm |
| << Product Information << Operator Interface << |
|
| Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
|
| Standards |
|
- UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13
- IEC 60529, IP66
|
| Construction |
|
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Standard JIC sizes under 18" x 16".
- Threaded brass inserts are provided for optional inner panel.
- Cover is fastened with captive stainless steel screws in threaded brass inserts.
- Captive oil resistant gasket provides a positive seal.
- Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
- Enhanced UV inhibitors protect against outdoor weathering.
- Solid cover series available with and without mounting feet.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in Technical Information.
|
| Finish |
|
- Fiberglass polyester material has a gray finish.
- Optional steel inner panel is available in white powder coated finish.
|
| |
|
| Back to Top |
|
|
|

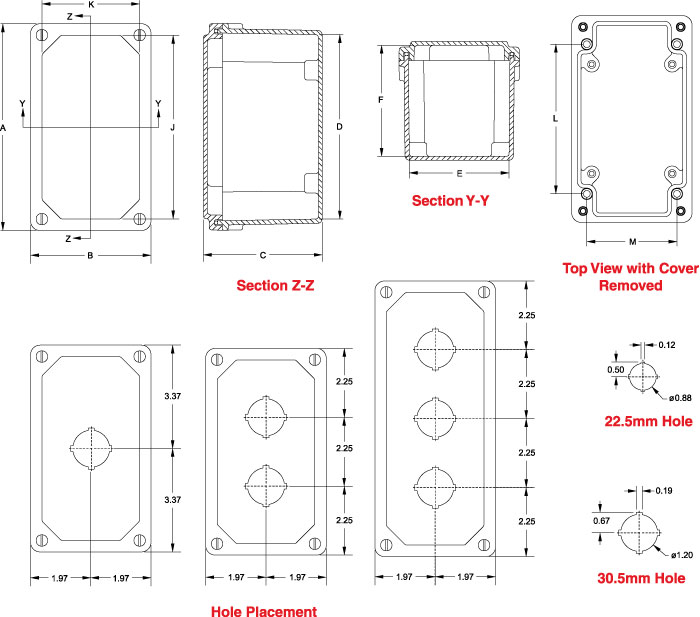

| Pushbutton Series |
| Part No. |
Overall Dimensions |
Inside Dimensions |
|
|
|
|
# of
Holes |
Hole
Size |
| A |
B |
C |
D |
E |
F |
J |
K |
L |
M |
| PJ744P1 |
6.74 |
3.93 |
3.88 |
6.01 |
3.26 |
3.63 |
5.99 |
3.18 |
4.88 |
2.94 |
1 |
30.5 |
| PJ744P221 |
6.74 |
3.93 |
3.88 |
6.01 |
3.26 |
3.63 |
5.99 |
3.18 |
4.88 |
2.94 |
1 |
22.5 |
| PJ744P2 |
6.74 |
3.93 |
3.88 |
6.01 |
3.26 |
3.63 |
5.99 |
3.18 |
4.88 |
2.94 |
2 |
30.5 |
| PJ744P222 |
6.74 |
3.93 |
3.88 |
6.01 |
3.26 |
3.63 |
5.99 |
3.18 |
4.88 |
2.94 |
2 |
22.5 |
| PJ944P3 |
8.99 |
3.93 |
3.88 |
8.26 |
3.26 |
3.63 |
8.24 |
3.18 |
7.13 |
2.94 |
3 |
30.5 |
| PJ944P223 |
8.99 |
3.93 |
3.88 |
8.26 |
3.26 |
3.63 |
8.24 |
3.18 |
7.13 |
2.94 |
3 |
22.5 |
|
| |
| Solid Cover Series |
| Part No. |
Mounting
Feet |
Overall Dimensions |
Inside Dimensions |
|
|
|
|
Optional Steel
Inner Panel |
Inner Panel
Dimentions |
| A |
B |
C |
D |
E |
F |
J |
K |
L |
M |
| PJ744 |
Yes |
6.74 |
3.93 |
3.88 |
6.01 |
3.26 |
3.63 |
5.99 |
3.18 |
4.88 |
2.94 |
PJP74 |
4 x 3.13 |
| PJ744FS |
No |
6.74 |
3.93 |
3.88 |
6.01 |
3.26 |
3.63 |
5.99 |
3.18 |
4.88 |
2.94 |
PJP74 |
4 x 3.13 |
| PJ944 |
Yes |
8.99 |
3.93 |
3.88 |
8.26 |
3.26 |
3.63 |
8.24 |
3.18 |
7.13 |
2.94 |
PJP94 |
6.25 x 3.13 |
| PJ944FS |
No |
8.99 |
3.93 |
3.88 |
8.26 |
3.26 |
3.63 |
8.24 |
3.18 |
7.13 |
2.94 |
PJP94 |
6.25 x 3.13 |
|
|
| |
|
