1485 Series Lay-In Wireway
NEMA 12
<< Product Information << Wireway & Trough <<

Download PDF




Application
  • Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
  • All sections and fittings are completely open on each side to allow wires and cables to be placed into the wireway without “pulling through”.

Standards
  • UL 870 Type 1 (unless marked1)
  • CSA Type 1 (unless marked1)
  • Complies with
    • NEMA Type 12
    • JIC EMP-1-1967
    • JIC EGP-1-1967
    • IEC 60529, IP54

Construction
  • Bodies and covers are formed from 14-gauge steel with 10 gauge steel flanges.
  • 12” x 6” size has a 12 gauge steel body with a 14-gauge cover.
  • Smooth continuously welded seams.
  • Interior surfaces are smooth to prevent wire damage during
    installation.
  • Butt hinged cover is secured with easily operated quick release clamps.
  • Oil resistant gaskets are permanently secured.
  • Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
  • One gasket kit, complete with hardware is provided with each straight section or fitting.
  • Sealing plate is supplied.
  • Flange junctions are sealed with gasket sealing plates, which are put in place after wiring is completed. One is supplied with all straight sections and most fittings; see table for exact number.

Finish
  • Sections and components are finished in ANSI 61 gray powder coating.

Accessories


Back to Top

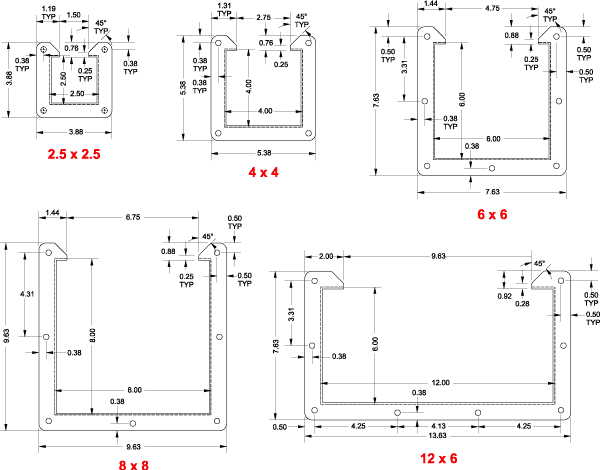

All unmarked diameters are 0.28
All unmarked radii are 0.38

Description Sealing
Plates
Supplied		 2.5 x 2.5
Part No.		 4 x 4
Part No.		 6 x 6
Part No.		 8 x 8
Part No.		 12 x 6
Part No.
6" Section 1 Flat 1485B6 1485C6 1485D6 1485E6 1485F6
12" Section 1 Flat 1485B12 1485C12 1485D12 1485E12 1485F12
24" Section 1 Flat 1485B24 1485C24 1485D24 1485E24 1485F24
36" Section 1 Flat 1485B36 1485C36 1485D36 1485E36 1485F36
48" Section 1 Flat 1485B48 1485C48 1485D48 1485E48 1485F48
60" Section 1 Flat 1485B60 1485C60 1485D60 1485E60 1485F60
120" Section 1 Flat 1485B120 1485C120 1485D120 1485E120 1485F120
60" Long Partition (Barrier) — — 1487CB60¹ 1487DB60¹ 1487EB60¹ 1487DB60¹
1" Nipple 1 Flat 1485BM1 1485CM1 1485DM1 — —
2" Nipple 1 Flat 1485BM2 1485CM2 1485DM2 — —
3" Nipple 1 Flat 1485BM3 1485CM3 1485DM3 — —
Box Entry Swivel Nipple 1 Angle 1485BV1 1485CV1 1485DV1 1485EV1 —
Standard Swivel Nipple 2 Angle 1485BV2 1485CV2 1485DV2 1485EV2 —
12" Transposition Clockwise 1 Flat 1485BZ12 1485CZ12 1485DZ12 1485EZ12 —
12" Transposition Counter-Clockwise 1 Flat 1485BZC12 1485CZC12 1485DZC12 1485EZC12 —
Flexible Fitting None 1485BFF 1485CFF 1485DFF 1485EFF —
Adjustable Fitting 1 Spec. 1485BX¹ 1485CX¹ 1485DX¹ 1485EX¹ 1485FX¹
Cut-Off Fitting Lay-In 1 Flat 1485BW1¹ 1485CW1¹ 1485DW1¹ 1485EW1¹ 1485FW1¹
Cut-Off Fitting Non Lay-In 1 Angle 1485BW2¹ 1485CW2¹ 1485DW2¹ 1485EW2¹ 1485FW2¹
90° Elbow, Top Opening 1 Flat 1485B9N 1485C9N 1485D9N 1485E9N 1485F9N
90° Elbow, Inside Opening 1 Flat 1485B9P 1485C9P 1485D9P 1485E9P 1485F9P
90° Elbow, Outside Opening 1 Flat 1485B9Q 1485C9Q 1485D9Q 1485E9Q 1485F9Q
45° Elbow, Top Opening 1 Flat 1485B4N 1485C4N 1485D4N 1485E4N 1485F4N
45° Elbow, Inside Opening 1 Flat 1485B4P 1485C4P 1485D4P 1485E4P —
45° Elbow, Outside Opening 1 Flat 1485B4Q 1485C4Q 1485D4Q 1485E4Q —
Tee Fitting, Top Opening 2 Flat 1485BTN 1485CTN 1485DTN 1485ETN 1485FTN
Tee Fitting, Outside & Top Opening 2 Flat 1485BTQ 1485CTQ 1485DTQ 1485ETQ —
Cross Fitting 3 Flat 1485BY 1485CY 1485DY 1485EY 1485FY
Reducer 4 x 4 to 2.5 x 2.5 None — 1485CRE — — —
Reducer 6 x 6 to 4 x 4 None — — 1485DRE — —
Reducer 8 x 8 to 6 x 6 None — — — 1485ERE —
Reducer 12 x 6 to 4 x 4 None — — — — 1485FREC
Reducer 12 x 6 to 6 x 6 None — — — — 1485FRED
Junction Box 1 Flat 1485BJ 1485CJ 1485DJ 1485EJ —
Box Connector 1 Angle 1485BK¹ 1485CK¹ 1485DK¹ 1485EK¹ 1485FK¹
Drop Hanger None 1485BL1¹ 1485CL1¹ 1485DL1¹ 1485EL1¹ —
Bracket Hanger None 1485BL2¹ 1485CL2¹ 1485DL2¹ 1485EL2¹ —
Cover Plate 1 Angle 1485BH² 1485CH² 1485DH² 1485EH² 1485FH²
Snap On Flat Sealing Plate None 1485BSM² 1485CSM² 1485DSM² 1485ESM² 1485FSM²
Angle Sealing Plate None 1485BS9² 1485CS9² 1485DS9² 1485ES9² 1485FS9²
