C-Box Screw Cover with Knockouts
NEMA 1
<< Product Information << Commercial Enclosures <<

Download PDF



Application
  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards
  • UL-50 Type 1
  • cUL Type 1
  • Complies with:
    • NEMA Type 1
    • IEC 60529, IP29

Construction
  • Formed and spot welded from 16 or 14 gauge steel depending on size.
  • Flat steel covers fastened with plated steel screws.
  • Keyhole slots permit cover to be lifted off without removing screws entirely.

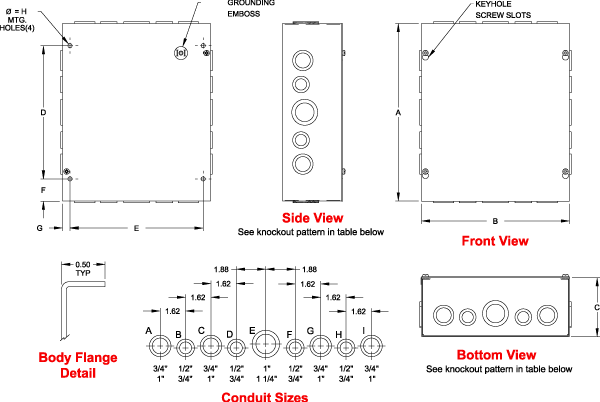

  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish
  • Enclosure and cover are finished in ANSI 61 gray powder coating.

Accessories
  • N/A


Back to Top

Part No. Overall
Dimensions		     Knockout Pattern Sides   Knockout Pattern
Top & Bottom		 Ship
Wt.
lbs.
A B C D E F G H
CSKO443 4 4 3 2 3 0.88 0.50 B - C 0.28 A - B 2
CSKO663 6 6 3 3 5 1.50 0.50 B-C-D 0.28 B-C-D 3
CSKO863 8 6 3 5 5 1.50 0.50 F-G-H-I 0.28 B-C-D 3
CSKO16143 16 14 3 13 13 1.50 0.50 B-C-D-E-F-G-H 0.28 B-C-D-E-F-G-H 12
CSKO18143 18 14 3 15 13 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 B-C-D-E-F-G-H 13
CSKO20143 20 14 3 17 13 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 B-C-D-E-F-G-H 13
CSKO444 4 4 4 2 3 0.88 0.50 B - C 0.28 A - B 2
CSKO644 6 4 4 3 3 1.50 0.50 B-C-D 0.28 A - B 3
CSKO664 6 6 4 3 5 1.50 0.50 B-C-D 0.28 B-C-D 3
CSKO864 8 6 4 5 5 1.50 0.50 F-G-H-I 0.28 B-C-D 5
CSKO884 8 8 4 5 7 1.50 0.50 F-G-H-I 0.28 F-G-H-I 5
CSKO1084 10 8 4 7 7 1.50 0.50 F-G-H-I 0.28 F-G-H-I 6
CSKO10104 10 10 4 7 9 1.50 0.50 F-G-H-I 0.28 C-D-E-F-G 6
CSKO1284 12 8 4 9 7 1.50 0.50 C-D-E-F-G 0.28 F-G-H-I 7
CSKO12104 12 10 4 9 9 1.50 0.50 C-D-E-F-G 0.28 C-D-E-F-G 8
CSKO12124 12 12 4 9 11 1.50 0.50 C-D-E-F-G 0.28 C-D-E-F-G 9
CSKO16124 16 12 4 13 11 1.50 0.50 B-C-D-E-F-G-H 0.28 C-D-E-F-G 12
CSKO18124 18 12 4 15 11 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 C-D-E-F-G 12
CSKO18184 18 18 4 15 17 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 A-B-C-D-E-F-G-H-I 16
CSKO24244 24 24 4 21 23 1.50 0.50 C-D-E-F-G 0.28 C-D-E-F-G 33
CSKO666 6 6 6 3 5 1.50 0.50 B-C-D 0.28 B-C-D 4
CSKO886 8 8 6 5 7 1.50 0.50 F-G-H-I 0.28 F-G-H-I 6
CSKO1086 10 8 6 7 7 1.50 0.50 F-G-H-I 0.28 F-G-H-I 7
CSKO10106 10 10 6 7 9 1.50 0.50 F-G-H-I 0.28 C-D-E-F-G 8
CSKO12106 12 10 6 9 9 1.50 0.50 C-D-E-F-G 0.28 C-D-E-F-G 9
CSKO12126 12 12 6 9 11 1.50 0.50 C-D-E-F-G 0.28 C-D-E-F-G 10
CSKO16126 16 12 6 13 11 1.50 0.50 B-C-D-E-F-G-H 0.28 C-D-E-F-G 13
CSKO16166 16 16 6 13 15 1.50 0.50 B-C-D-E-F-G-H 0.28 B-C-D-E-F-G-H 16
CSKO18126 18 12 6 15 11 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 C-D-E-F-G 14
CSKO18186 18 18 6 15 17 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 A-B-C-D-E-F-G-H-I 19
CSKO24186 24 18 6 21 17 1.50 0.50 A-B-C-D-E-F-G-H-I 0.28 A-B-C-D-E-F-G-H-I 26
CSKO24246 24 24 6 21 22.5 1.50 0.75 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 37
CSKO30246 30 24 6 27 22.5 1.50 0.75 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 45
CSKO36246 36 24 6 33 22.5 1.50 0.75 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 57
CSKO12128 12 12 8 9 11 1.50 0.50 C-D-E-F-G 0.28 C-D-E-F-G 12
CSKO16168 16 16 8 13 15 1.50 0.50 B-C-D-E-F-G-H 0.28 B-C-D-E-F-G-H 20
CSKO24248 24 24 8 21 22.5 1.50 0.75 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 44
CSKO202010 20 20 10 17 19 1.50 0.75 A-B-C-D-E-F-G-H-I 0.28 A-B-C-D-E-F-G-H-I 37
CSKO242410 24 24 10 21 22.5 1.50 0.50 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 52
CSKO302010 30 20 10 27 18.5 1.50 0.75 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 59
CSKO362410 36 24 10 33 22.5 1.50 0.75 A-B-C-D-E-F-G-H-I 0.44 A-B-C-D-E-F-G-H-I 75
