Splitter Boxes
NEMA 1 |
| << Product Information << Commercial Enclosures << |
|
| Application |
|
- The splitter boxes are designed for indoor distribution of up to 600 V (max) service using either 3 or 4 wires.
|
| |
| Standards |
- CSA Certified
- Complies with
|
| |
| Construction |
- Formed and spot welded from 14 or 16 gauge steel.
- Factory installed splitter blocks.
- Series of knockouts on each side.
- Padlocking hasp.
|
| |
| Finish |
- Enclosure and cover are finished in ANSI 61 gray powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
| Part No. (Click for DXF) |
CU/AL
Amps |
Dimensions |
Ship Wt.
lbs |
| 3 Wire |
4 Wire |
H |
W |
D |
| CSB73 |
CSB74 |
70/70 |
12 |
10 |
4 |
9 |
| CSB103 |
CSB104 |
125/120 |
15 |
10 |
4 |
10 |
| CSB203 |
CSB204 |
225/225 |
18 |
12 |
5 |
16 |
| CSB403 |
CSB404 |
400/340 |
24 |
17 |
6 |
37 |
| CSB603* |
CSB604* |
600/574 |
30 |
24 |
7 |
63 |
|
|
NOTE: Boxes without splitter blocks installed also available. |
| * 14 gauge steel |
| |

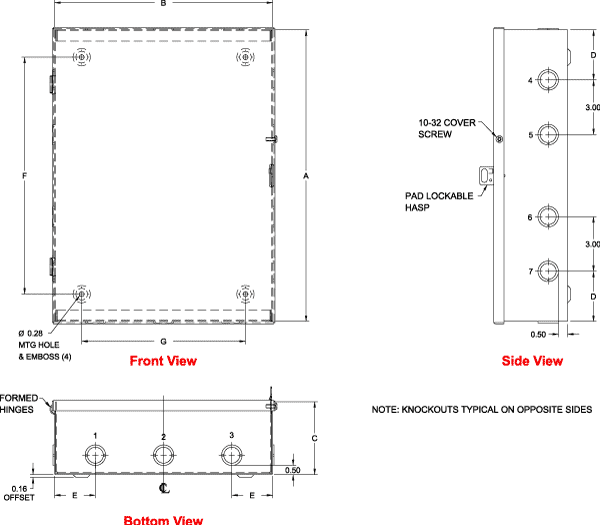

| Part No. (Click for DXF) |
Grounding
Kit
Optional |
CU/AL
Amps |
Dimensions |
|
Conduit Size (Location) |
| 3 Wire |
4 Wire |
A |
B |
C |
D |
E |
F |
G |
1/2”-3/4” |
3/4”-1” |
2”-2 1/2” |
| CSB73 |
CSB74 |
CGK125 |
70/70 |
12 |
10 |
4 |
2.75 |
2.25 |
9 |
7 |
1,3,7 |
2,4 |
- |
| CSB103 |
CSB104 |
CGK125 |
125/120 |
15 |
10 |
4 |
2.75 |
2.25 |
12 |
7 |
1,3,7 |
2,4 |
- |
| CSB203 |
CSB204 |
CGK225 |
225/225 |
18 |
12 |
5 |
3.00 |
3.50 |
15 |
9 |
1,3,7 |
4 |
1,3 |
| CSB403 |
CSB404 |
CGK400 |
400/340 |
24 |
17 |
6 |
3.31 |
4.88 |
21 |
14 |
- |
- |
- |
| CSB603* |
CSB604* |
CGK600 |
600/574 |
30 |
24 |
7 |
4.00 |
5.00 |
27 |
21 |
- |
- |
- |
* 14 gauge steel |
|
| |
|
)
