Splitter Boxes
NEMA 3R, 12, 4 |
| << Product Information << Commercial Enclosures << |
|
| Application |
|
- The splitter boxes are designed for distribution of up to 600 V (max) service using either 3 or 4 wires.
|
| |
| Standards |
- CSA Certified Type 3R, 12, 4
- Complies with
|
| |
| Construction |
- Formed 14 and 16 gauge steel.
- Factory installed splitter blocks.
- Smooth, continuously welded seams ground smooth.
- Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- Doors may be easily removed for modifications and are interchangeable.
- Oil resistant gaskets are permanently secured.
- Collar studs provided for mounting inner panel.
- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- Hinges are constructed from 304 stainless steel.
- Hinge pins are stainless steel.
- Inner panel is included.
|
| |
| Finish |
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- Inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
| Part Number |
Door/
Body
Gauge |
Optional
Grounding
Kit |
CU/AL
Amps |
Dimensions |
|
# of
Latches |
# of
Hinges |
| 3 Wire |
4 Wire |

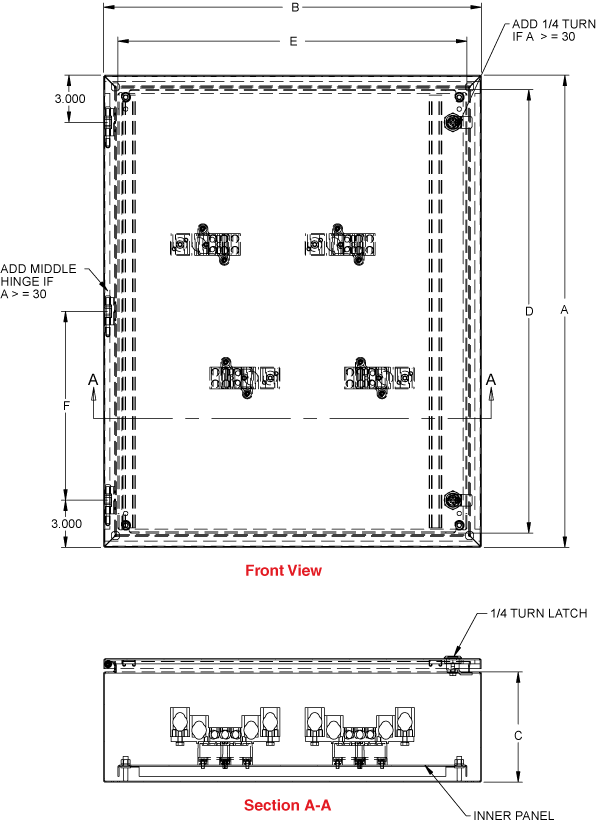

A |
B |
C |
D |
E |
F |
| CN4SB73 |
CN4SB74 |
16 |
CGK125 |
70/70 |
12 |
10 |
5 |
10.17 |
8.17 |
N/A |
1 |
2 |
| CN4SB103 |
CN4SB104 |
16 |
CGK125 |
125/120 |
15 |
10 |
5 |
13.17 |
8.17 |
N/A |
1 |
2 |
| CN4SB203 |
CN4SB204 |
16 |
CGK225 |
225/225 |
18 |
12 |
5 |
16.17 |
10.17 |
N/A |
1 |
2 |
| CN4SB403 |
CN4SB404 |
16 |
CGK400 |
400/340 |
24 |
17 |
6 |
22.17 |
15.17 |
N/A |
1 |
2 |
| CN4SB603 |
CN4SB604 |
14 |
CGK600 |
600/574 |
30 |
24 |
7 |
28.17 |
22.17 |
12.00 |
2 |
3 |
* 14 gauge steel |
| |
|
