Splitter Troughs
NEMA 3R, 12, 4 |
| << Product Information << Commercial Enclosures << |
|
| Application |
|
- The splitter boxes are designed for distribution of up to 600 V (max) service using either 3 or 4 wires.
|
| |
| Standards |
- CSA Certified Type 3R, 12, 4
- Complies with
|
| |
| Construction |
- Formed 14 and 16 gauge steel.
- Factory installed splitter blocks.
- Smooth, continuously welded seams ground smooth.
- Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- Doors may be easily removed for modifications and are interchangeable.
- Oil resistant gaskets are permanently secured.
- Collar studs provided for mounting inner panel.
- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- Hinges are constructed from 304 stainless steel.
- Hinge pins are stainless steel.
- Inner panel is included.
|
| |
| Finish |
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- Inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
| Part No. |
Gauge |
Optional
Grounding
Kit |
CU/AL
Amps |

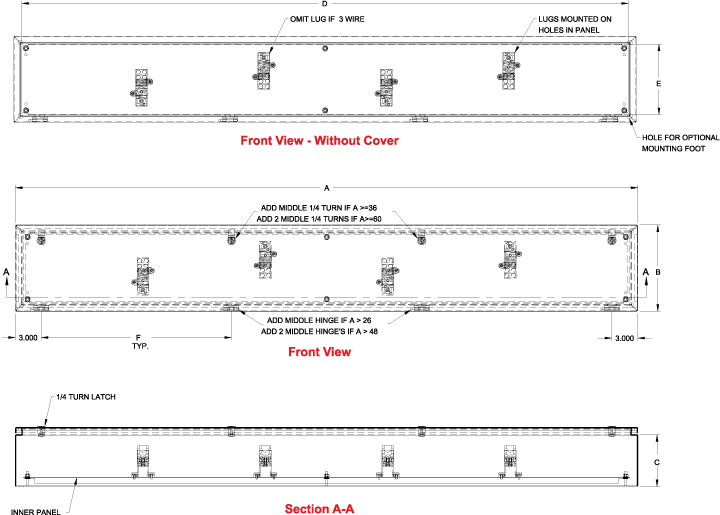

Dimensions |
|
No. of
Latches |
No. of
Hinges |
| 3 Wire |
4 Wire |
A |
B |
C |
D |
E |
F |
| CN4ST273 |
CN4ST274 |
16 |
CGK225 |
70/70 |
24 |
6 |
5 |
22.17 |
4.17 |
N/A |
2 |
2 |
| CN4ST373 |
CN4ST374 |
16 |
CGK225 |
70/70 |
36 |
6 |
5 |
34.17 |
4.17 |
15 |
2 |
3 |
| CN4ST473 |
CN4ST474 |
16 |
CGK225 |
70/70 |
48 |
6 |
5 |
46.17 |
4.17 |
15 |
3 |
3 |
| CN4ST2103 |
CN4ST2104 |
16 |
CGK225 |
125/120 |
24 |
6 |
5 |
22.17 |
4.17 |
N/A |
2 |
2 |
| CN4ST3103 |
CN4ST3104 |
16 |
CGK225 |
125/120 |
36 |
6 |
5 |
34.17 |
4.17 |
15 |
2 |
3 |
| CN4ST4103 |
CN4ST4104 |
16 |
CGK225 |
125/120 |
48 |
6 |
5 |
46.17 |
4.17 |
21 |
3 |
3 |
| CN4ST6103 |
CN4ST6104 |
14 |
CGK225 |
125/120 |
72 |
8 |
6 |
70.17 |
6.17 |
21 |
4 |
4 |
| CN4ST2203 |
- |
14 |
CGK225 |
225/225 |
24 |
8 |
5 |
22.17 |
6.17 |
N/A |
2 |
2 |
| CN4ST3203 |
CN4ST3204 |
14 |
CGK225 |
225/225 |
36 |
8 |
6 |
34.17 |
6.17 |
15 |
2 |
3 |
| CN4ST4203 |
CN4ST4204 |
14 |
CGK225 |
225/225 |
48 |
8 |
6 |
46.17 |
6.17 |
21 |
3 |
3 |
| CN4ST5203 |
CN4ST5204 |
14 |
CGK225 |
225/225 |
60 |
8 |
6 |
58.17 |
6.17 |
18 |
4 |
4 |
| CN4ST6203 |
CN4ST6204 |
14 |
CGK225 |
225/225 |
72 |
8 |
6 |
70.17 |
6.17 |
22 |
4 |
4 |
| CN4ST3403 |
- |
14 |
CGK400 |
400/340 |
36 |
10 |
6 |
34.17 |
8.17 |
15 |
2 |
3 |
| CN4ST4403 |
CN4ST4404 |
14 |
CGK400 |
400/340 |
48 |
10 |
6 |
46.17 |
8.17 |
21 |
3 |
3 |
| CN4ST5403 |
CN4ST5404 |
14 |
CGK400 |
400/340 |
60 |
10 |
6 |
58.17 |
8.17 |
21 |
4 |
4 |
| CN4ST6403 |
CN4ST6404 |
14 |
CGK400 |
400/340 |
72 |
10 |
6 |
70.17 |
8.17 |
22 |
4 |
4 |
| CN4ST4603 |
CN4ST4604 |
14 |
CGK400 |
600/574 |
48 |
10 |
6 |
46.17 |
8.17 |
21 |
3 |
3 |
| CN4ST5603 |
CN4ST5604 |
14 |
CGK400 |
600/574 |
60 |
10 |
6 |
58.17 |
8.17 |
18 |
4 |
4 |
| CN4ST6603 |
CN4ST6604 |
14 |
CGK400 |
600/574 |
72 |
10 |
6 |
70.17 |
8.17 |
22 |
4 |
4 |
|
| |
|
)
